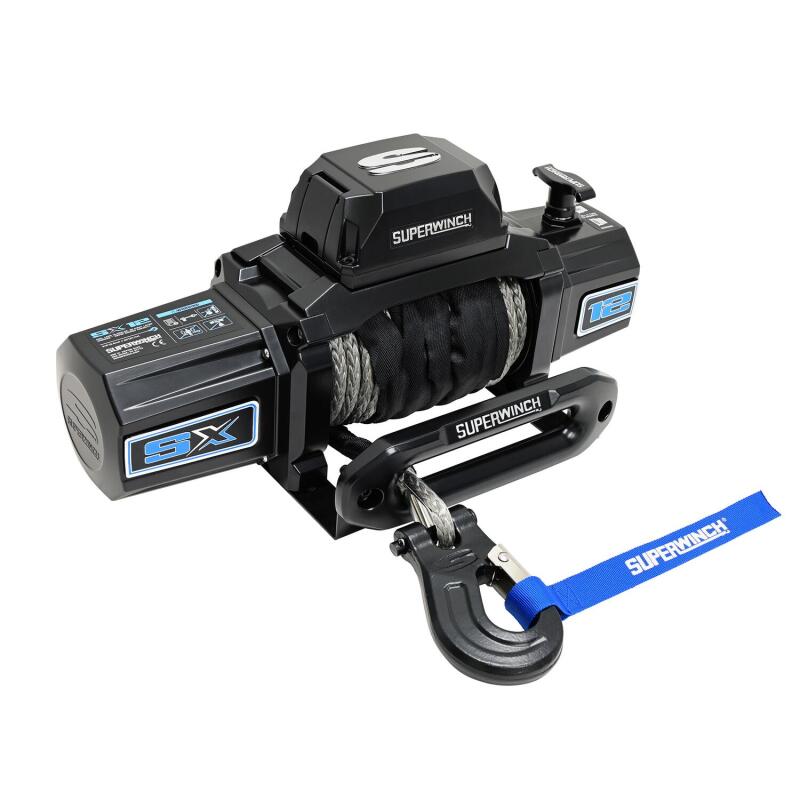

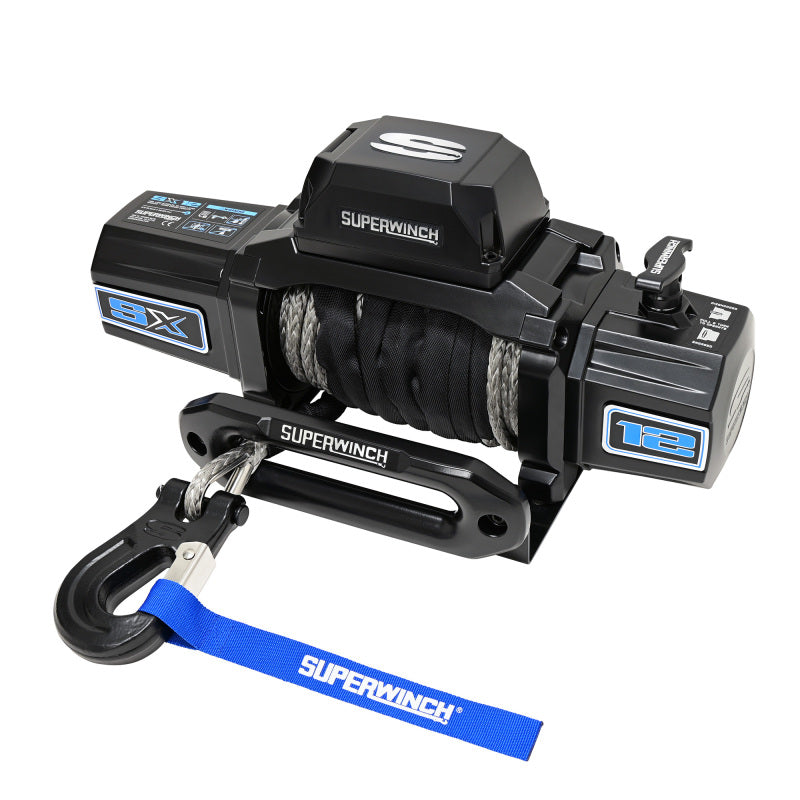

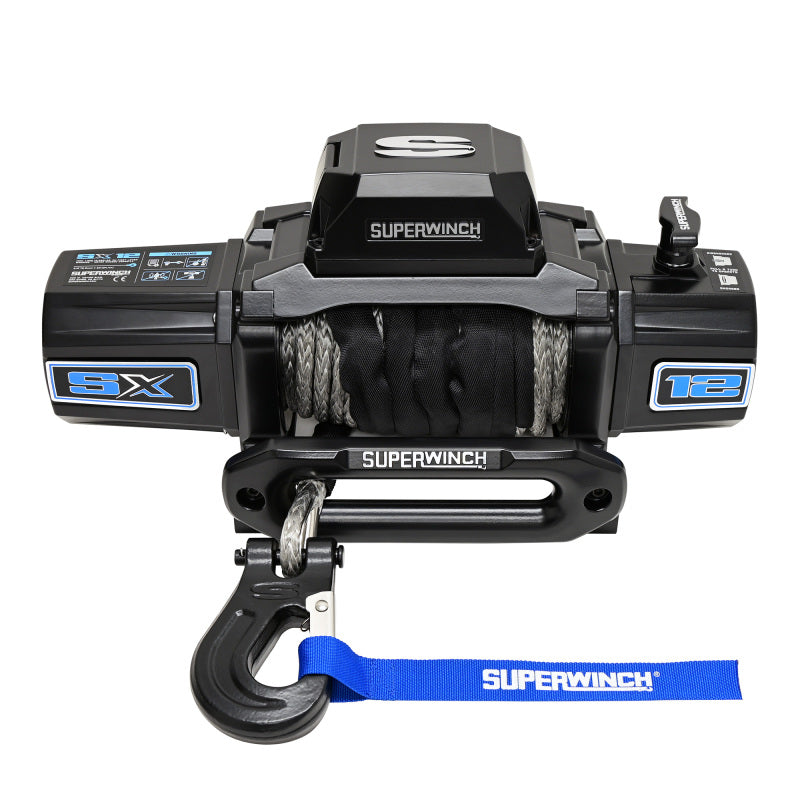

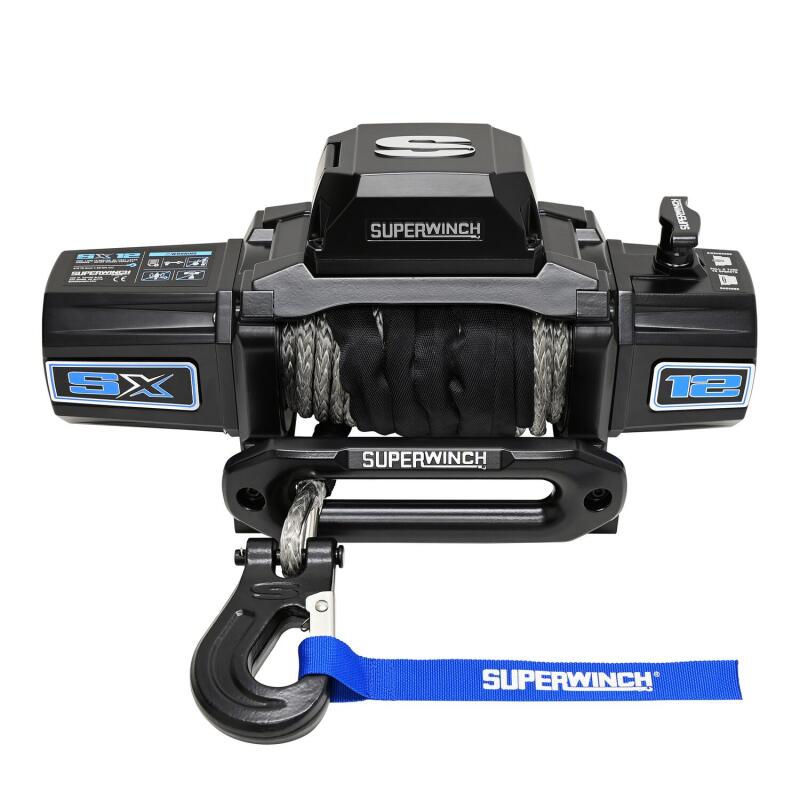

Superwinch SX12SR 12,000 lb 12-Volt Synthetic Rope Winch, Part 1712204

$997.99

Skip to product information
1 of 10

Regular price $997.99
Sale price $997.99 Regular price $997.99
Shipping calculated at checkout.
Low stock
The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all. SX12SR Winch; Black; Includes Installation Instructions
  • Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight
  • 100% full load holding automatic mechanical brake
  • Durable metallic graphite powder coat finish
  • 3-stage planetary gearing with 231:1 ratio
  • Relocatable die-cast aluminum control box
  • Ergonomic pull-and turn clutch handle
  • 80' - 3/8" UV coated synthetic rope
  • IP68-rated waterproof and dustproof
  • Heavy duty clevis winch hook
  • Drum diameter measures 2.5"
  • Aluminum hawse fairlead
  • 12,000 lbs. capacity
  • 6.0 HP sealed motor
  • Patented drum light
  • Clockable gear box

The Superwinch SX12SR winch, part number 1712204, delivers 12,000 pounds of pulling capacity for demanding vehicle recovery and utility applications. Its 6.0 HP sealed motor and 3-stage planetary gear system with a 231:1 gear ratio provide dependable pulling performance, while the 100% full-load-holding automatic mechanical brake helps maintain control under load. The winch features an 80-foot length of 3/8-inch UV-coated synthetic rope designed for strength, reduced handling weight, and long-term outdoor use.
Built for challenging environments, the Superwinch SX12SR has an IP68-rated construction for protection against dust and water. Its durable metallic graphite powder-coated finish provides added resistance to wear, and the relocatable die-cast aluminum control box allows flexible installation. A clockable gearbox and ergonomic pull-and-turn clutch handle support convenient setup and operation, while the aluminum hawse fairlead guides the synthetic rope smoothly during recovery work.
The SX12SR includes both a wireless handheld remote and a 12-foot wired remote with an integrated rechargeable lithium-ion LED flashlight. A patented drum light improves visibility around the winch during low-light operation. The package also includes a heavy-duty clevis winch hook, installation instructions, and the required components for a professional-grade recovery setup. Designed to combine modern styling with proven Superwinch performance, this synthetic rope winch is well suited for trucks, SUVs, and other off-road vehicles requiring reliable 12-volt recovery capability.

Features:

  • 12,000-pound pulling capacity for demanding vehicle recovery applications
  • 6.0 HP sealed 12-volt motor
  • 80-foot, 3/8-inch UV-coated synthetic rope
  • 100% full-load-holding automatic mechanical brake
  • 3-stage planetary gearing with a 231:1 gear ratio
  • IP68-rated protection against dust and water
  • Durable metallic graphite powder-coated finish

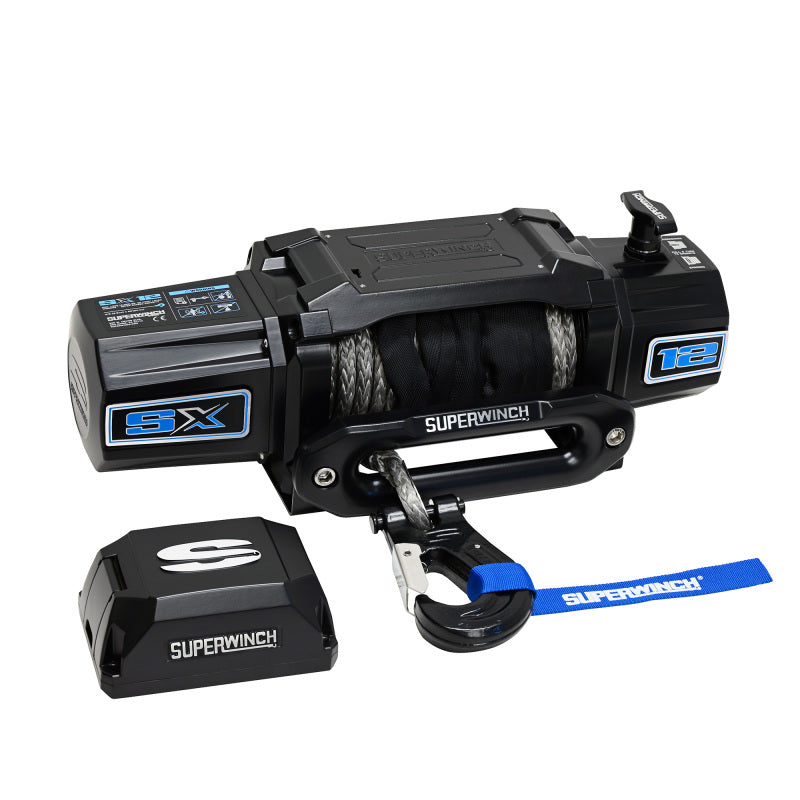

  • Relocatable die-cast aluminum control box

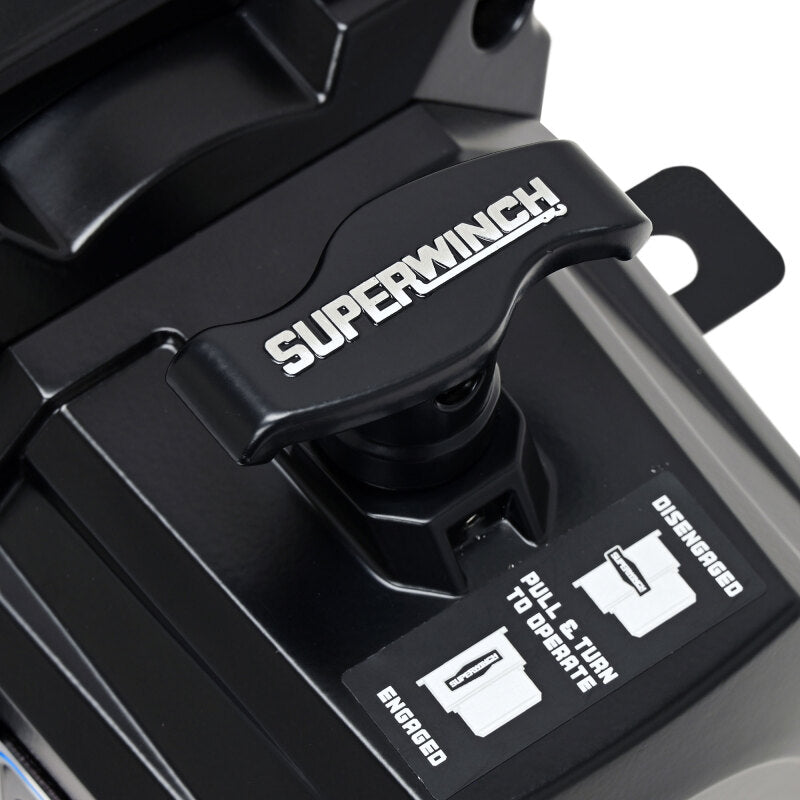

  • Ergonomic pull-and-turn clutch handle
  • Wireless handheld remote included
  • 12-foot wired remote with integrated rechargeable lithium-ion LED flashlight
  • Patented drum light for improved low-light visibility
  • Aluminum hawse fairlead
  • Heavy-duty clevis winch hook
  • Clockable gearbox
  • Installation instructions included



Superwinch SX12SR 12,000 lb 12-Volt Synthetic Rope Winch, Part 1712204

$997.99
