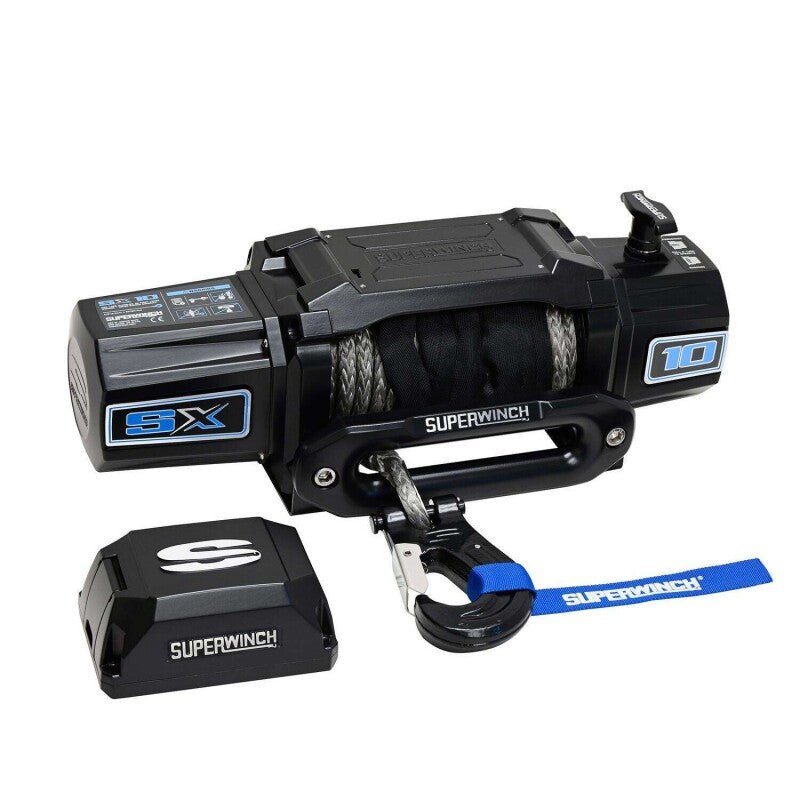

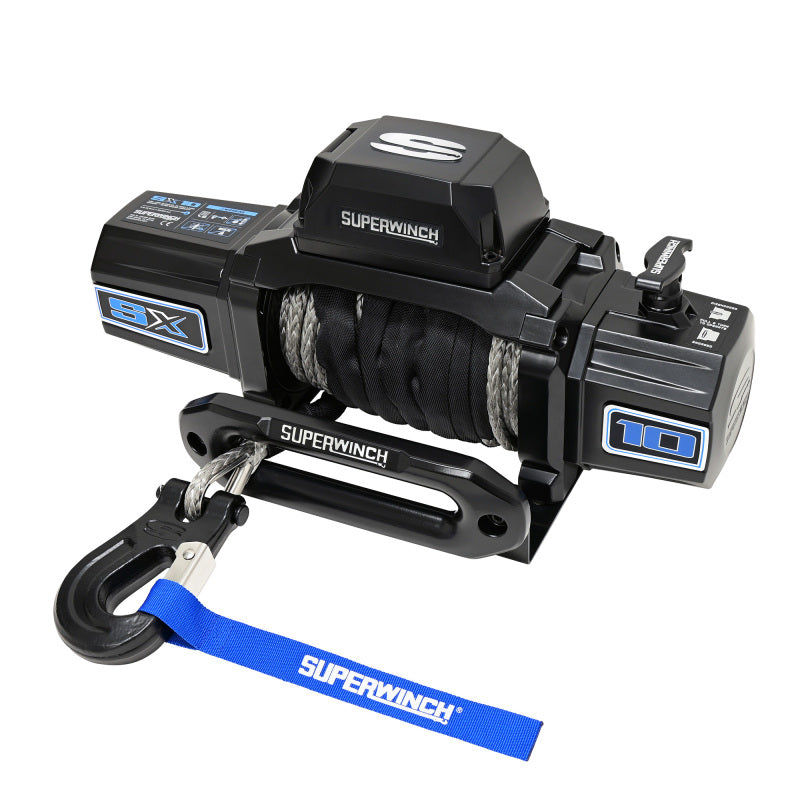

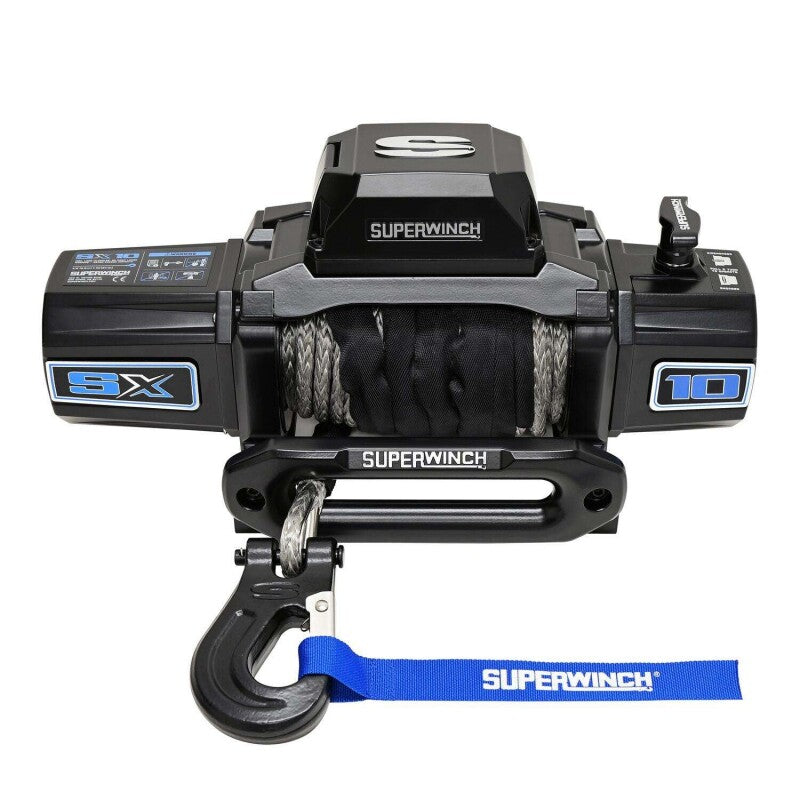

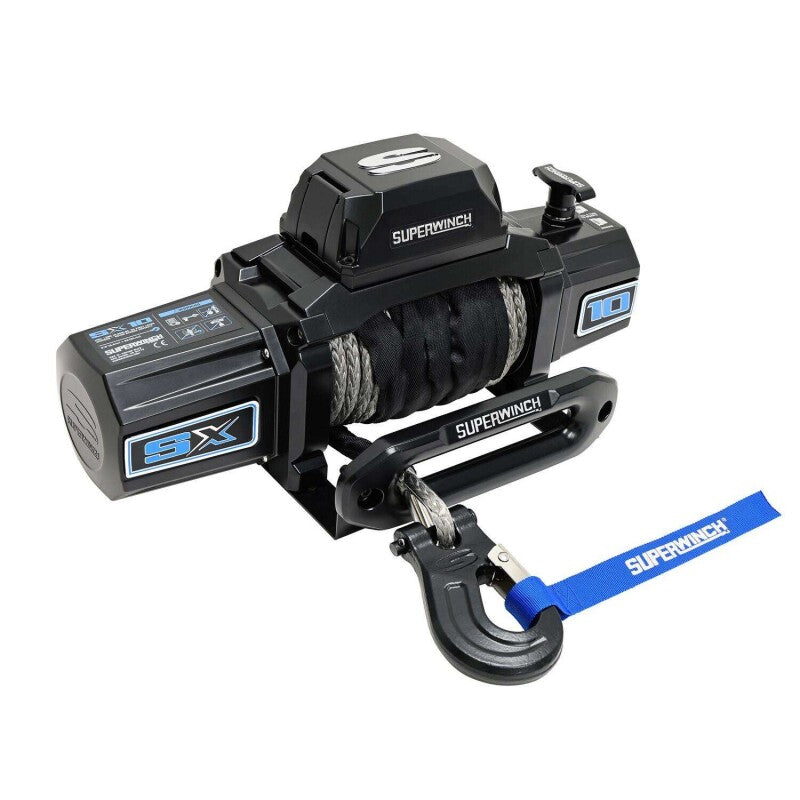

Superwinch SX10SR 10,000 lb 12V Winch with 3/8 in Synthetic Rope, Part 1710204

The SX10SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all. SX10SR Winch; Black; Includes Installation Instructions

• Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight
• 100% full load holding automatic mechanical brake
• Durable metallic graphite powder coat finish
• 3-stage planetary gearing with 218:1 ratio
• Relocatable die-cast aluminum control box

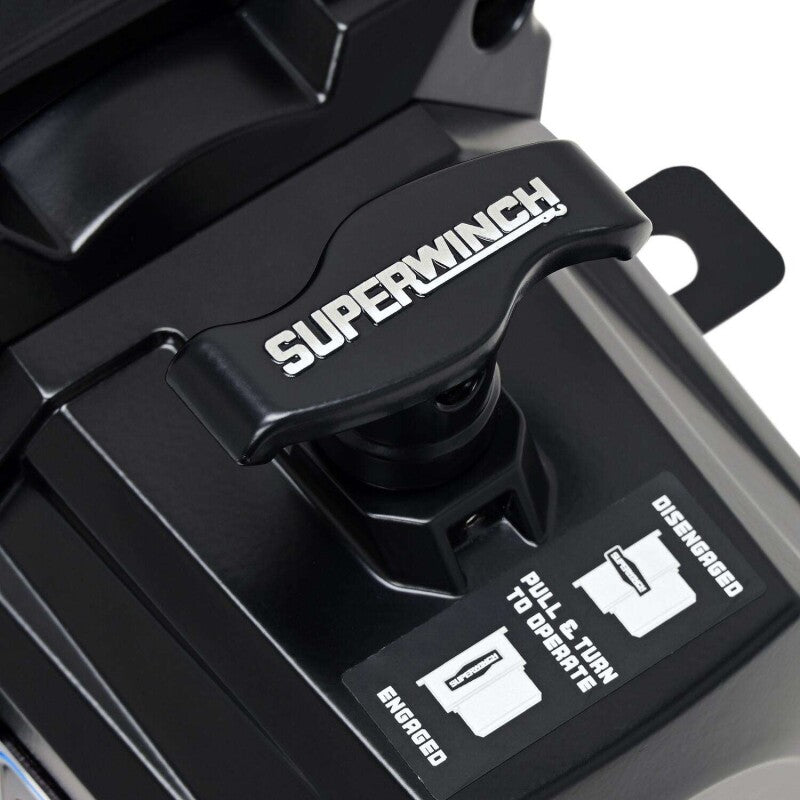

• Ergonomic pull-and turn clutch handle
• 80' - 3/8" UV coated synthetic rope
• IP68-rated waterproof and dustproof
• Heavy duty clevis winch hook
• Drum diameter measures 2.5"
• Aluminum hawse fairlead
• 10,000 lbs. capacity
• 5.5 HP sealed motor
• Patented drum light
• Clockable gear box

The Superwinch SX10SR winch, part number 1710204, delivers dependable recovery performance for demanding trucks, SUVs, and other modern off-road vehicles. Its 12-volt electrical system and 10,000-pound pulling capacity provide substantial recovery power, while the sleek metallic graphite powder-coated finish adds durable corrosion resistance and a modern appearance. The winch includes synthetic rope, an aluminum hawse fairlead, and a heavy-duty clevis hook for reliable operation in challenging conditions.
Designed for convenience and control, the SX10SR includes both a wireless handheld remote and a 12-foot wired remote with an integrated rechargeable LED flashlight. The relocatable die-cast aluminum control box helps simplify installation and positioning, while the patented drum light improves visibility around the rope during low-light recoveries. An ergonomic pull-and-turn clutch handle provides straightforward engagement and disengagement, and the clockable gearbox allows installation flexibility.
The Superwinch SX10SR uses a three-stage planetary gear system with a 218:1 gear ratio and a sealed 5.5-horsepower motor. Its automatic mechanical brake provides full-load holding capability, helping maintain control when the winch is under load. An IP68 rating supports dustproof and waterproof operation, making this synthetic-rope winch a practical choice for serious recovery applications. Installation instructions are included.

Features:

• 10,000-pound maximum pulling capacity for demanding vehicle recovery applications

• 12-volt sealed 5.5-horsepower motor for dependable winching performance

• 80 feet of 3/8-inch UV-coated synthetic rope for reduced weight and flexible handling

• Wireless handheld remote and 12-foot wired remote with integrated rechargeable LED flashlight

• Patented drum light improves visibility during low-light recovery operations

• Three-stage planetary gearing with a 218:1 gear ratio

• Automatic mechanical brake provides full-load holding capability

• Relocatable die-cast aluminum control box simplifies installation flexibility

• IP68-rated design supports dustproof and waterproof operation

• Metallic graphite powder-coated finish provides durable protection and a modern appearance

• Ergonomic pull-and-turn clutch handle for convenient winch control

• Aluminum hawse fairlead supports smooth synthetic-rope operation

• Heavy-duty clevis winch hook included

• Clockable gearbox allows flexible mounting configuration

• Installation instructions included
