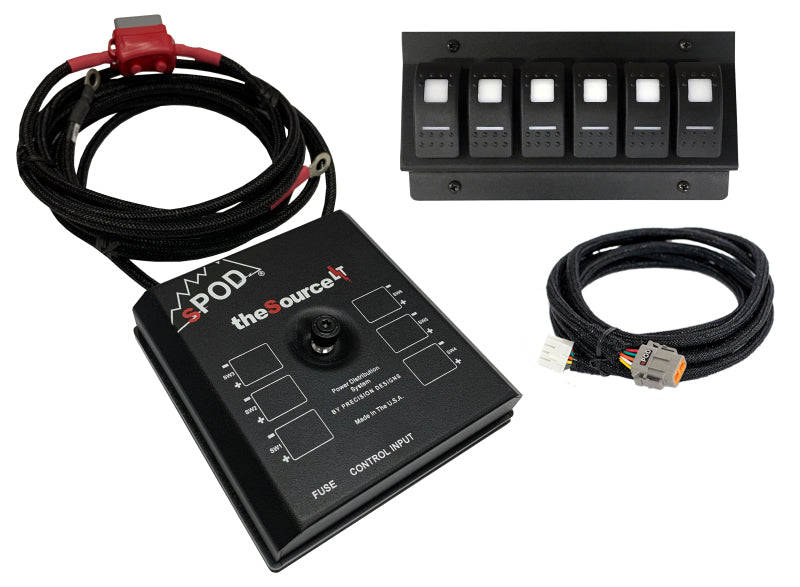

sPOD SourceLT 6-Circuit Power System with Blue LED Switch Panel for 2012-2017 Toyota Tundra, Part 873020

SourceLT w/ Amber LED Switch Panel for 2012-2017 Toyota TundraSwitch panel is installed in place of the sunglass compartment.The SourceLT will save hours of wiring & installation time! It is a small,solid-state6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• 6 circuits rated at 30 amps at 12.5 VDC per circuit• 12-position terminal block (easily attach accessories)• Controller cable(10 foot)for simple plug-n-play connectivity to the switch controller• Integrated low voltage cutoff (LVCO) battery protection w/ optional override•Self-healingfault protectioncircuits(from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & norelays)• 100amp in-line fuse• Nylon braided 36" battery cables are hi-strand crosslinked copper wire with asilicone jacket• Operates on 12VDC• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity andfield collapse• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built inhardware• Silicone gasket for weatherproofing•Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends•Universal &vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch can be programmed for:• Dimming• Strobe• Flash• Momentary• Switch Linking• On-Road and Off-Road mode of operationSWITCH PANELSwitch panel with six dual lit LED switches (installed and pre-wired)All wires are wrapped in high-temp abrasion resistant nylo SourceLT - Toyota 2012-2017 Tundra (Color: Blue) SourceLT 2012-2017 Toyota Tundra

• It‚Äôs the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone

The sPOD SourceLT Part 873020 is a compact, solid-state auxiliary power and control system designed specifically for the 2012-2017 Toyota Tundra. It includes a vehicle-specific replacement switch panel with six pre-wired, dual-lit blue LED switches that installs in place of the factory sunglass compartment. By simplifying accessory wiring and routing, the SourceLT helps reduce installation time while providing a clean, reliable way to operate aftermarket 12-volt accessories.

The SourceLT provides six independently controlled circuits rated at 30 amps each at 12.5 VDC, with a 12-position terminal block for straightforward accessory connections. A 10-foot controller cable provides plug-and-play connectivity between the power module and switch panel, while the included 100-amp inline fuse and 36-inch battery cables support a dependable connection to the vehicle battery. Current-sensing MOSFET technology eliminates conventional fuses and relays within the control system, and self-healing fault protection helps safeguard against overloads and short circuits.

Built-in Bluetooth connectivity enables wireless control and configuration through the free sPOD Mobile app. Each switch can be programmed for dimming, strobe, flash, momentary, switch linking, and on-road or off-road operating modes. The system also includes integrated low-voltage cutoff with optional override, along with protection against overheating, over-current, reverse polarity, shorts, and field collapse. Wireless software updates help keep the system current as new functions become available.

Durable hardware includes a powder-coated steel base, insulated cover, silicone gasket for weather resistance, and a thumb-screw fastening aluminum lid with silkscreened legend placement guides. The compact design offers flexible mounting options without cutting, fishing wires into the cab, or tapping into the factory electrical system. All switch-panel wiring is wrapped in high-temperature, abrasion-resistant nylon for added durability in demanding automotive environments. Fits select 2012-2017 Toyota Tundra applications.

Features:

• Six 30-amp, 12.5 VDC accessory circuits for controlling auxiliary lighting and other 12-volt equipment
• Vehicle-specific switch panel replaces the sunglass compartment in 2012-2017 Toyota Tundra models
• Six pre-wired dual-lit blue LED switches for convenient accessory control
• Built-in Bluetooth connectivity with free sPOD Mobile app support
• Programmable dimming, strobe, flash, momentary, switch linking, and on-road/off-road modes
• Integrated low-voltage cutoff with optional override for battery protection
• Self-healing fault protection with safeguards against overheating, over-current, shorts, reverse polarity, and field collapse
• Current-sensing MOSFET control eliminates traditional internal fuses and relays
• 12-position terminal block, 10-foot controller cable, 100-amp inline fuse, and battery cables included
• Powder-coated steel housing with silicone weatherproof gasket and insulated cover
• Compact installation reduces the need for cutting, wire fishing, or tapping into factory wiring
• Part 873020

Compatible With
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
