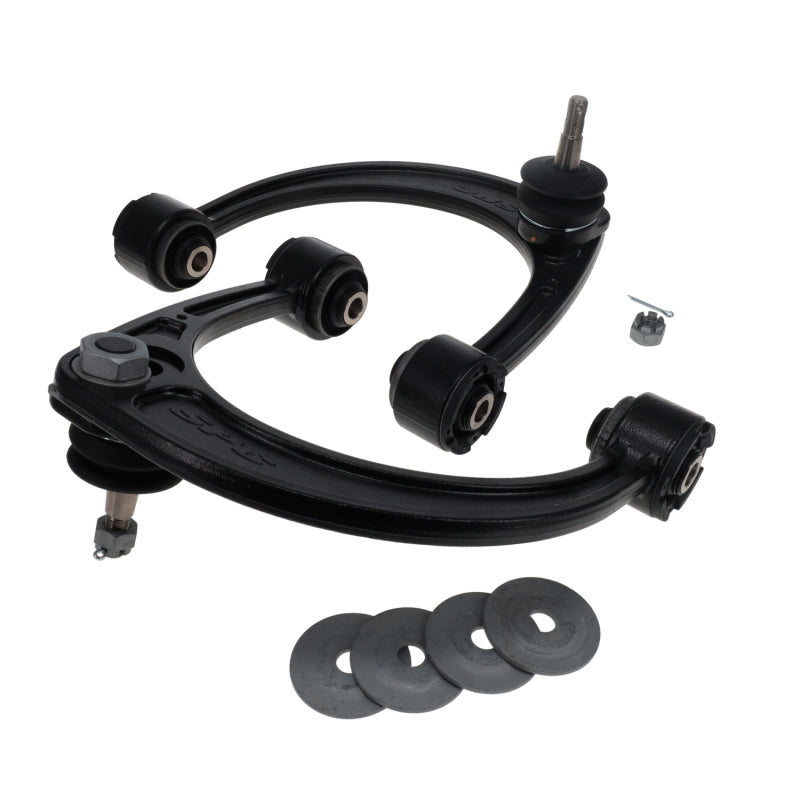

SPC Performance 35470 Adjustable Front Upper Control Arms for 2010-2014 Toyota Tacoma

Designed, engineered, tested, and assembled in Colorado, SPC Performance adjustable upper control arms are loaded with impressive features. Improve suspension travel, handling, and tire wear while centering the tire in the wheel well for maximum clearance needed for oversized tires. Now equipped with maintenance-free ball joints and free-pivoting xAxis™ sealed flex joints in bonded rubber sleeves, for correction of alignment angles and restoration of factory ride quality. A Forged steel design provides the strength and durability needed for the most demanding environments. SPC adjustable control arms have improved clearance to get around the sp ring bucket and a full 80° of articulation in the ball joint. When trucks are lifted, caster and camber angles are affected that can lead to poor handling characteristics such as ‘wandering’. SPC control arms have positive caster built-in for lifted vehicles to restore alignment angles and driv ability. The patented ball joint design allows the tire to be positioned correctly in the wheel well and additional adjustment in the OE lower arms can maximize placement for oversized tires to avoid fender trimming. If replacement lower adjustment cams are needed, see part #25440 or #25435 dependin g on year. Sold as pairs. US Patent No. 7,513,514. Adjustable front upper control arms for the 2nd & 3rd Generation Tacoma with forged steel construction, sealed modern architecture ball joints, and xAxis™ sealed flex joint joints in bonded rubber bushings Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.

• New ball joint has 25% larger stud cross section than OE for superior strength & E-Nickel coating for superior corrosion protection while providing 80° of articulation & extended threads make these arms compatible with knuckle gusset kits
• Arm's adjustment range combine with OE adjusters corrects alignment angles for improved drivability and reduced tire wear & makes it possible to move the tire forward to maximize clearance for 33’s without frame or fender modifications
• One piece polymer race Ball Joint with modern grease formula ensures quiet smooth operation & low turning torque for reduced wear and extended life that tests like OE
• New xAxis™ sealed flex joints in bonded rubber bushings allow for extended suspension travel & superior noise vibration and harshness (NVH) characteristics
• Forged steel arm construction provides maximum strength & clearance with additional caster provision for lifted vehicles built-in
• New fully sealed ball joint architecture keeps grease in and contaminants out for a maintenance-free joint
• Front Adjustment Range: Camber ±2.00° / Caster 0.00° to +4.00°
• Front Adjustment Range: Camber ±2.00˚ / Caster 0.00˚ to +4.00°
• Required: 1 per axle
• Sold as a pair

SPC Performance part number 35470 adjustable front upper control arms are designed for 2010-2014 Toyota Tacoma models and are sold as a pair. Designed, engineered, tested, and assembled in Colorado, these forged steel control arms help restore alignment geometry on lifted trucks while improving suspension travel, handling, tire wear, and tire placement within the wheel well. Built-in positive caster correction supports improved drivability and helps reduce wandering commonly associated with lifted suspension systems.
Each control arm features a fully sealed, maintenance-free ball joint with a stud cross section engineered for increased strength, E-Nickel corrosion protection, extended threads, and up to 80 degrees of articulation. The patented ball joint design allows accurate tire positioning, while the adjustment range works with the factory lower-arm adjusters to optimize camber and caster. This can help move the tire forward for additional clearance when running oversized tires, including 33-inch applications, without requiring frame or fender modifications. Compatibility with knuckle gusset kits is supported by the extended ball joint threads.
New xAxis™ sealed flex joints in bonded rubber bushings provide extended suspension travel and improved noise, vibration, and harshness characteristics. The one-piece polymer race and modern grease formulation support quiet operation, low turning torque, reduced wear, and long service life. The forged steel construction delivers strength and clearance around the spring bucket while maintaining a factory-like ride quality. Front adjustment range is camber ±2.00 degrees and caster from 0.00 to +4.00 degrees. These arms are required at one pair per axle. Replacement lower adjustment cams, when needed, are available separately under SPC Performance part numbers 25440 or 25435, depending on vehicle year. Product appearance and features may vary as design updates are introduced.

Features:

• Brand: SPC Performance

• Part Number: 35470

• Application: Adjustable front upper control arms for 2010-2014 Toyota Tacoma

• Construction: Forged steel for high strength, durability, and improved clearance

• Ball Joint: Fully sealed, maintenance-free design with up to 80 degrees of articulation

• Ball Joint Strength: Stud cross section is 25% larger than the original equipment design

• Corrosion Protection: E-Nickel-coated ball joint stud

• Adjustment Range: Camber ±2.00 degrees and caster from 0.00 to +4.00 degrees

• Alignment Correction: Works with factory lower-arm adjusters to restore lifted-vehicle geometry

• Tire Clearance: Allows forward tire positioning for improved clearance with oversized tires

• Flex Joints: xAxis™ sealed flex joints in bonded rubber bushings

• Ride Quality: Designed to reduce noise, vibration, and harshness while supporting factory-like comfort

• Articulation: Extended suspension travel with additional clearance around the spring bucket

• Fitment: Compatible with knuckle gusset kits using extended ball joint threads

• Service: One-piece polymer race and modern grease formulation support quiet, low-friction operation

• Quantity: Sold as a pair; one pair required per axle

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
