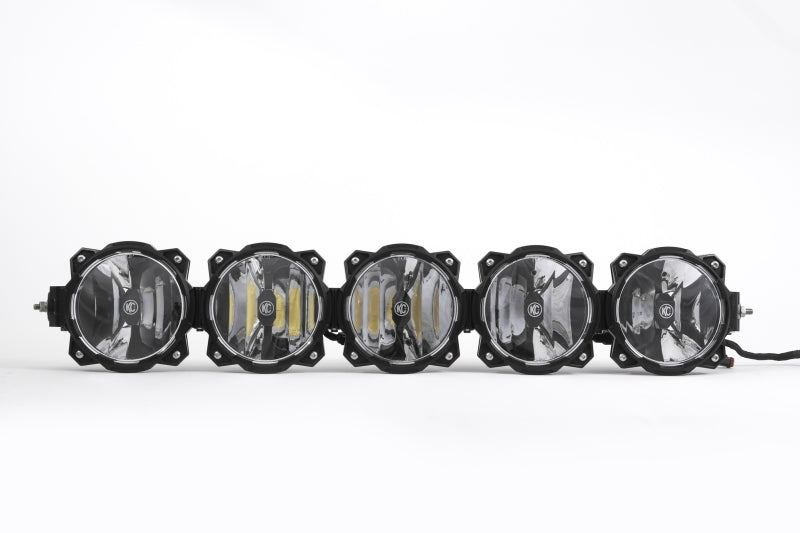

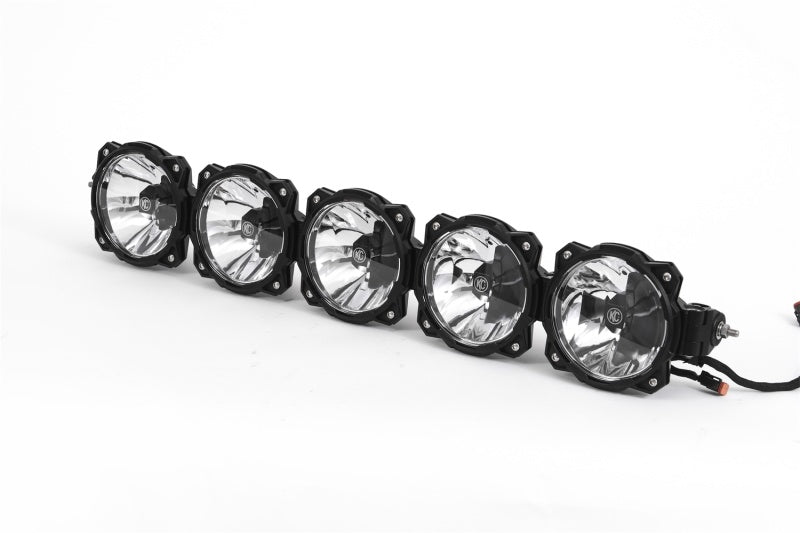

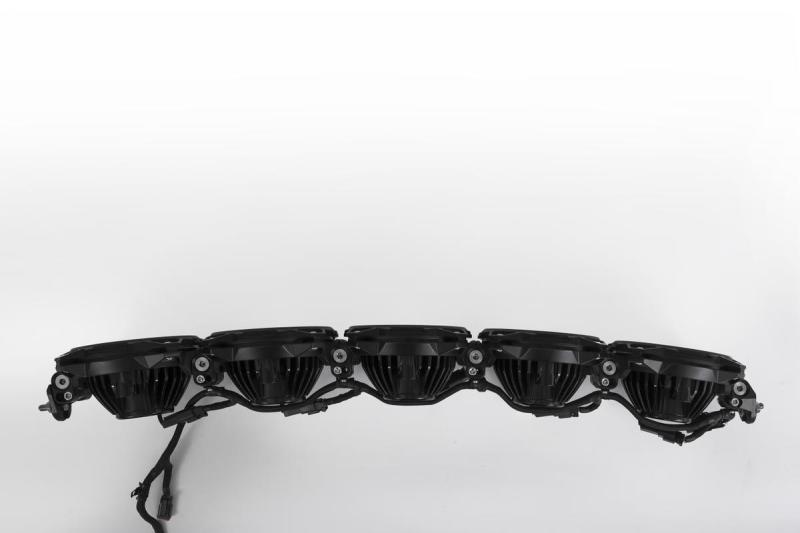

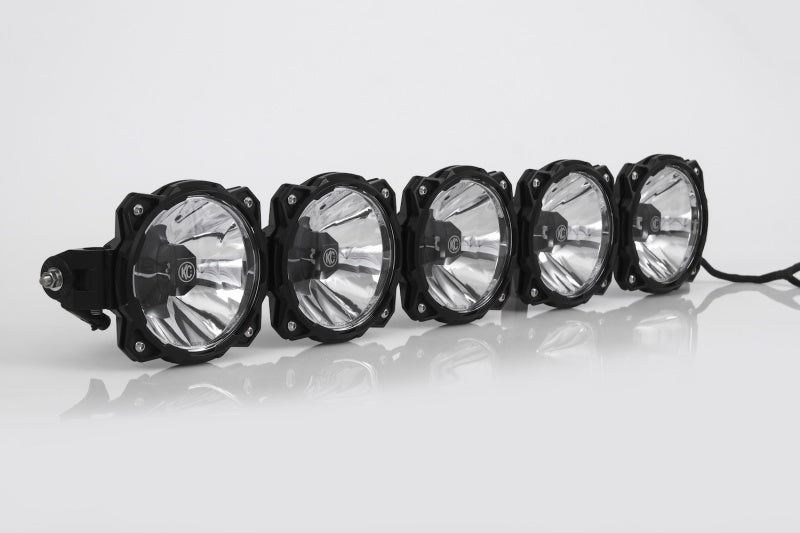

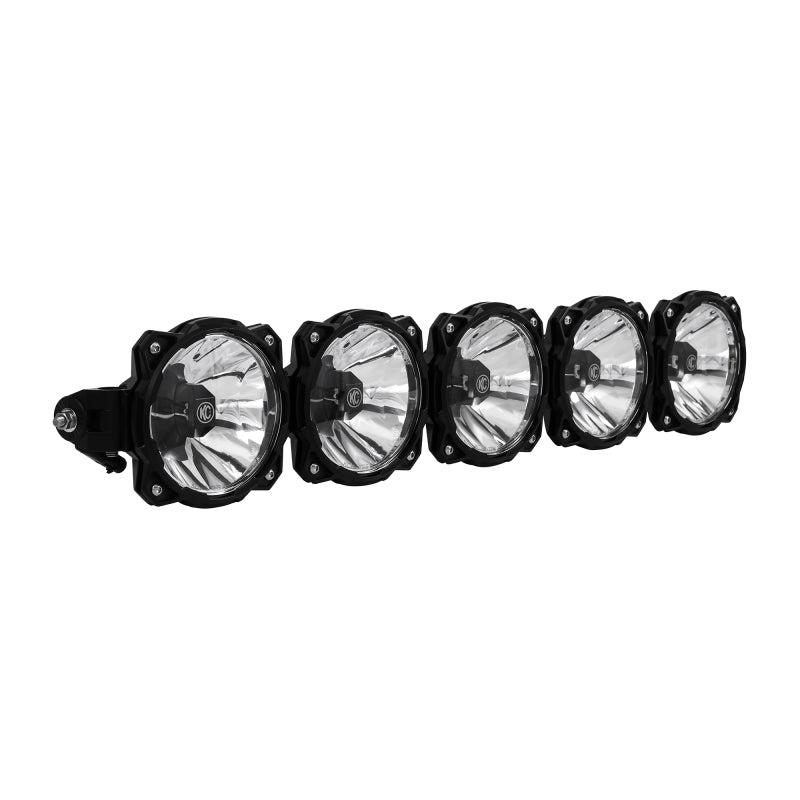

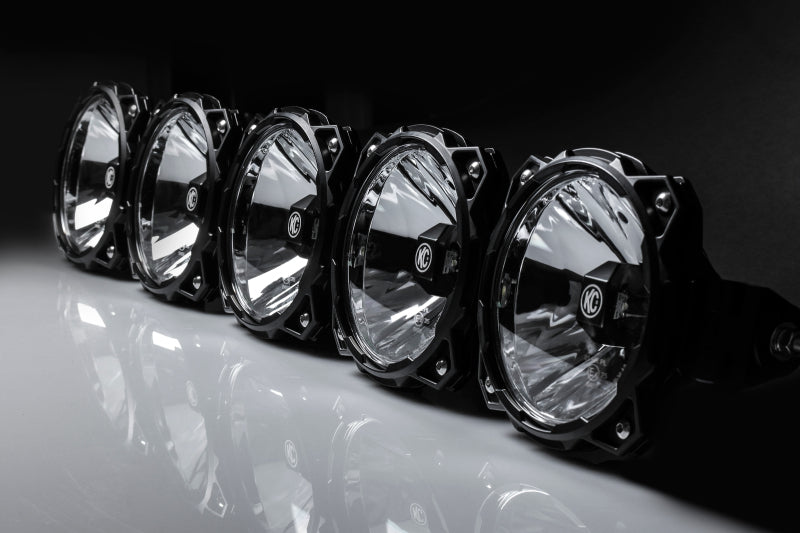

KC HiLiTES Pro6 Gravity LED 5-Light 100W Combo Beam Light Bar, Part 91306

FEATURES-Powered by Gravity LED G6 optical inserts efficient, powerful, patented-Patent-pending Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available Spot, Driving, Wide-40LIGHT PERFORMANCE-Raw Lumens: 11,500 lm-Lux @ 10 Meters: 4,200 lx-Candela: 420,000 cd-Beam Distance (Meters): 1,296mSPECIFICATIONS-Wattage: 100W-Amp Draw: 8.15A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 32.875"PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness with 30 amp LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving and Wide-40 patterns INFINITY Ring™ SYSTEMThe Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or UTVRACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable light bar design available today The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring(r) system featuring radius to straight adjustability, modular beam patterns, and expandable widths. FEATURES-Powered by Gravity LED G6 optical inserts – efficient; powerful; patented-Patent-pending Infinity Ring/#8482; system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available – Spot; Driving; Wide-40LIGHT PERFORMANCE-Raw Lumens: 11;500 lm-Lux @ 10 Meters: 4;200 lx-Candela: 420;000 cd-Beam Distance (Meters): 1;296mSPECIFICATIONS-Wattage: 100W-Amp Draw: 8.15A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-32.875in.PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness with 30 amp LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W; G6 optics are available in Spot; Driving and Wide-40 patterns INFINITY Ring/#8482; SYSTEMThe Infinity Ring/#8482; system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or UTVRACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable light bar design available today

• Modular Beam Optics

Illuminate demanding off-road trails with the KC HiLiTES Pro6 Gravity LED 5-Light Combo Beam Light Bar, Part 91306. This 100-watt lighting system uses patented Gravity LED G6 optical inserts to deliver efficient, powerful illumination with an exceptionally low current draw. Its combination beam configuration helps provide focused distance lighting along with broader trail coverage for Jeep, truck, UTV, and other off-road applications.

The patent-pending Infinity Ring™ system allows the Pro6 light bar to convert from a straight configuration to a radius configuration in seconds. This race-proven linking system also supports expandable widths and modular beam shaping, giving you flexibility to adapt the light bar to different vehicle setups and lighting requirements. The signature KC modular design accommodates multiple G6 beam patterns, including Spot, Driving, and Wide-40 optics.

Built for demanding environments, the Pro6 features high-strength aluminum universal end mounts designed to fit most standard LED light bar mounting applications and attach easily to compatible KC mounts. The durable, race-inspired construction has been tested by KC athletes worldwide for reliable performance in off-road conditions. The light bar produces up to 11,500 raw lumens, 420,000 candela, and a beam distance of up to 1,417 yards. It operates across a 9-32-volt range and draws 8.15 amps, making it suitable for a variety of automotive electrical systems.

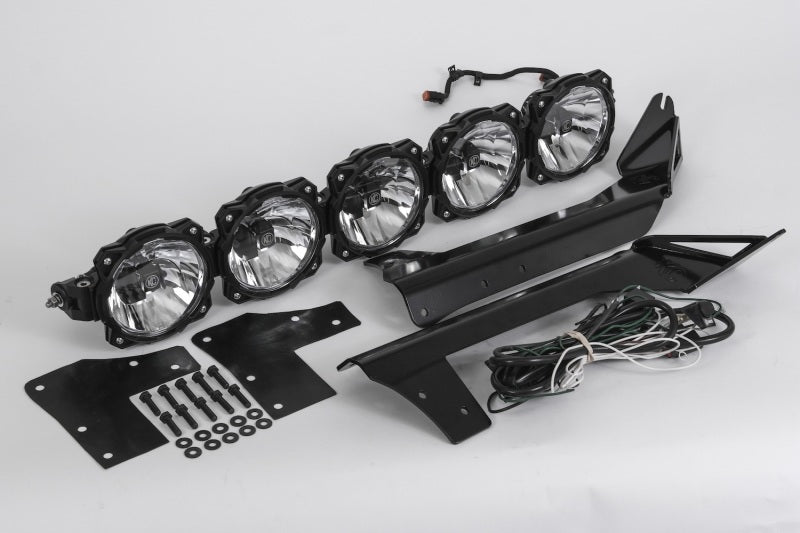

Part 91306 includes one KC HiLiTES Pro6 LED light bar and a deluxe plug-and-play wiring harness with a 30-amp LED switch. This complete setup simplifies installation while providing dependable control of the lighting system. The modular design, adjustable configuration, and high-output G6 optics make the KC HiLiTES Pro6 a versatile upgrade for trail driving, racing, work vehicles, and recreational off-road use.

Features:

• Powered by patented Gravity LED G6 optical inserts for efficient, high-output illumination.
• Patent-pending Infinity Ring™ system converts the light bar between straight and radius configurations in seconds.
• Modular KC design supports expandable widths and adaptable beam configurations.
• Combo beam lighting combines multiple G6 optic patterns for distance and trail coverage.
• Produces up to 11,500 raw lumens, 420,000 candela, and a beam distance of up to 1,417 yards.
• Uses 100 watts with an 8.15-amp draw and supports 9-32-volt electrical systems.

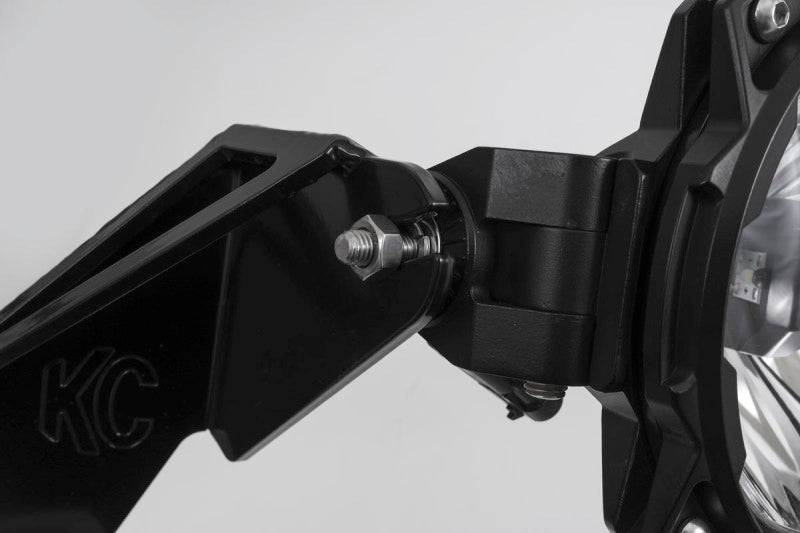

• High-strength aluminum universal end mounts fit most standard LED light bar mounting applications.
• Includes a deluxe plug-and-play wiring harness with a 30-amp LED switch.
• Race-inspired construction provides durable and reliable off-road performance.
