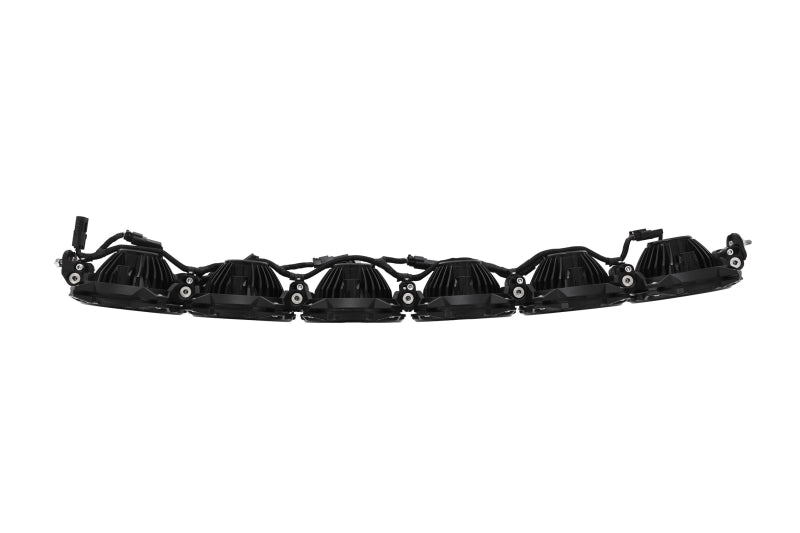

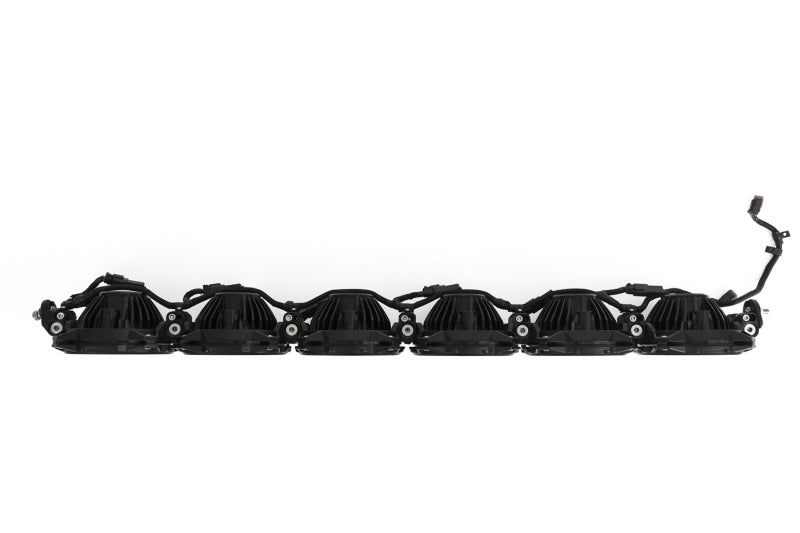

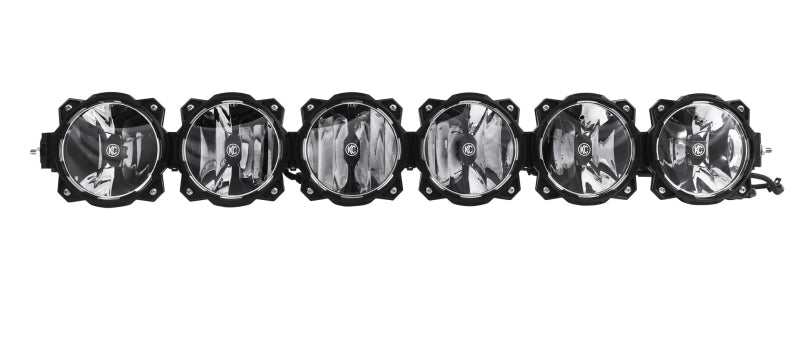

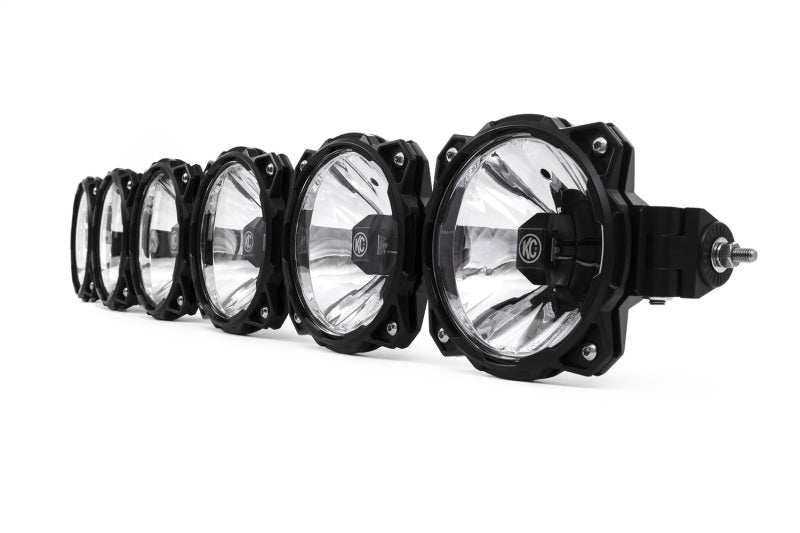

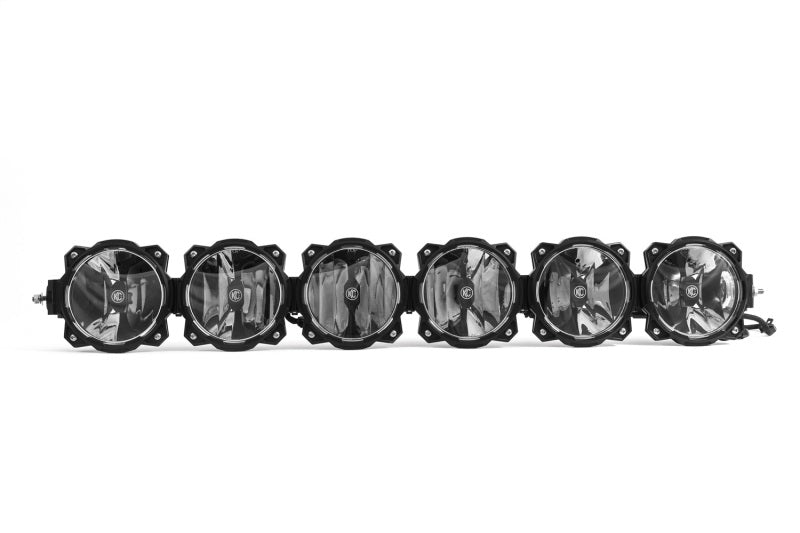

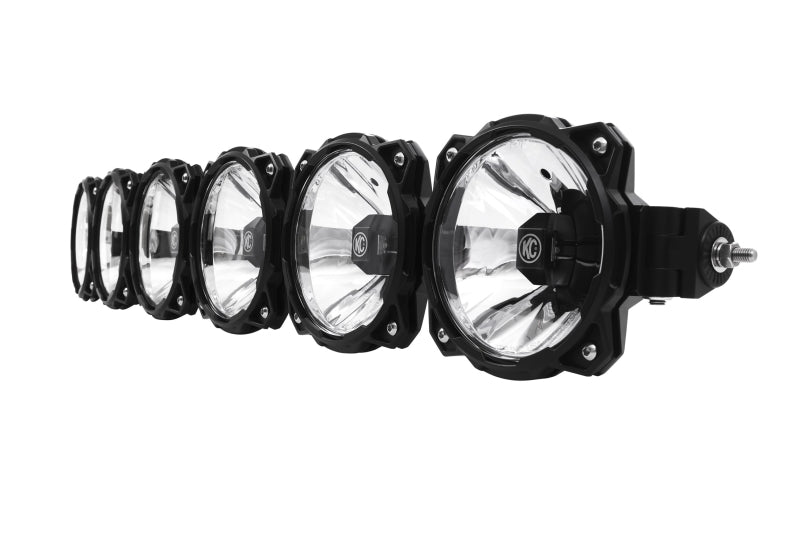

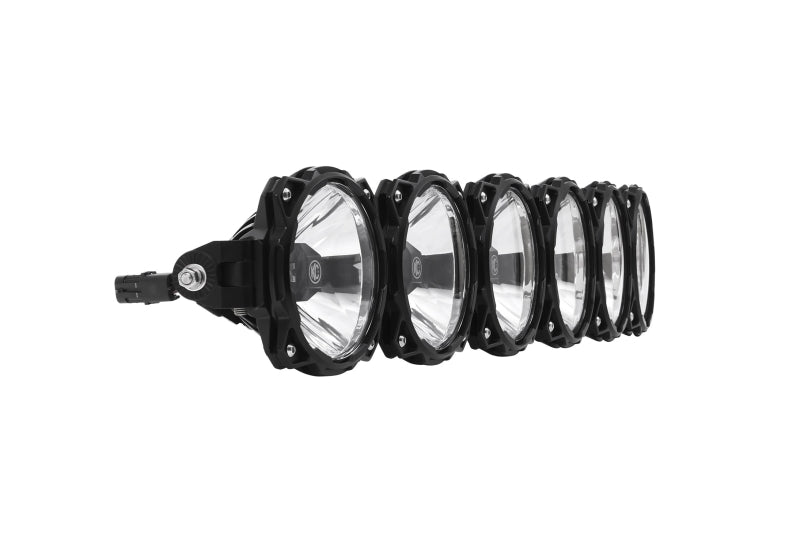

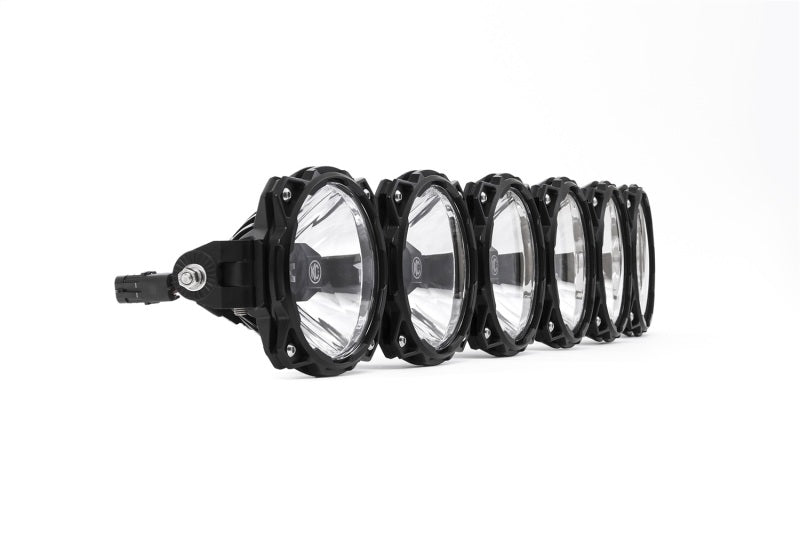

KC HiLiTES 91307 Pro6 Gravity LED 6-Light 120W Combo Beam Light Bar

FEATURES-Powered by Gravity LED G6 optical inserts efficient, powerful, patented-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available Spot, Driving, Wide-40LIGHT PERFORMANCE-Raw Lumens: 13,800 lm-Lux @ 10 Meters: 5,150 lx-Candela: 515,000 cd-Beam Distance (Meters): 1,435mSPECIFICATIONS-Wattage: 120W-Amp Draw: 9.78A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 39.125"PARTS INCLUDED-(1) Pro6 LED Light Bar-(6) Light Covers - Black w/ Yellow KC Logo-Deluxe Plug-N-Play Wiring Harness with 30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving and Wide-40 patterns. INFINITY Ring SYSTEMThe Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or UTVRACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable light bar design available today The Gravity LED Pro6 light bar is an LED off-road lighting system unlike any you've seen before. This high-performance light bar includes the patented Infinity Ring(r) modular design, as well as patented Gravity LED optics. FEATURES-Powered by Gravity LED G6 optical inserts – efficient; powerful; patented-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available – Spot; Driving; Wide-40LIGHT PERFORMANCE-Raw Lumens: 13;800 lm-Lux @ 10 Meters: 5;150 lx-Candela: 515;000 cd-Beam Distance (Meters): 1;435mSPECIFICATIONS-Wattage: 120W-Amp Draw: 9.78A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-39.125in.PARTS INCLUDED-(1) Pro6 LED Light Bar-(6) Light Covers-Black w/Yellow KC Logo-Deluxe Plug-N-Play Wiring Harness with 30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W; G6 optics are available in Spot; Driving and Wide-40 patterns. INFINITY Ring SYSTEMThe Infinity Ring system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or UTVRACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable light bar design available today

• Modular Beam Optics

The KC HiLiTES Pro6 Gravity LED light bar, part number 91307, delivers powerful off-road illumination through six patented Gravity LED G6 optical inserts. With 13,800 raw lumens, 515,000 candela, and a beam distance of up to 1,572 yards, this 120-watt lighting system provides exceptional visibility for trail driving, racing, utility vehicles, trucks, and Jeeps. Its efficient design produces high output with a low 9.78-amp draw and operates across a 9-32 volt electrical range.
The patent-pending Infinity Ring system allows the Pro6 to convert from a straight light bar to a radius configuration in seconds while supporting expandable widths and modular beam shaping. G6 optics are available in Spot, Driving, and Wide-40 beam patterns, allowing drivers to select the light distribution best suited to their application. The signature KC modular design provides a scalable platform that can be adapted for different vehicle setups and mounting requirements.

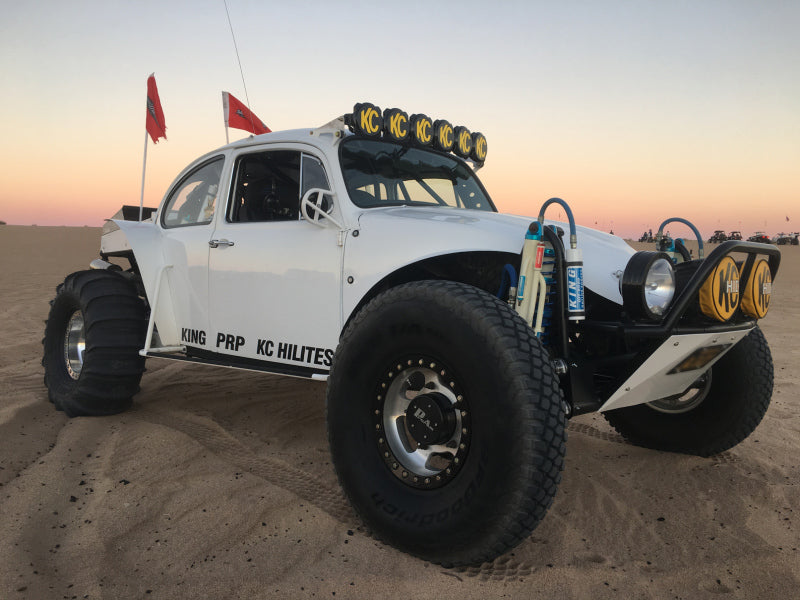

The Pro6 features high-strength aluminum end mounts and a universal end-mount system designed to fit most standard LED light bar widths. It attaches easily to compatible KC mounting systems for use on Jeeps, trucks, and UTVs. Built with race-proven strength and durability, the light bar is designed to withstand demanding off-road conditions while providing reliable performance. The package includes one Pro6 LED light bar, six black light covers with yellow KC logos, and a deluxe plug-and-play wiring harness with a 30-amp LED switch. Mounting hardware is not included.
Feature: Six Gravity LED G6 optical inserts for efficient, high-output illumination.
Feature: 13,800 raw lumens, 515,000 candela, and a beam distance of up to 1,572 yards.
Feature: Patent-pending Infinity Ring system converts between straight and radius configurations.
Feature: Modular Spot, Driving, and Wide-40 beam pattern options.
Feature: 120 watts with a 9.78-amp draw and 9-32 volt compatibility.
Feature: Universal high-strength aluminum end mounts for compatible KC mounting systems.
Feature: Includes six black light covers and a plug-and-play wiring harness with a 30-amp LED switch.

Features:

• Six Gravity LED G6 optical inserts for efficient, high-output illumination.

• 13,800 raw lumens, 515,000 candela, and a beam distance of up to 1,572 yards.

• Patent-pending Infinity Ring system converts between straight and radius configurations.

• Modular Spot, Driving, and Wide-40 beam pattern options.

• 120 watts with a 9.78-amp draw and 9-32 volt compatibility.

• Universal high-strength aluminum end mounts for compatible KC mounting systems.

• Includes six black light covers and a plug-and-play wiring harness with a 30-amp LED switch.
