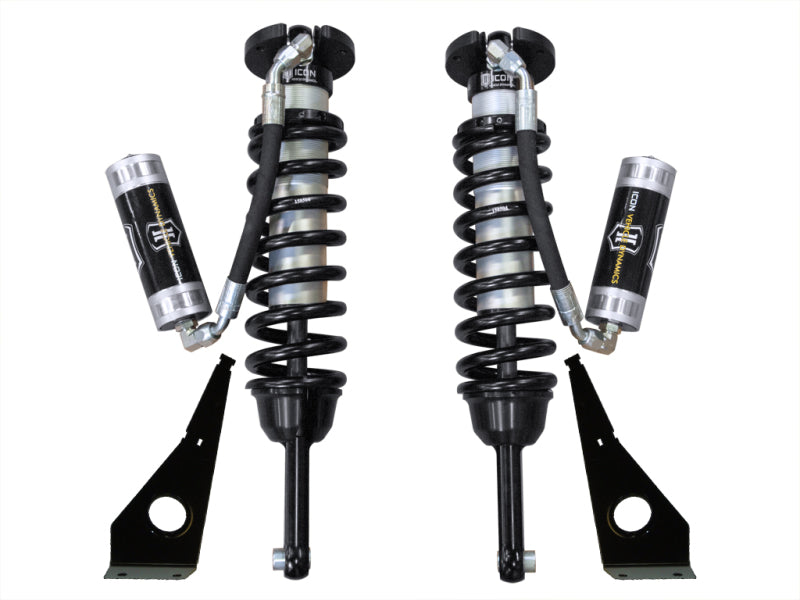

ICON V.S. 2.5 Series Front Remote Reservoir Coilover Kit with 700 lb/in Springs for 2005-2023 Toyota Tacoma, Part 58730-700

$2,095.55

Skip to product information

Regular price $2,095.55
Sale price $2,095.55 Regular price $2,095.55
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • Vehicle specific tuned for superior shock damping and control
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • Kit Includes Sway bar relocation brackets
  • 5/8" PTFE-lined spherical bearings
  • Billet aluminum upper mount
  • CAD-plated threaded body
  • Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, Part 58730-700. Designed for demanding on-road and off-road use, this height-adjustable system combines vehicle-specific shock length and valving with ICON-engineered coil springs to deliver improved suspension travel, ride quality, and vehicle control. The coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models, creating room for larger and more aggressive wheel and tire combinations.
The 2.5-inch shock bodies and increased piston area provide enhanced damping performance compared with stock components, helping the Tacoma maintain controlled handling over varied terrain. External remote reservoirs increase fluid capacity and cooling surface area to help resist overheating, cavitation, and damper fade during extended or intensive driving. The included 700 lb/in coil springs are engineered to support Tacoma models equipped with additional front-end weight, including aftermarket bumpers and winches. ICON recommends this spring rate for trucks with heavier front-end equipment; consult the ICON Help Center for application guidance.
The kit includes reservoir mounting brackets designed to optimize tire clearance and sway bar relocation brackets for proper suspension geometry. Additional construction features include 5/8-inch PTFE-lined spherical bearings, billet aluminum upper mounts, CAD-plated threaded bodies, optimized hose lengths for fluid transfer, and fully rebuildable shock assemblies. Pairing these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks helps balance front-to-rear control for a more consistent driving experience. Fits select 2005-2023 Toyota Tacoma applications; verify vehicle year and configuration before installation.

Features:

  • ICON-engineered coil springs with a 700 lb/in spring rate support Tacoma trucks with heavier front-end equipment
  • Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models
  • Vehicle-specific shock tuning delivers controlled damping and improved ride quality on and off the road
  • Remote reservoirs increase cooling capacity and help resist overheating, cavitation, and damper fade
  • 2.5-inch shock bodies and increased piston area improve damping performance
  • Reservoir mounting brackets are included to optimize tire clearance
  • Sway bar relocation brackets are included
  • Optimized hose length promotes increased fluid transfer
  • 5/8-inch PTFE-lined spherical bearings provide durable articulation
  • Billet aluminum upper mounts and CAD-plated threaded bodies provide strong, corrosion-resistant construction
  • Fully rebuildable shock assemblies support long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
