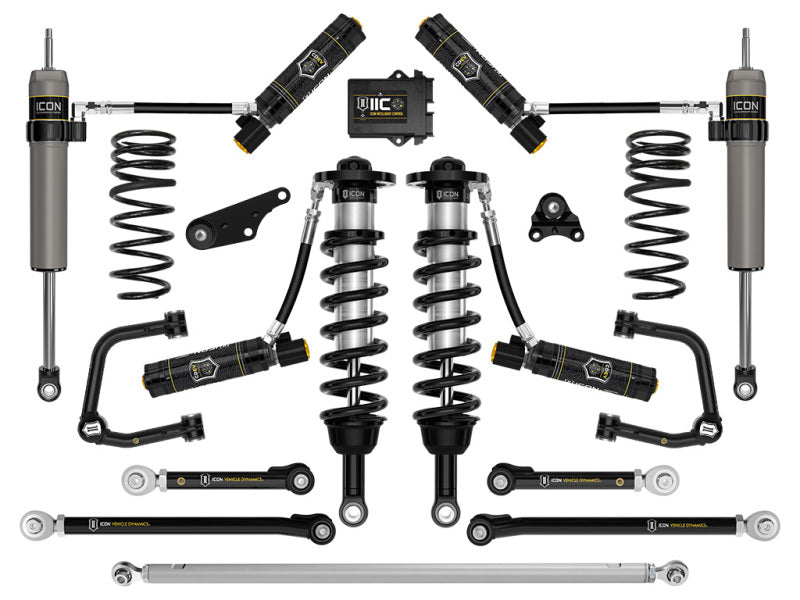

ICON K53303T Stage 13 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Front Lift

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 13 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Upgrade the on-road comfort and off-road capability of your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics K53303T Stage 13 suspension system. Designed for serious driving performance, this complete system improves wheel travel, damping control, suspension clearance, and front-end geometry. The adjustable front coilovers provide 1.25-3 inches of lift over stock, while the engineered rear coil springs add approximately 0.5 inch of lift and deliver balanced ride rates for comfort, control, and improved bottoming resistance. This kit is configured for 4WD Toyota Tacoma models.
The system includes ICON 2.5 Aluminum Series CDEV remote reservoir shocks with integrated bump zones and 7/8-inch shafts. ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces, allowing near-instantaneous compression damping changes based on user-defined settings. CDE Valve technology also enables in-vehicle compression adjustment for improved control across changing road and trail conditions. Corrosion-resistant CAD-plated shock bodies, remote reservoirs, and vehicle-specific valving help maintain consistent performance during demanding use.

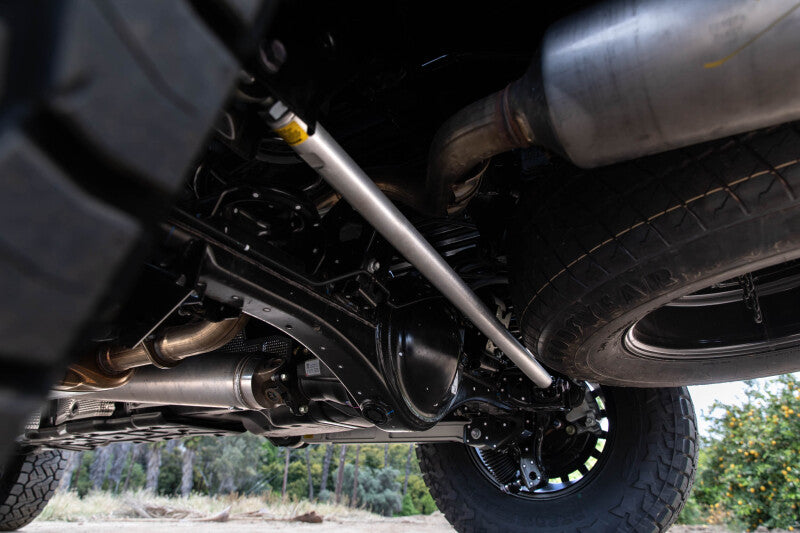

Tubular upper control arms feature the patented, serviceable, and rebuildable Delta Joint PRO with 90 degrees of total articulation. This design helps eliminate bind through suspension travel while improving alignment correction, component clearance, and durability. Tubular rear upper and lower links use FK rod ends and dual-durometer greaseless bushings to support articulation while reducing road noise and vibration. The adjustable billet aluminum rear track bar helps properly center the rear axle and allows on-vehicle length adjustment without removal. A front differential drop is included to improve CV joint operating angles and maximize available wheel travel on 4WD models.
Built from 6061 aircraft-grade aluminum CNC-machined components and ICON-engineered springs, the K53303T system is designed to provide increased suspension travel, improved ride quality, and dependable performance on pavement and dirt. For 2WD Tacoma applications, the front differential drop is not required; remaining system components may be purchased individually for full functionality. Confirm vehicle configuration and installation requirements before ordering.

Features:

• ICON Intelligent Control monitors chassis movement and G-forces for active compression damping adjustments

• CDE Valve technology provides in-vehicle compression damping adjustment

• 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones and 7/8-inch shafts

• 2.5 Series front coilovers with remote reservoirs for improved damping and shock cooling

• Adjustable front coilovers provide 1.25-3 inches of lift over stock

• Triple-rate rear coil springs provide approximately 0.5 inch of rear lift and improved ride control

• Tubular upper control arms improve strength, durability, alignment correction, and component clearance

• Patented Delta Joint PRO provides 90 degrees of total articulation and is serviceable and rebuildable

• Tubular rear upper and lower links improve articulation and allow pinion angle adjustment

• Adjustable billet aluminum rear track bar helps center the rear axle with on-vehicle adjustment

• Front differential drop improves CV joint operating angles on 4WD models

• FK rod end bearings provide extended longevity and minimal deflection

• Corrosion-resistant CAD-plated coilover shock bodies

• 6061 aircraft-grade aluminum CNC-machined components

• Increased wheel travel and improved ride quality over stock

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
