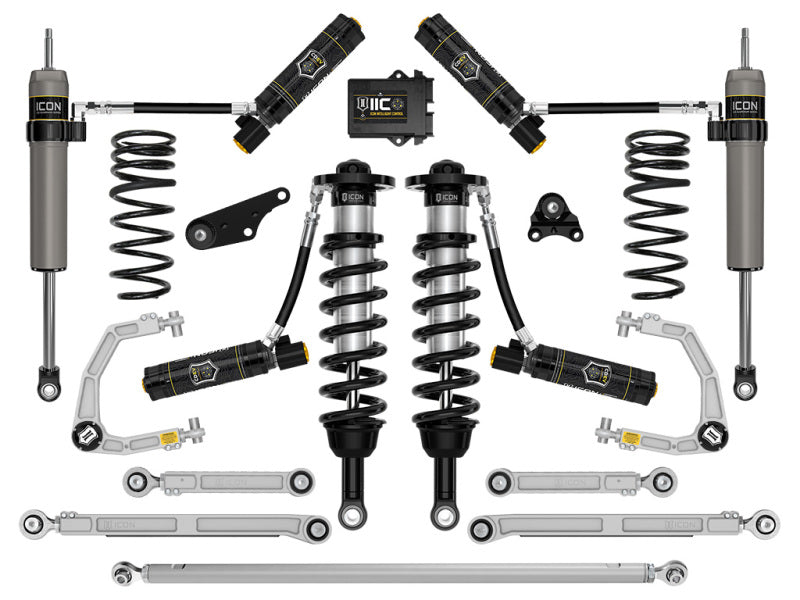

ICON K53303 Stage 13 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Front Lift

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear upper and lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 13 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

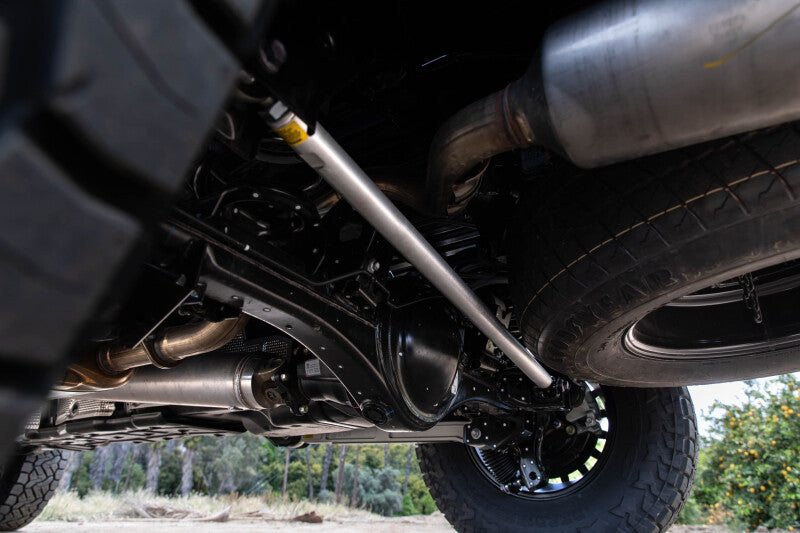

• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

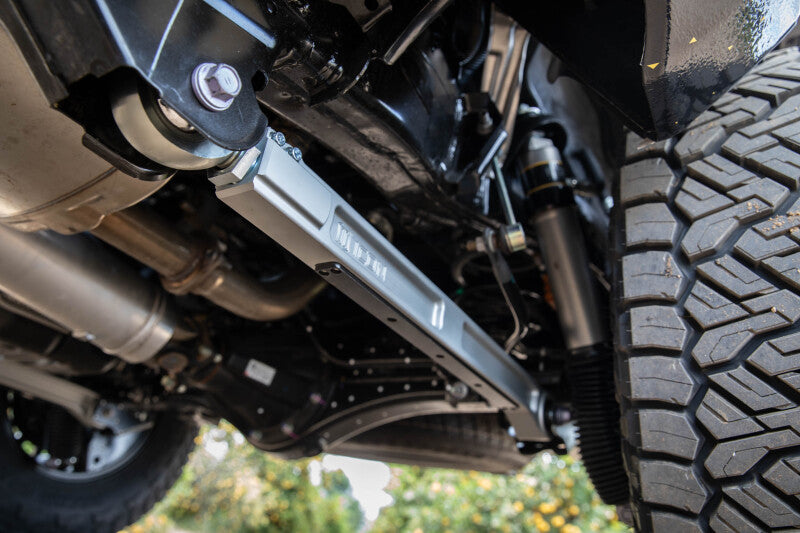

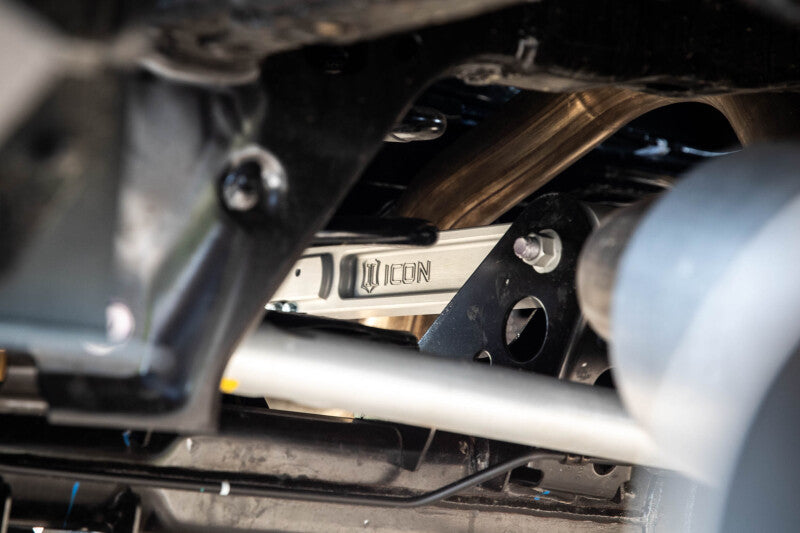

• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Upgrade the performance and control of your 2024-2025 Toyota Tacoma with the ICON K53303 Stage 13 Suspension System. Engineered for 4WD models, this complete suspension package improves wheel travel, damping capability, suspension geometry, and ride quality on pavement and off-road terrain. Adjustable ICON 2.5 Series front coilovers provide 1.25-3 inches of front lift over stock, while integrated remote reservoirs and vehicle-specific valving help maintain consistent damping performance during demanding use. Rear triple-rate coil springs provide approximately 0.5 inch of lift with a balanced combination of comfortable droop and ride rates and a firmer overload rate for improved bottoming resistance.

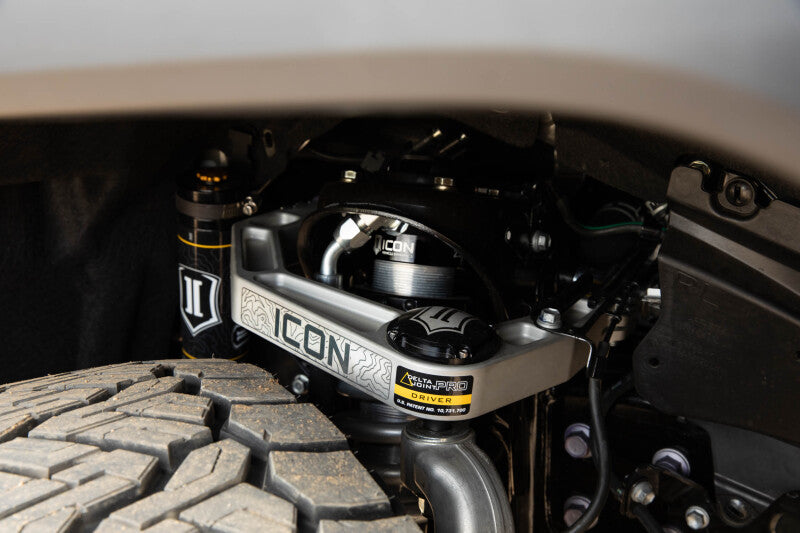

The ICON billet aluminum upper control arms include the serviceable and rebuildable Delta Joint PRO, providing up to 90 degrees of total articulation while reducing suspension bind through the full range of bump and droop travel. On-vehicle caster and camber adjustment helps optimize alignment and drivability. Billet rear upper and lower links use ICON double adjusters for convenient on-vehicle adjustment, with dual-durometer greaseless bushings and FK rod ends that promote articulation while helping reduce road noise and vibration. The adjustable rear track bar helps properly center the rear axle and can be fine-tuned without removing or disassembling the component.
The system includes ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with 7/8-inch shafts, integrated bump zones, and compression damping adjustment through ICON CDE Valve technology. ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces, enabling near-instantaneous compression damping changes based on user-defined settings. Corrosion-resistant CAD-plated shock bodies, 6061 aircraft-grade aluminum CNC-machined components, and ICON-engineered coil springs provide durability for demanding driving conditions. Application Note #206: This configuration is intended for 4WD Toyota Tacoma models. For 2WD models, front differential drop kit part number 55160 is not required, and components may be purchased individually for full system functionality.

Features:

• ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces while actively adjusting compression damping

• ICON CDE Valve technology provides in-vehicle compression damping adjustment and active control through ICON Intelligent Control

• ICON 2.5 Aluminum Series remote reservoir rear shocks feature 7/8-inch shafts, integrated bump zones, and vehicle-specific valving

• Adjustable ICON 2.5 Series front coilovers provide 1.25-3 inches of front lift over stock

• Billet aluminum upper control arms improve strength, durability, and on-vehicle caster and camber adjustment

• Patented Delta Joint PRO provides 90 degrees of total articulation and supports full front suspension travel

• Billet rear upper and lower links improve articulation and allow on-vehicle pinion angle adjustment

• Adjustable billet aluminum rear track bar helps center the rear axle and supports on-vehicle fine adjustment

• Triple-rate rear coil springs provide approximately 0.5 inch of rear lift with improved comfort and bottoming resistance

• Front differential drop improves CV joint operating angles on 4WD models

• FK rod end bearings promote long service life and minimize deflection

• Corrosion-resistant CAD-plated coilover shock bodies improve durability

• 6061 aircraft-grade aluminum CNC-machined components provide strength and corrosion resistance

• Increased wheel travel and improved ride quality compared with stock suspension

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
