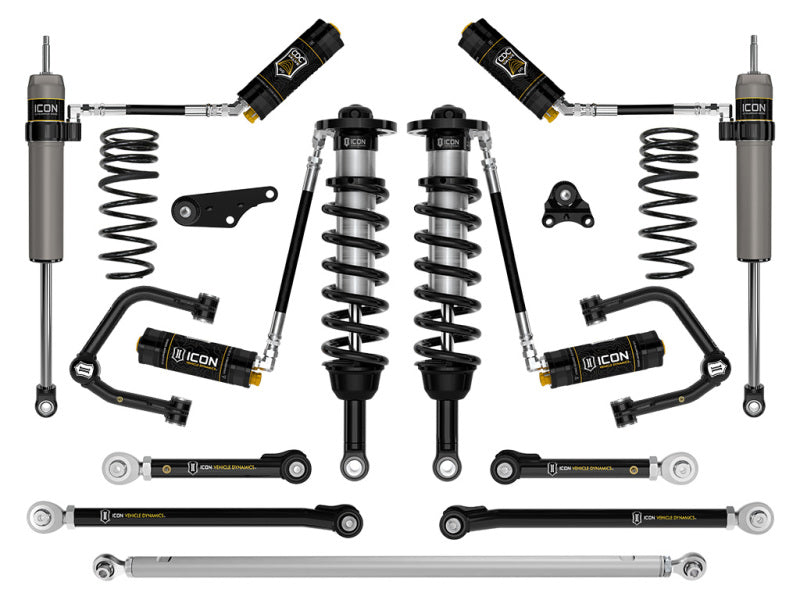

ICON K53301T Stage 11 Suspension System for 2024-2025 Toyota Tacoma

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

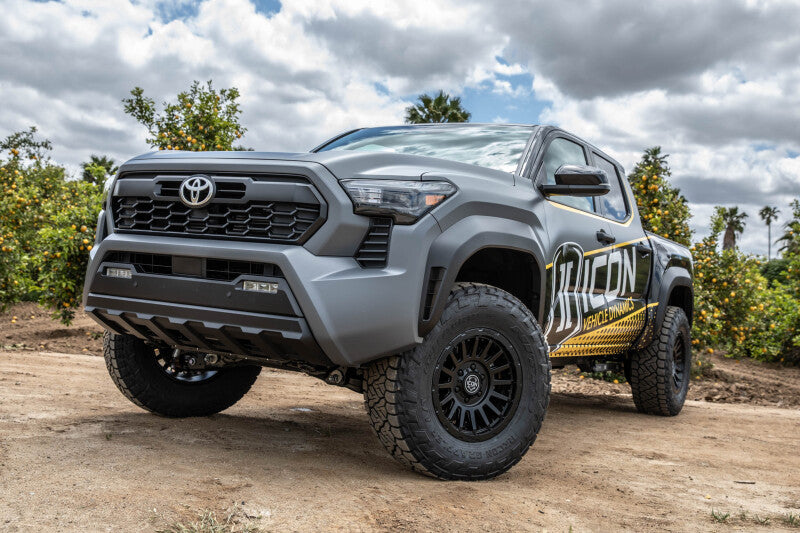

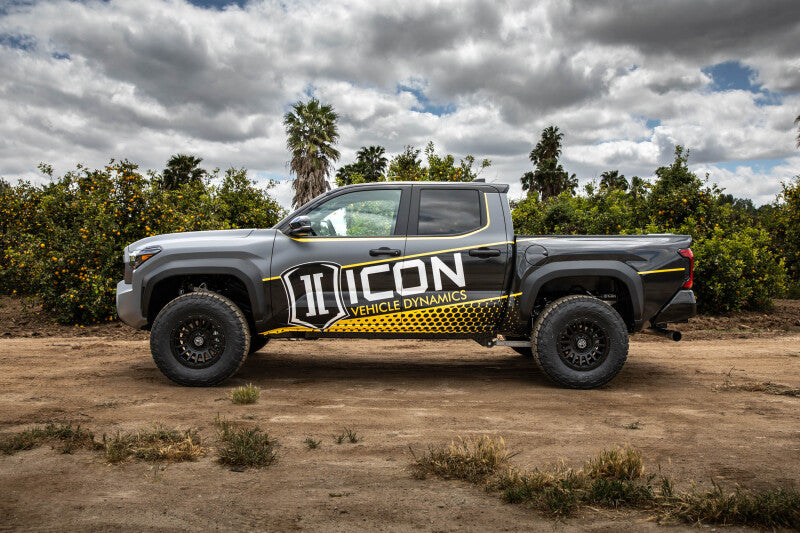

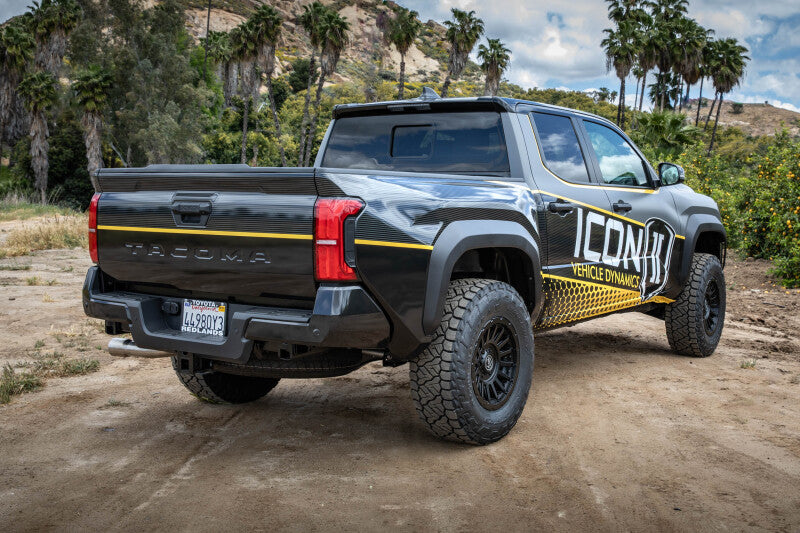

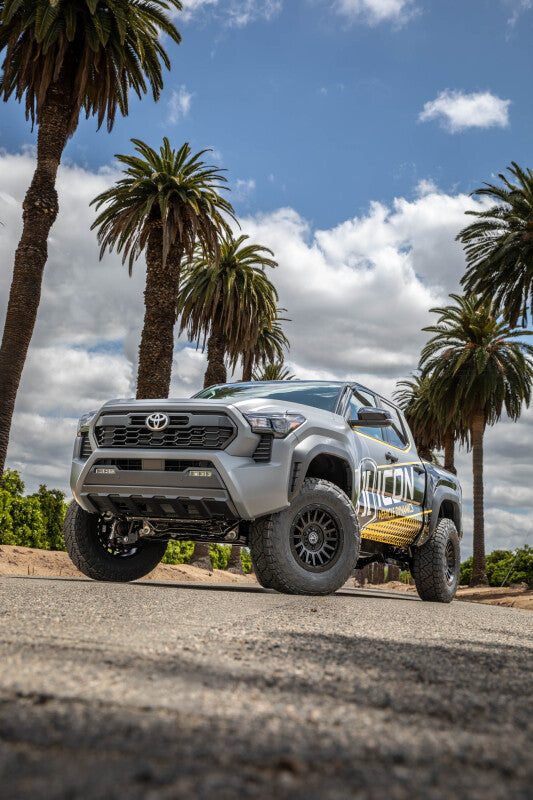

The ICON K53301T Stage 11 suspension system is engineered for 2024-2025 Toyota Tacoma models and delivers improved control, wheel travel, ride quality, and off-road capability. Designed for serious on-road and trail use, the system combines tubular upper control arms, adjustable front coilovers, remote reservoir rear shocks, rear suspension links, a billet adjustable track bar, and engineered coil springs for a balanced suspension upgrade. Adjustable front lift height ranges from 1.25 to 3 inches over stock, while the rear coil springs provide approximately 0.5 inch of lift.
The tubular upper control arms correct front-end geometry, add caster, improve suspension clearance, and feature ICON’s patented Delta Joint PRO with 90 degrees of total articulation. This serviceable and rebuildable joint helps maintain full bump and droop travel while reducing suspension bind. The tubular rear upper and lower links use dual-durometer greaseless bushings and FK rod ends to support free articulation while reducing road noise, vibration, and deflection. The billet aluminum rear track bar allows on-vehicle length adjustment to properly center the rear axle and improve rear suspension performance.
The system includes ICON 2.5 Aluminum Series front coilovers and remote reservoir rear shocks with integrated bump zones, 7/8-inch shafts, and vehicle-specific valving. Each shock features a CDC Valve with 10 compression damping settings, allowing adjustment from softer ride comfort to firmer control. Corrosion-resistant CAD-plated shock bodies, 6061 aircraft-grade aluminum CNC-machined components, and ICON-engineered front and rear springs provide durability for demanding use. Application Note 206: This configuration is intended for 4WD models and includes a front differential drop to improve CV joint operating angles. For 2WD Tacoma models, the differential drop is not required, and components may be purchased individually for full system functionality.

Features:

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts and vehicle-specific valving

• 2.5 Series front coilovers with remote reservoirs for improved damping, control, and shock cooling

• Adjustable front coilovers provide 1.25 to 3 inches of lift over stock

• CDC Valves provide 10 settings of compression damping adjustment

• Tubular upper control arms improve strength, durability, alignment correction, and drivability

• ICON Delta Joint PRO provides 90 degrees of total articulation and is serviceable and rebuildable

• Tubular rear upper and lower links improve articulation and allow pinion angle adjustment

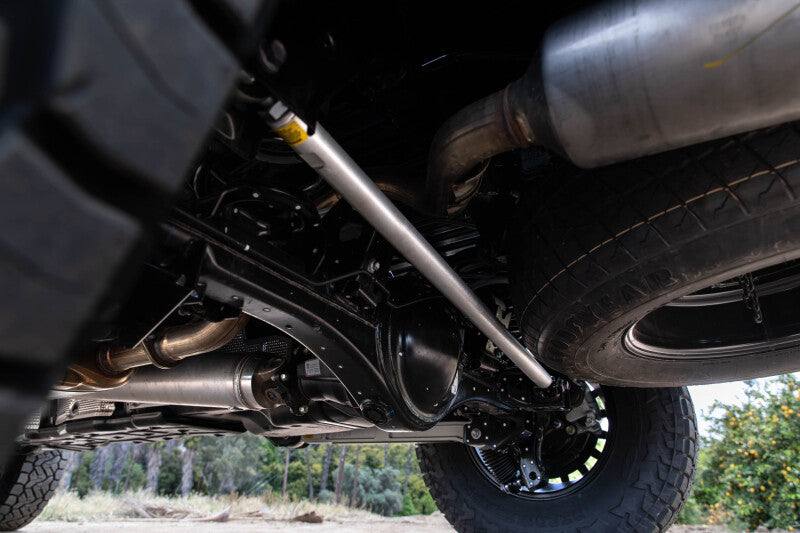

• Billet aluminum rear track bar offers on-vehicle adjustment to center the rear axle

• Triple-rate rear coil springs improve ride quality, bottoming resistance, and off-road performance

• Front differential drop improves CV joint operating angles on 4WD models

• FK rod end bearings provide extended service life and minimal deflection

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered front and rear coil springs

• Designed to improve wheel travel and ride quality over stock

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
