ICON K53301 Stage 11 Suspension System for 2024-2025 Toyota Tacoma

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear upper and lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

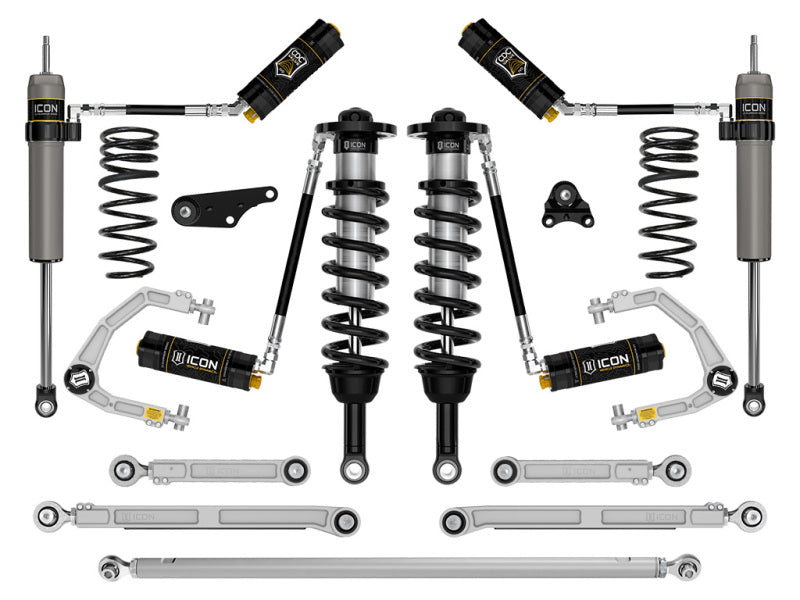

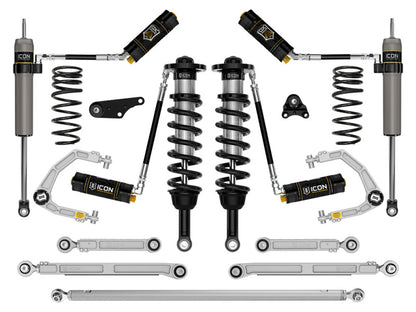

The ICON Vehicle Dynamics K53301 Stage 11 suspension system is engineered for the 2024-2025 Toyota Tacoma and delivers improved control, wheel travel, ride quality, and off-road capability. The system includes 2.5 Series front coilovers with remote reservoirs, 2.5 Aluminum Series rear shocks with remote reservoirs and integrated bump zones, billet aluminum upper control arms, adjustable rear links, an adjustable rear track bar, and triple-rate rear coil springs. Front lift is adjustable from 1.25 to 3 inches over stock, while the rear springs provide approximately 0.5 inch of lift.

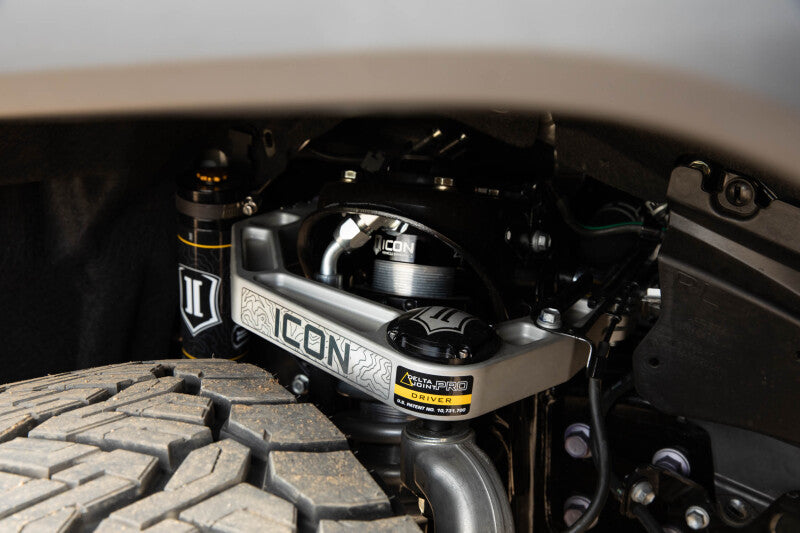

The included billet aluminum upper control arms correct front suspension geometry and provide on-vehicle camber and caster adjustment. Each arm uses the serviceable and rebuildable ICON Delta Joint PRO, which offers 90 degrees of total articulation to help maintain smooth suspension movement through full bump and droop travel while reducing bind. The rear upper and lower links use ICON double adjusters for on-vehicle pinion angle adjustment, combining dual-durometer greaseless bushings with FK rod ends for articulation, durability, and reduced road noise.

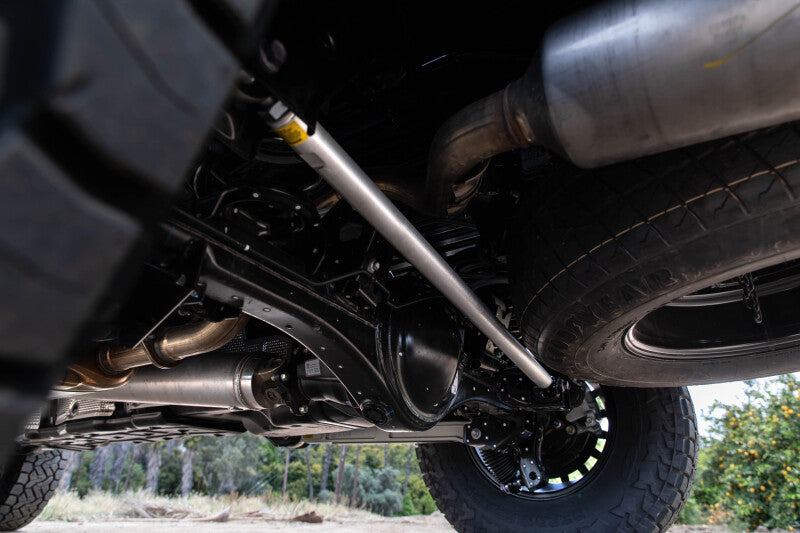

ICON 2.5 Aluminum Series shocks feature vehicle-specific valving and CDC Valves with 10 compression damping settings, allowing adjustment from softer street comfort to firmer off-road control. Remote reservoirs improve heat management, while corrosion-resistant shock bodies, 7/8-inch shafts, and 6061-T6 aircraft-grade aluminum components support long-term performance. The adjustable billet rear track bar helps recenter the rear axle and can be fine-tuned on the vehicle without removal. This kit is configured for 4WD Toyota Tacoma models; 2WD applications do not require the front differential drop, and compatible components may be purchased separately. Professional installation and alignment are recommended.

Features:

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts and vehicle-specific valving

• 2.5 Series front coilovers with remote reservoirs for improved damping, cooling, and vehicle control

• Adjustable front lift range from 1.25 to 3 inches over stock

• Billet aluminum upper control arms with on-vehicle camber and caster adjustment

• ICON Delta Joint PRO with 90 degrees of total articulation

• Triple-rate rear coil springs provide approximately 0.5 inch of rear lift and improved ride control

• Adjustable billet aluminum rear track bar helps recenter the rear axle

• Billet rear upper and lower links with on-vehicle pinion angle adjustment

• CDC Valves provide 10 settings of compression damping adjustment

• Corrosion-resistant shock bodies with 7/8-inch shafts

• FK rod end bearings provide durability and minimal deflection

• 6061-T6 aircraft-grade aluminum CNC-machined components

• Increased wheel travel and improved ride quality over stock

• Front differential drop supports improved CV joint operating angles on 4WD models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
