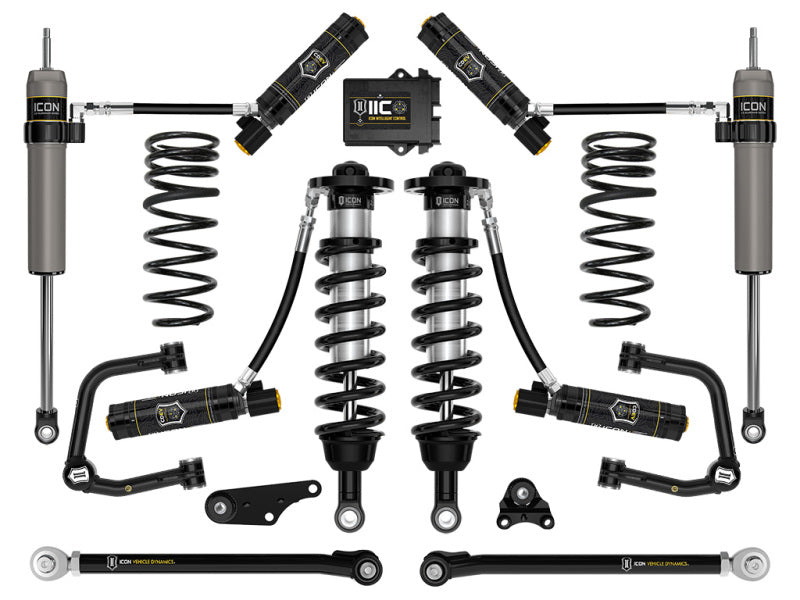

ICON K53300TS Stage 10 Suspension System for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

The ICON K53300TS Stage 10 suspension system is engineered for 2024-2025 Toyota Tacoma models and serious off-road performance. Designed to increase wheel travel, improve damping control, and deliver a more balanced ride, this system enhances vehicle behavior on both pavement and challenging terrain. The package includes vehicle-specific ICON 2.5 Series front coilovers with CDEV-equipped remote reservoirs, ICON-engineered coil springs, and 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts. Remote reservoirs increase oil capacity and cooling surface area to help resist overheating, cavitation, and damper fade during demanding use.
ICON Intelligent Control (IIC) uses onboard sensors to monitor chassis movement and G-forces, allowing near-instant compression damping adjustments at each shock. Drivers can configure and control the system wirelessly through the ICON Intelligent Control app, while the system continues operating automatically after setup. Adjustable front coilovers provide 1.25 to 3 inches of lift over stock, supporting larger wheel and tire combinations while maintaining improved suspension control. Front differential drop brackets help optimize CV joint operating angles and maximize available travel on 4WD models, while polyurethane differential bushings help reduce differential movement under load.
The system also includes tubular upper control arms with ICON’s patented Delta Joint Pro, rear triple-rate coil springs providing 0.5 inch of rear lift, and tubular rear lower links for improved articulation and pinion angle adjustment. Corrosion-resistant CAD-plated shock bodies, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide durability for extended off-road use. This kit is configured for 4WD Toyota Tacoma models. For 2WD applications, front differential drop kit part number 55160 is not required, and components may be purchased individually while retaining full system functionality.

Features:

• ICON Intelligent Control uses onboard sensors and user-defined settings to make near-instant compression damping adjustments

• CDE Valve technology enables in-vehicle compression damping adjustment and active control through ICON Intelligent Control

• 2.5 Series front coilovers with remote reservoirs improve damping, cooling, and vehicle control

• 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts provide a balanced performance tune

• Adjustable front coilovers provide 1.25 to 3 inches of lift over stock

• Front differential drop brackets optimize CV joint angles and maximize available wheel travel on 4WD models

• Patented Delta Joint Pro upper control arms provide 90 degrees of total articulation

• Tubular upper control arms add strength, durability, and alignment correction

• Triple-rate rear coil springs improve ride quality and provide 0.5 inch of rear lift

• Tubular rear lower links improve articulation and allow pinion angle adjustment

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended longevity and minimal deflection

• ICON-engineered front and rear coil springs improve suspension performance

• CNC-machined 6061 aircraft-grade aluminum components

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
