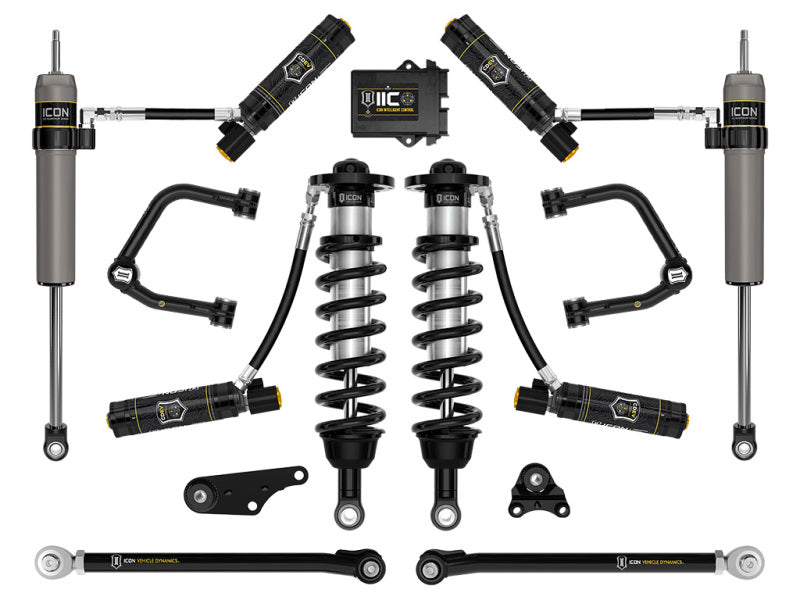

ICON K53300T Stage 10 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 in Front Lift

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

The ICON K53300T Stage 10 suspension system is engineered for 2024-2025 Toyota Tacoma models and drivers who demand improved control, wheel travel, and ride quality on and off the road. Designed around ICON Vehicle Dynamics performance tuning, this system combines vehicle-specific 2.5 Series front coilovers with remote reservoirs, ICON-engineered coil springs, 2.5 Aluminum Series rear remote reservoir shocks, tubular control arms, and rear lower links for a balanced suspension setup. Adjustable front coilovers provide 1.25-3 inches of lift over stock, helping accommodate larger wheel and tire combinations while maintaining a controlled, predictable driving feel.

Features:

• ICON Intelligent Control: Uses onboard sensors to monitor chassis movement and G-forces while making near-instant compression damping adjustments.

• CDEV Technology: Provides electronically adjustable compression damping through ICON Intelligent Control and the ICON mobile app.

• Remote Reservoir Shocks: Increase oil capacity and heat dissipation to help resist overheating, cavitation, and damper fade during demanding use.

• Adjustable Front Coilovers: Provide 1.25-3 inches of front lift over stock for improved clearance and suspension tuning.

• Front Differential Drop Brackets: Improve CV joint operating angles and maximize available front suspension travel on 4WD models.

• 2.5 Series Front Coilovers: Deliver vehicle-specific damping, improved cooling, and enhanced control across the suspension travel range.

• 2.5 Aluminum Series Rear Shocks: Feature remote reservoirs and 7/8-inch shafts for performance that is balanced with the front coilovers.

• Delta Joint Pro Upper Control Arms: Provide 90 degrees of total articulation and support improved suspension movement.

• Tubular Upper Control Arms: Add strength, durability, and alignment correction for improved drivability.

• Tubular Rear Lower Links: Improve rear-end articulation and allow pinion angle adjustment.

• Corrosion-Resistant Shock Bodies: CAD-plated coilover bodies and 7/8-inch shafts support long-term durability.

• FK Rod End Bearings: Help provide extended service life and minimize deflection.

• Aircraft-Grade Aluminum Components: CNC-machined 6061 aluminum components combine strength with reduced weight.

• ICON-Engineered Coil Springs: Tuned specifically for the system to deliver consistent support and suspension performance.

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
