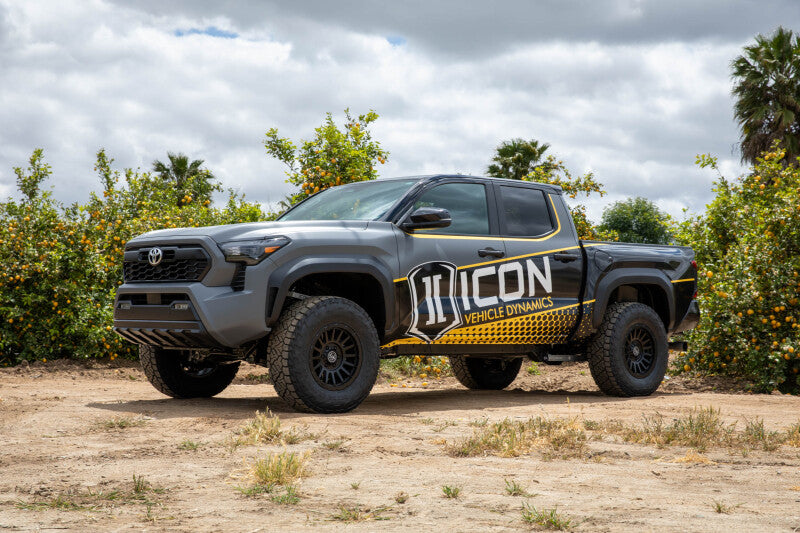

ICON K53300S Stage 10 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Front Lift

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

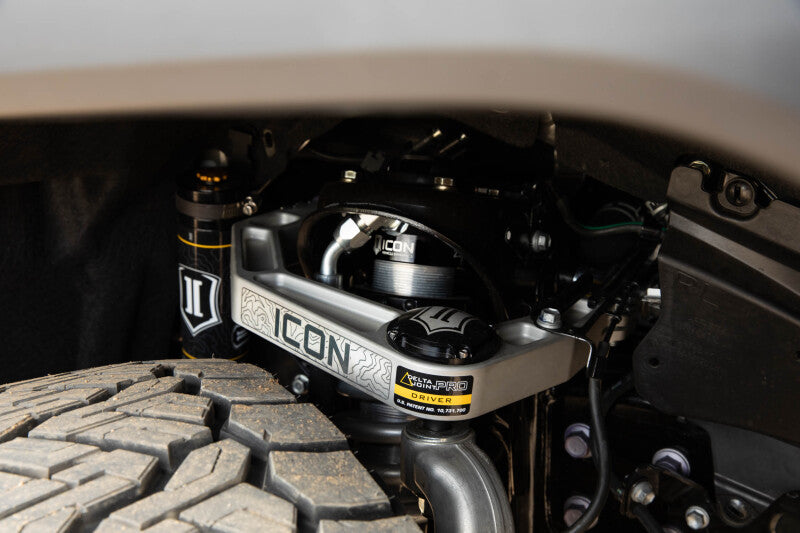

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

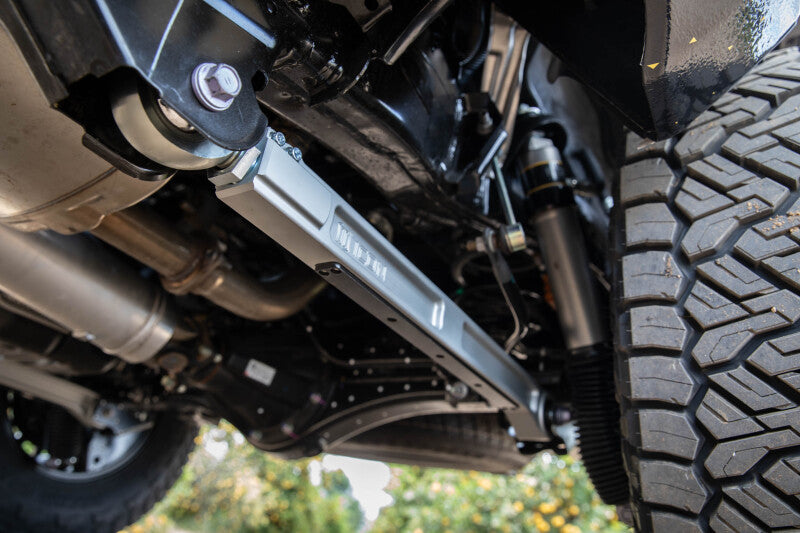

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

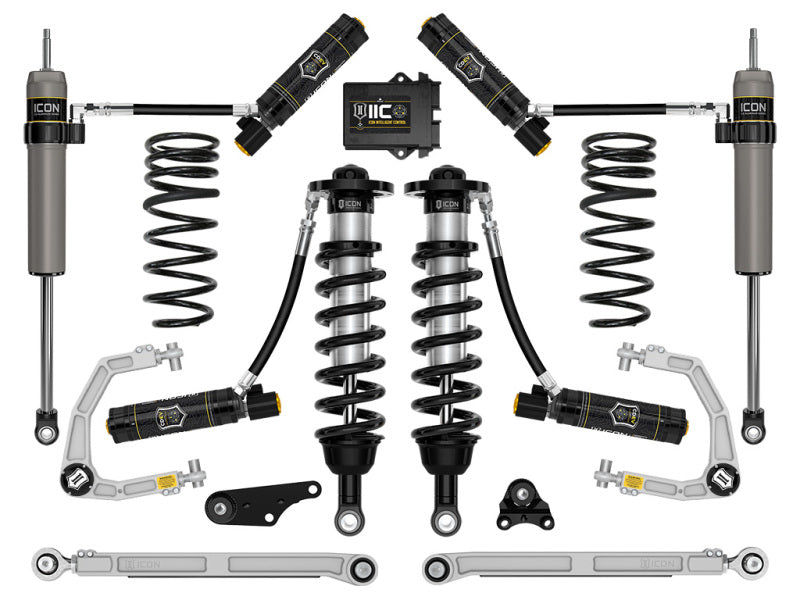

The ICON K53300S Stage 10 suspension system is engineered for serious 2024-2025 Toyota Tacoma drivers who demand improved control, wheel travel, and ride quality on and off the road. Designed for 4WD models, this complete system combines vehicle-specific 2.5 Series front coilovers with CDEV-equipped remote reservoirs, ICON-engineered coil springs, billet aluminum upper control arms, billet rear lower links, and triple-rate rear coil springs. The adjustable front coilovers provide 1.25 to 3 inches of front lift over stock, while the rear springs provide approximately 0.5 inch of lift and a balanced suspension profile.
ICON Intelligent Control (IIC) uses onboard sensors to monitor chassis movement and G-forces, allowing the system to make near-instantaneous compression damping adjustments through the ICON Compression Damping Electronic Valve (CDEV). Wireless control through the ICON Intelligent Control app lets drivers configure damping behavior and terrain-specific settings, after which the system operates automatically. Remote reservoirs increase oil capacity and cooling surface area to help resist overheating, cavitation, and damper fade during demanding use. Corrosion-resistant shock bodies, 7/8-inch shafts, FK rod end bearings, and 6061 aircraft-grade aluminum components support long-term durability and precise suspension operation.
The system includes a front differential drop for improved CV joint operating angles and maximum available front suspension travel on 4WD Tacoma models. Polyurethane differential mounting bushings help reduce differential movement under load, while the billet aluminum upper control arms provide added strength and on-vehicle caster and camber adjustment. ICON's patented Delta Joint Pro delivers 90 degrees of total articulation, and the adjustable rear lower links improve rear articulation while allowing pinion angle adjustment. Application Note 206: This configuration is intended for 4WD models. When installed on a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not required, and the remaining components can be purchased individually with full system functionality.

Features:

• ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces for active compression damping adjustments

• CDEV technology provides electronic, in-vehicle compression damping control through the ICON Intelligent Control system

• 2.5 Series front coilovers with remote reservoirs improve damping performance, cooling, and vehicle control

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts provide a balanced tune with the front coilovers

• Adjustable front coilovers provide 1.25 to 3 inches of front lift over stock

• ICON-engineered triple-rate rear coil springs provide approximately 0.5 inch of rear lift

• Billet aluminum upper control arms add strength and provide on-vehicle caster and camber adjustment

• Patented Delta Joint Pro provides 90 degrees of total articulation

• Billet rear lower links improve articulation and allow on-vehicle pinion angle adjustment

• Front differential drop improves CV joint operating angles and maximizes available wheel travel on 4WD models

• Polyurethane differential mounting bushings help limit differential movement under load

• Corrosion-resistant CAD-plated shock bodies and FK rod end bearings support extended service life

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• Increased wheel travel and improved ride quality over the factory suspension

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
