ICON K53300 Stage 10 Suspension System with Billet Components for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

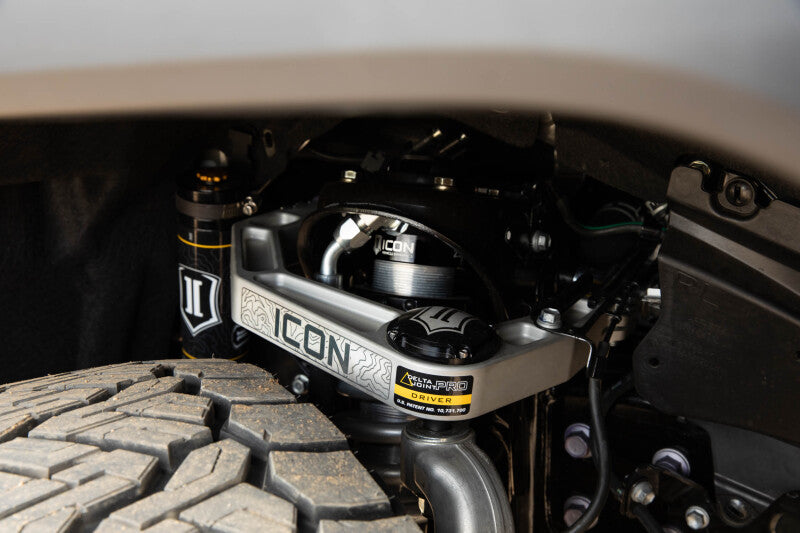

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

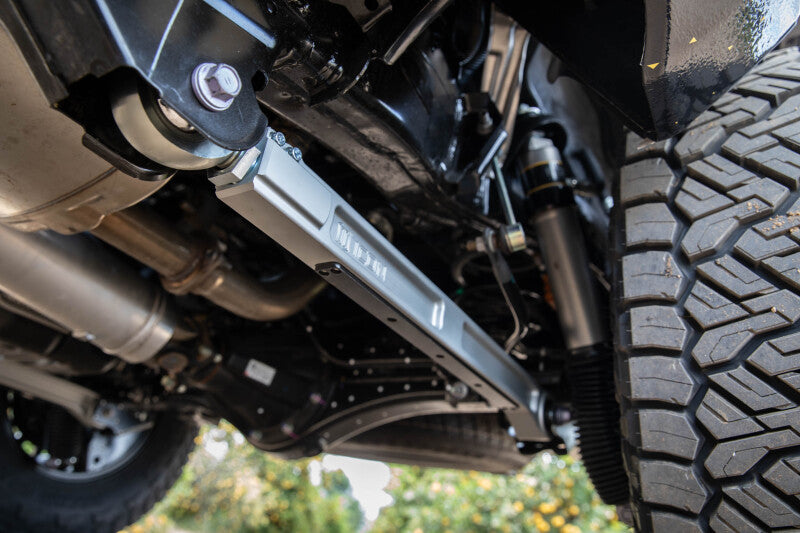

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

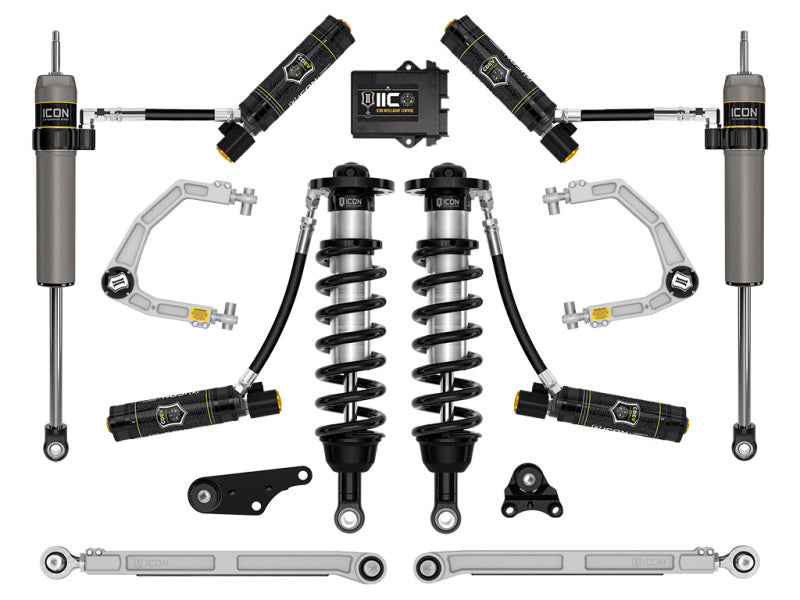

The ICON K53300 Stage 10 Suspension System is engineered for 2024-2025 Toyota Tacoma models and built for drivers who demand improved control, wheel travel, and ride quality on and off the road. This comprehensive system combines vehicle-specific 2.5 Series front coilovers with CDEV-equipped remote reservoirs, ICON-engineered coil springs, 2.5 Aluminum Series rear remote reservoir shocks, billet aluminum upper control arms, and billet rear lower links. Together, these components provide a balanced suspension setup with enhanced damping performance and durable, high-strength construction.
The front coilovers offer adjustable lift from 1.25 to 3 inches over stock, helping accommodate larger wheel and tire combinations while allowing suspension tuning for individual vehicle requirements. Remote reservoirs increase shock oil volume and cooling capacity to help resist overheating and damping fade during demanding driving. ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces, while the Compression Damping Electronic Valve enables near-instant compression adjustments. Settings can be managed wirelessly through the ICON Intelligent Control app, after which the system operates automatically without continuous driver input.
This Stage 10 system includes a front differential drop for 4WD models, improving CV joint operating angles and maximizing available front suspension travel. Polyurethane differential bushings help reduce differential movement under load, while the billet upper control arms provide strength and on-vehicle caster and camber adjustment. The patented Delta Joint Pro offers substantial articulation, and the rear lower links improve articulation while providing pinion angle adjustment. Corrosion-resistant shock bodies, 7/8-inch shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components support long-term performance. Application Note 206: The kit is configured for 4WD Toyota Tacoma models. The front differential drop kit is not required for 2WD applications; select components may be purchased individually for 2WD installation.

Features:

• ICON Intelligent Control actively adjusts compression damping using onboard chassis movement and G-force sensors

• CDEV technology enables in-vehicle and automatic compression damping adjustments

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling

• Adjustable front lift from 1.25 to 3 inches over stock

• 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts

• Front differential drop improves CV joint operating angles on 4WD models

• Billet aluminum upper control arms provide increased strength and on-vehicle caster and camber adjustment

• Patented Delta Joint Pro provides 90 degrees of total articulation

• Billet rear lower links improve articulation and allow pinion angle adjustment

• Polyurethane differential bushings help limit differential movement under load

• Corrosion-resistant CAD-plated shock bodies and FK rod-end bearings provide durability

• CNC-machined 6061 aircraft-grade aluminum components

• ICON-engineered coil springs improve suspension performance and vehicle feel

• Designed to increase wheel travel and improve ride quality over stock

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
