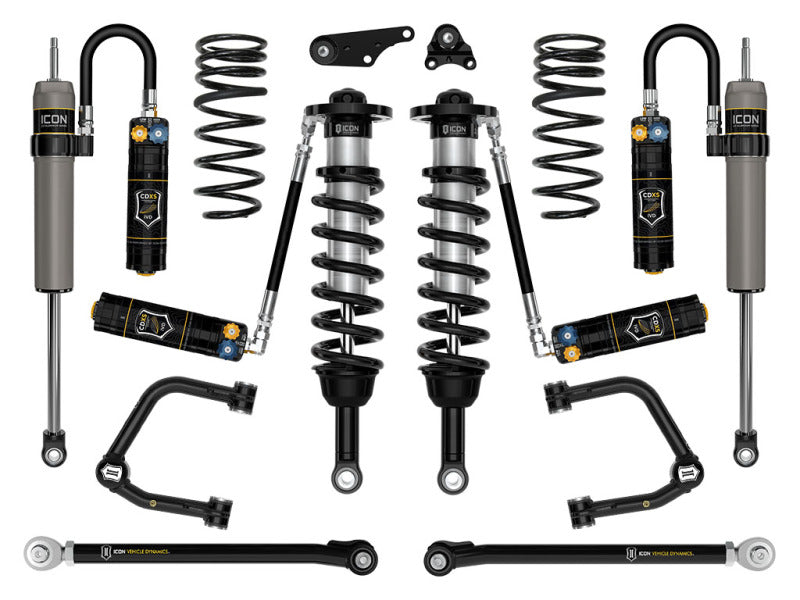

ICON K53299TS Stage 9 Suspension System for 2024-2026 Toyota Tacoma

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDXS equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 9 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

The ICON K53299TS Stage 9 suspension system is engineered for 2024-2026 Toyota Tacoma models and built for drivers who demand improved control, wheel travel, and ride quality on and off the road. This complete system combines vehicle-specific 2.5 Series front coilovers, remote reservoir rear shocks, ICON-engineered coil springs, tubular control arms, and rear lower links for a balanced suspension setup. Adjustable front coilovers provide 1.25-3 inches of front lift over stock, helping accommodate larger wheel and tire combinations while maintaining a performance-focused suspension geometry.

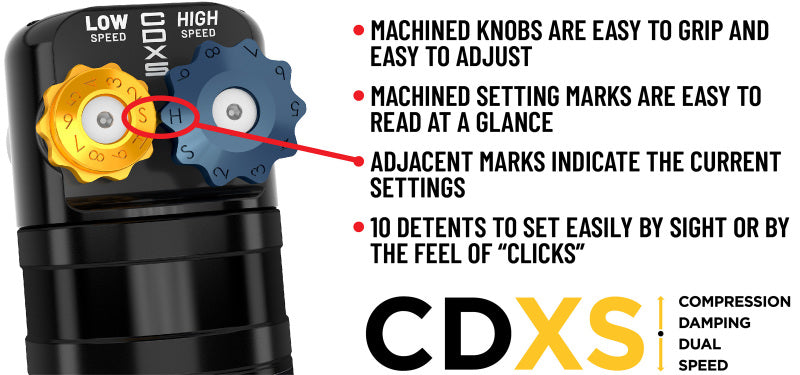

The front coilovers feature ICON Compression Damping Dual Speed (CDXS) technology with independently adjustable high-speed and low-speed compression settings. Ten detented positions for each adjustment knob allow you to fine-tune handling response and overall suspension aggressiveness. Remote reservoirs increase shock oil capacity and cooling surface area, helping resist heat buildup, cavitation, and damping fade during demanding driving. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and 6061 aircraft-grade aluminum CNC-machined components provide durability for extended use.
This ICON suspension system includes a front differential drop for improved CV joint operating angles and increased available front suspension travel on 4WD Toyota Tacoma models. Polyurethane differential mounting bushings help reduce differential movement under load. The patented Delta Joint Pro upper control arms provide 90 degrees of total articulation, while tubular construction adds strength and supports alignment correction. Triple-rate rear coil springs deliver improved ride quality with approximately 0.5 inch of rear lift, and tubular rear lower links improve articulation while allowing pinion angle adjustment. Application Note 206: This configuration is intended for 4WD models. When installed on a 2WD Tacoma, front differential drop kit part number 55160 is not required, and the remaining components may be purchased individually for full system functionality.

Features:

• CDXS-adjustable shock absorbers provide independent high-speed and low-speed compression control

• Front coilovers offer 1.25-3 inches of adjustable lift over stock

• Remote reservoir front coilovers improve damping control and shock cooling

• 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts

• Front differential drop improves CV joint operating angles on 4WD models

• Patented Delta Joint Pro upper control arms provide 90 degrees of total articulation

• Triple-rate rear coil springs improve ride quality and provide approximately 0.5 inch of rear lift

• Tubular upper control arms add strength and support alignment correction

• Tubular rear lower links improve articulation and allow pinion angle adjustment

• Corrosion-resistant CAD-plated shock bodies provide long-term durability

• FK rod end bearings help reduce deflection and extend service life

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• ICON-engineered front and rear coil springs deliver vehicle-specific performance

• Designed for 2024-2026 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
