ICON K53299T Stage 9 Tubular Suspension System for 2024-2026 Toyota Tacoma

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDXS equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 9 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

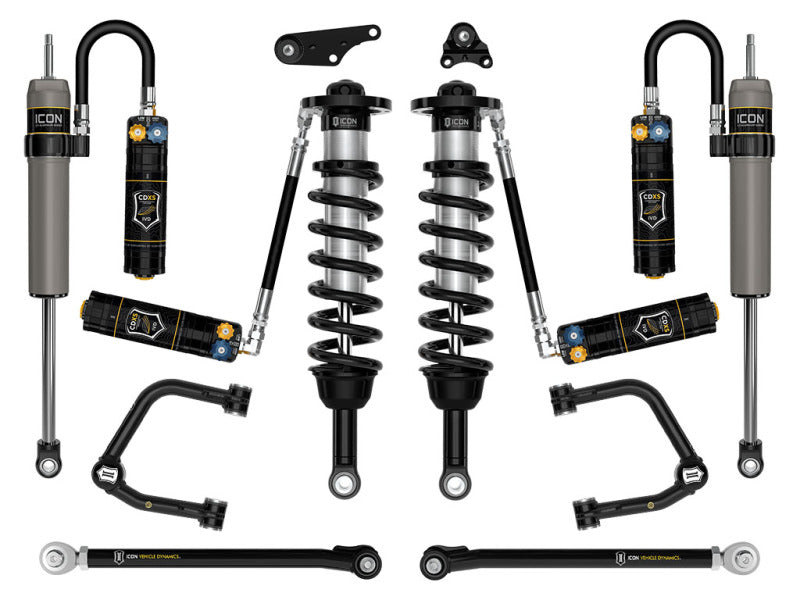

The ICON K53299T Stage 9 suspension system is engineered for 2024-2026 Toyota Tacoma models, delivering increased wheel travel, improved damping, and enhanced vehicle control on and off the road. Designed for serious driving applications, this system combines vehicle-specific 2.5 Series front coilovers, remote reservoirs, ICON-engineered coil springs, and 2.5 Aluminum Series rear shocks for a balanced performance setup. Adjustable front coilovers provide 1.25 to 3 inches of lift over stock, allowing room for larger, more aggressive wheel and tire combinations while maintaining a controlled ride.

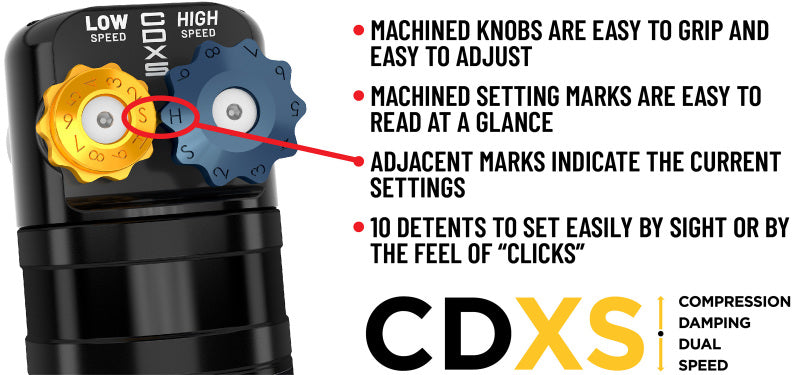

The CDXS-equipped shocks feature independent high-speed and low-speed compression adjustment, with 10 detented settings for each adjustment range. This allows drivers to fine-tune handling response and overall suspension aggressiveness for different terrain and driving conditions. Remote reservoirs increase oil capacity and cooling surface area to help resist heat buildup, cavitation, and damping fade during demanding use. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod-end bearings, and 6061 aircraft-grade aluminum CNC-machined components provide long-term durability.
The system includes tubular upper control arms with ICON’s patented Delta Joint Pro, providing 90 degrees of total articulation, along with tubular rear lower links that improve rear-end articulation and allow pinion-angle adjustment. Front differential drop brackets improve the operating angle of CV joints and maximize available suspension travel on 4WD models, while polyurethane differential mounting bushings help limit differential movement under load. Application Note #206: The differential drop kit is not required for 2WD Toyota Tacoma models. Components may be purchased individually for 2WD installation, with 2WD-specific systems planned separately.
Designed and manufactured by ICON, the K53299T Stage 9 system provides increased suspension travel, improved ride quality, and precise adjustability for 2024-2026 Toyota Tacoma applications. Professional installation and alignment are recommended after installation.

Features:

• CDXS-equipped shock absorbers provide independent high-speed and low-speed compression adjustment

• 10 detented adjustment settings for both high-speed and low-speed compression control

• Adjustable front coilovers provide 1.25 to 3 inches of lift over stock

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling

• 2.5 Aluminum Series rear remote-reservoir shocks with 7/8-inch shafts provide a balanced suspension tune

• Front differential drop brackets improve CV joint operating angles and maximize wheel travel on 4WD models

• Tubular upper control arms include the patented Delta Joint Pro with 90 degrees of total articulation

• Tubular rear lower links improve rear articulation and permit pinion-angle adjustment

• Tubular upper control arms provide added strength, durability, and alignment correction

• Corrosion-resistant CAD-plated coilover bodies and 7/8-inch shafts improve durability

• FK rod-end bearings provide extended service life and reduced deflection

• Polyurethane differential mounting bushings help limit differential movement under load

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• ICON-engineered coil springs improve suspension performance and vehicle feel

• Fits 2024-2026 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
