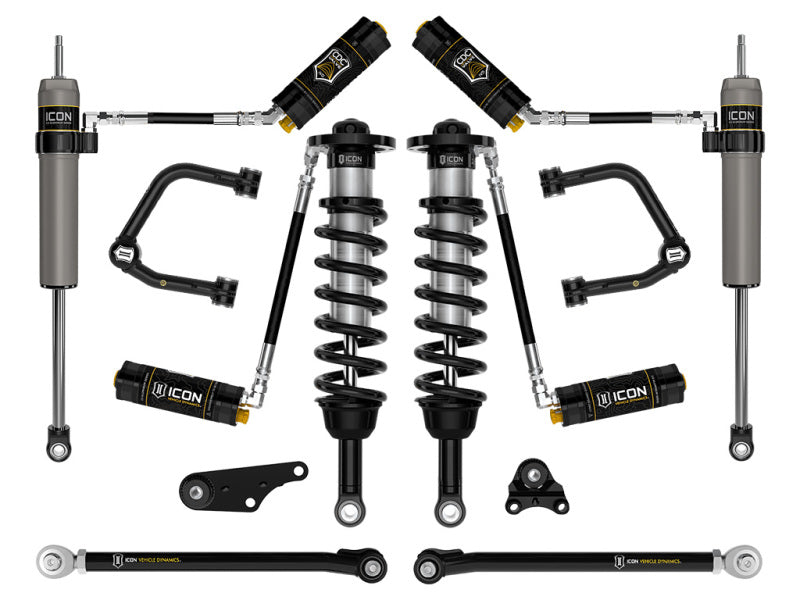

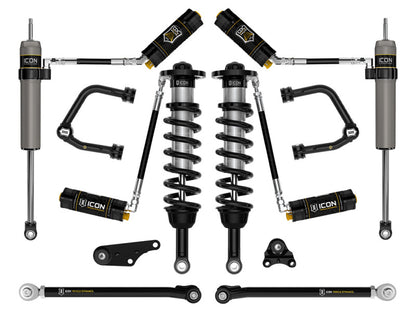

ICON K53298T Stage 8 Suspension System with Tubular Control Arms for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 8 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Upgrade your 2024-2025 Toyota Tacoma with the ICON K53298T Stage 8 Suspension System, engineered for drivers who demand improved control, increased wheel travel, and dependable performance on and off the road. This vehicle-specific system combines adjustable 2.5 Series front coilovers, remote reservoir rear shocks, engineered coil springs, tubular control arms, rear lower links, and supporting differential components for a balanced suspension package.

The front coilovers feature remote reservoirs that increase shock oil capacity and cooling surface area to help resist overheating, cavitation, and damping fade during demanding driving. Externally adjustable ICON CDC Valves provide 10 compression damping settings, allowing the suspension to be tuned from softer to firmer performance. Adjustable front lift height ranges from 1.25 to 3 inches over stock, providing clearance for larger wheel and tire combinations while maintaining a controlled, confidence-inspiring ride.

This ICON suspension system includes a front differential drop for 4WD models, helping improve CV joint operating angles and maximize available suspension travel. Polyurethane differential mounting bushings help reduce differential movement under load, while the included tubular upper control arms use the patented Delta Joint Pro for up to 90 degrees of total articulation. Tubular rear lower links improve rear-end articulation and allow pinion angle adjustment. CAD-plated shock bodies, 7/8-inch shafts, FK rod ends, and CNC-machined 6061 aircraft-grade aluminum components support long-term durability and precise suspension operation.

Application Note #206: The ICON K53298T is configured for 4WD 2024-2025 Toyota Tacoma models. When installing on a 2WD Tacoma, front differential drop kit part number 55160 is not required; remaining components may be purchased individually for full system functionality. Professional installation and alignment are recommended after installation.

Features:

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts provide a balanced performance tune
• ICON CDC Valves provide 10 settings of externally adjustable compression damping
• Adjustable front coilovers provide 1.25 to 3 inches of lift over stock
• Front differential drop helps improve CV joint operating angles on 4WD models
• Patented Delta Joint Pro upper control arms provide up to 90 degrees of total articulation
• Tubular upper control arms add strength, durability, and alignment correction
• Tubular rear lower links improve articulation and allow pinion angle adjustment
• Polyurethane differential bushings help limit differential movement under load
• CAD-plated shock bodies and 7/8-inch shafts provide corrosion resistance and durability
• FK rod end bearings support extended service life and minimal deflection
• 6061 aircraft-grade aluminum CNC-machined components
• ICON-engineered coil springs improve suspension response and ride quality
• Designed to increase wheel travel and improve on-road and off-road control

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
