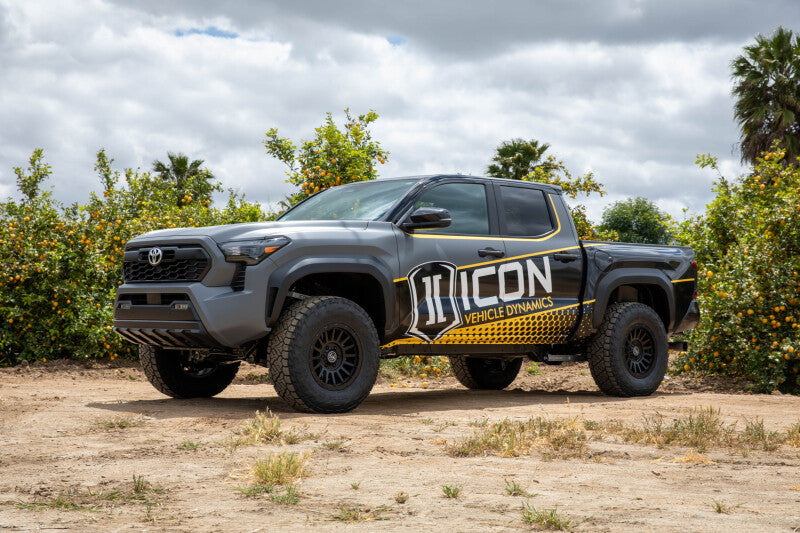

ICON K53298S Stage 8 Suspension System for 2024-2025 Toyota Tacoma

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

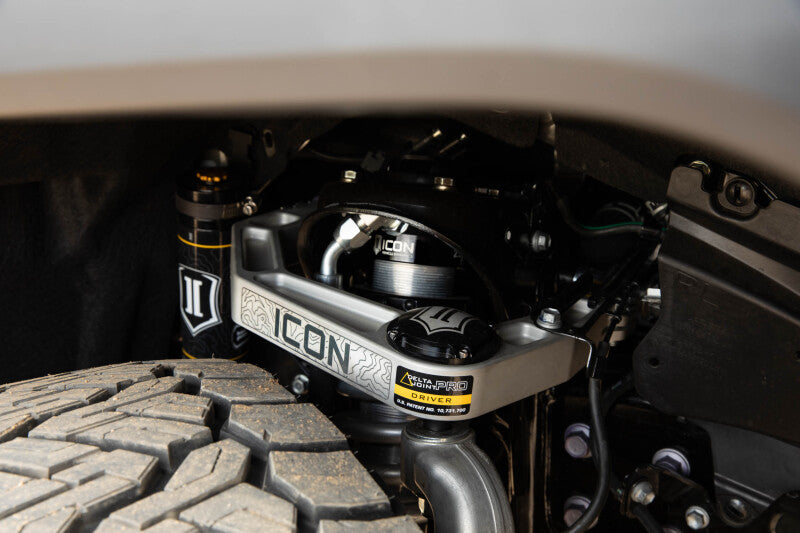

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

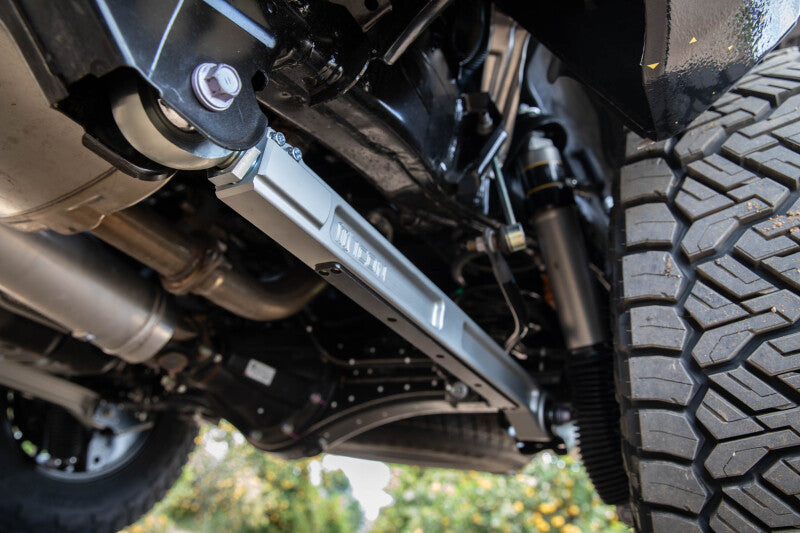

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

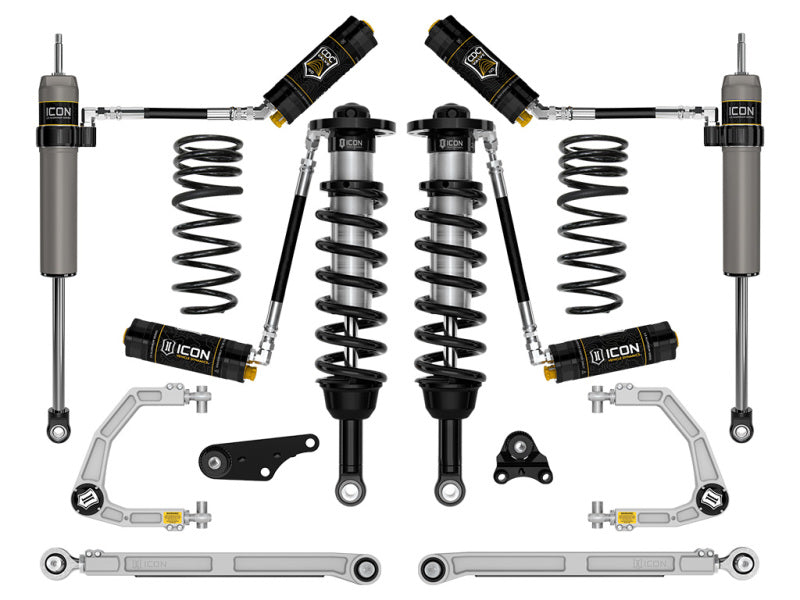

The ICON Vehicle Dynamics K53298S Stage 8 suspension system is engineered for 2024-2025 Toyota Tacoma models and delivers improved control, wheel travel, ride quality, and off-road capability. Designed for serious drivers, this system combines ICON 2.5 Aluminum Series front coilovers and remote reservoir rear shocks with vehicle-specific valving to create balanced performance from front to rear. Adjustable front coilovers provide 1.25 to 3 inches of lift over stock, while triple-rate rear springs provide approximately 0.5 inch of rear lift with a comfortable droop rate, controlled ride rate, and firm overload rate for improved bottoming resistance.

Features:

• 2.5 Aluminum Series front coilovers with remote reservoirs improve damping control and shock cooling

• 2.5 Aluminum Series remote reservoir rear shocks feature 7/8-inch shafts and integrated bump zones

• CDC Valves provide 10 settings of compression damping adjustment from soft to firm

• Billet aluminum upper control arms improve strength, clearance, and on-vehicle caster and camber adjustment

• Patented ICON Delta Joint PRO provides 90 degrees of total articulation and is serviceable and rebuildable

• ICON billet rear lower links allow on-vehicle pinion angle adjustment and improve rear suspension articulation

• Dual-durometer bushings and FK rod ends help balance articulation, durability, and reduced road noise

• Triple-rate rear coil springs improve ride quality, off-road performance, and bottoming resistance

• Front differential drop helps optimize CV joint operating angles on 4WD models

• Corrosion-resistant CAD-plated shock bodies provide long-term durability

• 6061 aircraft-grade aluminum CNC-machined components deliver strength with reduced weight

• ICON-engineered front and rear coil springs improve suspension balance and performance

• Increased wheel travel and improved ride quality over the factory suspension

• Designed for 2024-2025 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
