ICON K53297TS Stage 7 Suspension System for 2024-2025 Toyota Tacoma

$4,858.99

Skip to product information
1 of 6

Regular price $4,858.99
Sale price $4,858.99 Regular price $4,858.99
Shipping calculated at checkout.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered coil springs

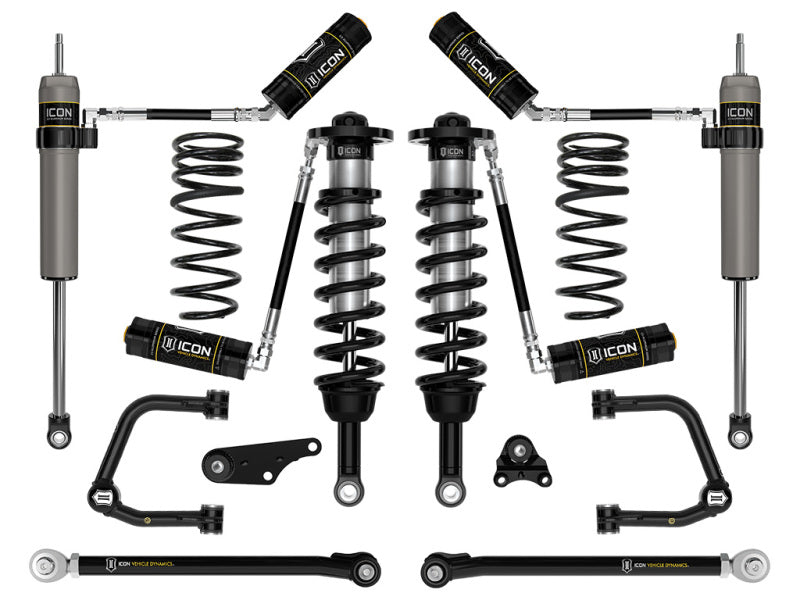

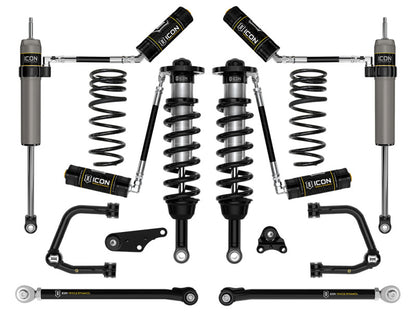

The ICON Vehicle Dynamics K53297TS Stage 7 suspension system is engineered for the 2024-2025 Toyota Tacoma and is designed to improve handling, wheel travel, ride quality, and off-road performance. This complete system combines adjustable front coilovers, remote reservoir rear shocks, tubular upper control arms, tubular rear lower links, triple-rate rear coil springs, and a front differential drop for compatible 4WD models. The result is corrected front-end geometry, increased suspension clearance, improved damping, and greater control on both pavement and demanding trails.
The tubular upper control arms add strength, durability, and alignment correction while incorporating the patented ICON Delta Joint PRO. With 90 degrees of total articulation, the serviceable and rebuildable joint helps the front suspension achieve full bump and droop travel while reducing bind. Adjustable front coilovers provide 1.25 to 3 inches of front lift over stock, while the triple-rate rear springs provide approximately 0.5 inches of rear lift. Their progressive design supports comfortable droop and ride rates with a firmer overload rate for improved bottoming resistance and off-road capability.

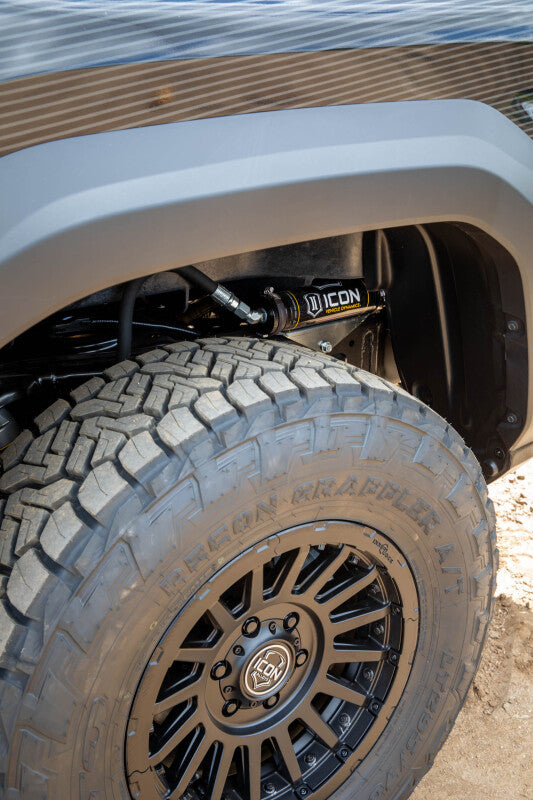

ICON 2.5 Aluminum Series remote reservoir shocks use vehicle-specific valving to balance front and rear suspension performance, improve cooling, and provide consistent damping. Tubular rear lower links with dual-durometer greaseless bushings and FK rod ends improve articulation, reduce deflection, and allow pinion angle adjustment while helping isolate road noise and vibration. CNC-machined 6061 aircraft-grade aluminum components, corrosion-resistant CAD-plated shock bodies, and ICON-engineered coil springs provide durable performance for serious Tacoma drivers. Application Note #206: This kit is configured for 4WD models. For 2WD applications, the front differential drop is not required, and compatible components may be purchased individually; 2WD-specific kits are forthcoming.

Features:

  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8-inch shafts for enhanced damping and balanced performance
  • Front differential drop for improved CV joint operating angles and increased wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for improved damping, control, and shock cooling
  • Tubular upper control arms with patented Delta Joint PRO and 90 degrees of total articulation
  • Triple-rate rear coil springs for improved ride quality, performance, and approximately 0.5 inches of rear lift
  • Tubular upper control arms for added strength, durability, and alignment correction
  • Tubular rear lower links for improved articulation and pinion angle adjustment
  • Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts
  • FK rod end bearings for long service life and minimal deflection
  • Adjustable front coilovers provide 1.25 to 3 inches of lift over stock
  • Increased wheel travel and improved ride quality compared with stock suspension
  • CNC-machined 6061 aircraft-grade aluminum components
  • ICON-engineered coil springs

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
