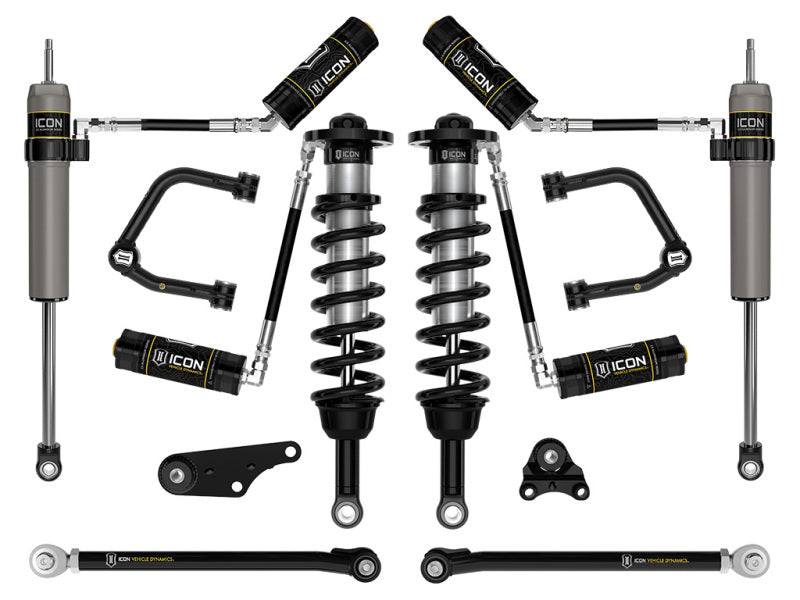

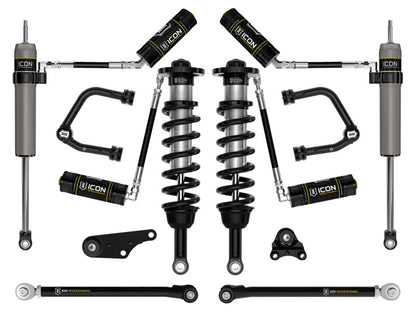

ICON K53297T Stage 7 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Lift

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 7 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

The ICON Vehicle Dynamics K53297T Stage 7 Suspension System is engineered for 2024-2025 Toyota Tacoma models and serious off-road performance. Designed to increase wheel travel, improve damping capability, and enhance overall vehicle control, this system delivers a balanced ride both on and off the road. The kit is configured for 4WD applications and combines vehicle-specific components for improved suspension geometry, durability, and ride quality.
The system includes ICON 2.5 Series front coilovers with remote reservoirs and ICON-engineered coil springs. Adjustable coilover settings provide 1.25-3 inches of front lift over stock, supporting larger and more aggressive wheel and tire combinations. Remote reservoirs increase shock oil capacity and cooling surface area, helping resist overheating, cavitation, and damper fade during demanding driving. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and 6061 aircraft-grade aluminum CNC-machined components provide dependable performance under hard use.
Front differential drop brackets help optimize CV joint operating angles and maximize available front suspension travel on 4WD models. Polyurethane differential mounting bushings help limit differential movement under load. Tubular upper control arms provide increased strength, durability, and alignment correction, while the patented Delta Joint Pro offers 90 degrees of total articulation. Tubular rear lower links improve rear-end articulation and allow pinion angle adjustment. The rear suspension uses 2.5 Aluminum Series remote reservoir shocks with 7/8-inch shafts for performance and balanced damping with the front coilovers.
Application Note: This system is configured for 4WD 2024-2025 Toyota Tacoma models. When installing on a 2WD Tacoma, front differential drop kit part number 55160 is not required; the remaining components may be purchased individually for full system functionality. 2WD-specific kits may be available separately.

Features:

• 2.5 Series front coilovers with remote reservoirs improve damping, vehicle control, and shock cooling

• Adjustable coilovers provide 1.25-3 inches of front lift over stock

• 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts provide balanced performance with the coilovers

• Front differential drop brackets optimize CV joint operating angles and maximize wheel travel on 4WD models

• Polyurethane differential mounting bushings help limit differential movement under load

• Tubular upper control arms improve strength, durability, and alignment correction

• Patented Delta Joint Pro provides 90 degrees of total articulation

• Tubular rear lower links improve articulation and allow pinion angle adjustment

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and minimal deflection

• ICON-engineered coil springs improve suspension performance and ride quality

• 6061 aircraft-grade aluminum CNC-machined components provide strength and durability

• Increased wheel travel and improved ride quality over stock

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
