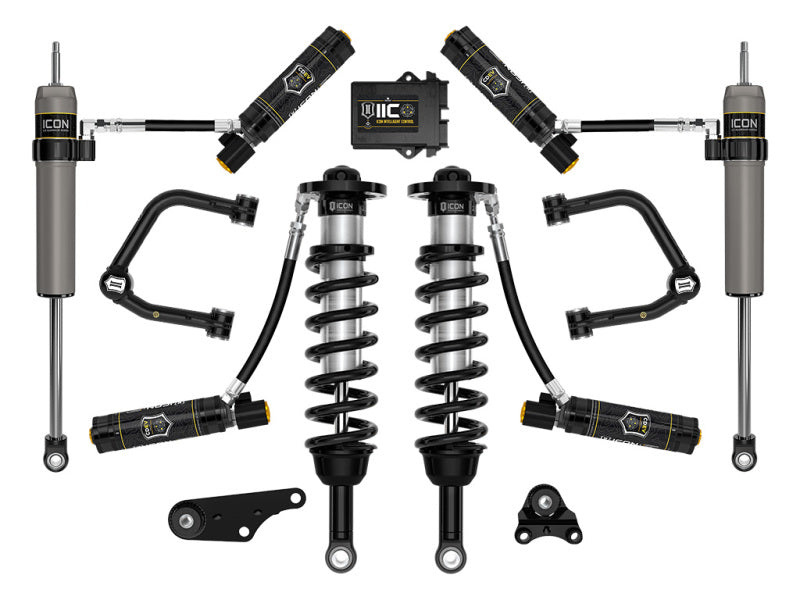

ICON K53296T Stage 6 Suspension System with Tubular UCAs for 2024-2025 Toyota Tacoma

$6,051.99

Skip to product information
1 of 7

Regular price $6,051.99
Sale price $6,051.99 Regular price $6,051.99
Shipping calculated at checkout.
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • FK Rod End bearings for extended longevity and minimal deflection
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered coil springs

The ICON K53296T Stage 6 Suspension System is engineered for 2024-2025 Toyota Tacoma models and drivers who demand improved control, wheel travel, and ride quality on and off the road. The system combines vehicle-specific 2.5 Series front coilovers with CDEV-equipped remote reservoirs, ICON-engineered coil springs, tubular upper control arms, and 2.5 Aluminum Series rear remote reservoir shocks. Adjustable front coilovers provide 1.25 to 3 inches of lift over stock, supporting larger and more aggressive wheel and tire combinations while maintaining a balanced suspension setup.
ICON Intelligent Control (IIC) uses onboard sensors to monitor chassis movement and G-forces, allowing near-instant compression damping adjustments through the Compression Damping Electronic Valve (CDEV). Drivers can configure and control the system wirelessly through the ICON Intelligent Control app, while the system continues to adjust damping without requiring constant driver input. Remote reservoirs increase shock oil volume and cooling capacity to help resist heat buildup, cavitation, and damping fade during demanding use. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, 6061 aircraft-grade aluminum components, and FK rod end bearings provide durable performance with minimal deflection.
The included tubular upper control arms feature the patented Delta Joint Pro with 90 degrees of total articulation, along with alignment correction for improved drivability. On 4WD models, the front differential drop brackets help improve the operating angle of the CV joints, maximize available suspension travel, and reduce the potential for CV bind. Polyurethane differential mounting bushings help limit differential movement under load. This configuration is designed for 4WD Toyota Tacoma applications. For 2WD installation, front differential drop kit part number 55160 is not required, and the remaining components may be purchased individually while retaining system functionality.

Features:

  • ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces for active compression damping adjustment
  • CDEV technology enables in-vehicle and automatic compression damping changes
  • 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling
  • Adjustable front coilovers provide 1.25 to 3 inches of lift over stock
  • 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts
  • Tubular upper control arms provide added strength, durability, and alignment correction
  • Patented Delta Joint Pro offers 90 degrees of total articulation
  • Front differential drop brackets improve CV joint operating angles on 4WD models
  • Polyurethane differential bushings help limit differential movement under load
  • Corrosion-resistant CAD-plated shock bodies and 6061 aircraft-grade aluminum components
  • FK rod end bearings provide extended service life and minimal deflection
  • ICON-engineered coil springs improve suspension balance and ride quality
  • Increased wheel travel and improved vehicle control over stock suspension

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
