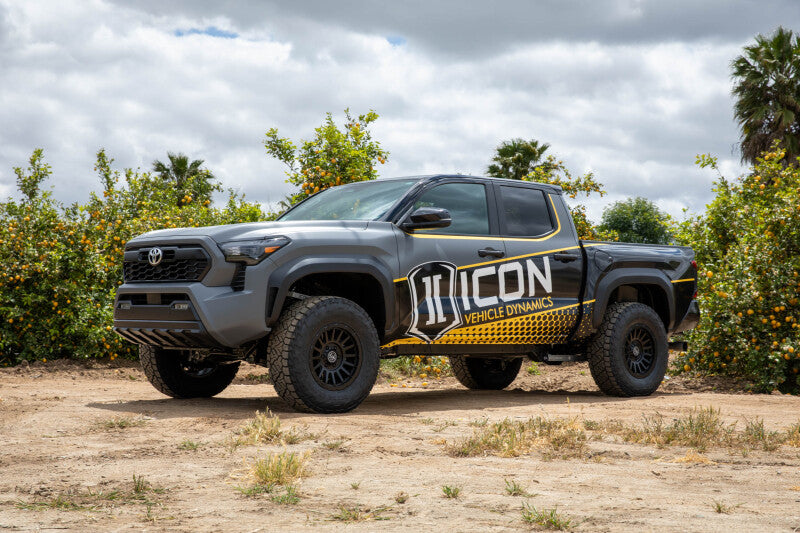

ICON K53296S Stage 6 Suspension System with Billet Upper Control Arms for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

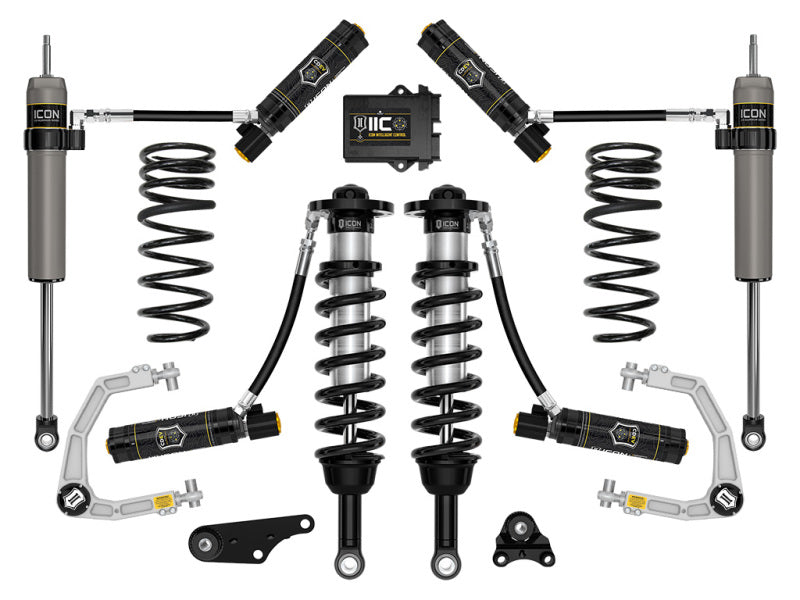

The ICON K53296S Stage 6 Suspension System is engineered for serious 2024-2025 Toyota Tacoma drivers seeking improved wheel travel, damping performance, vehicle control, and ride quality on and off the road. This system is designed for 4WD Tacoma models and combines vehicle-specific 2.5 Series front coilovers, remote reservoir technology, rear shocks, triple-rate coil springs, billet aluminum upper control arms, and front differential drop components into a complete performance-focused suspension package.
The front coilovers feature ICON Intelligent Control (IIC) and Compression Damping Electronic Valve (CDEV) technology. Onboard sensors monitor chassis movement and G-forces while the system makes near-instantaneous compression damping adjustments based on terrain and user-defined settings. Wireless control through the ICON Intelligent Control app allows drivers to configure the system from a compatible phone, after which the suspension can operate automatically. Height-adjustable front coilovers provide 1.25-3 inches of lift over stock, supporting larger wheel and tire combinations while maintaining improved suspension travel.

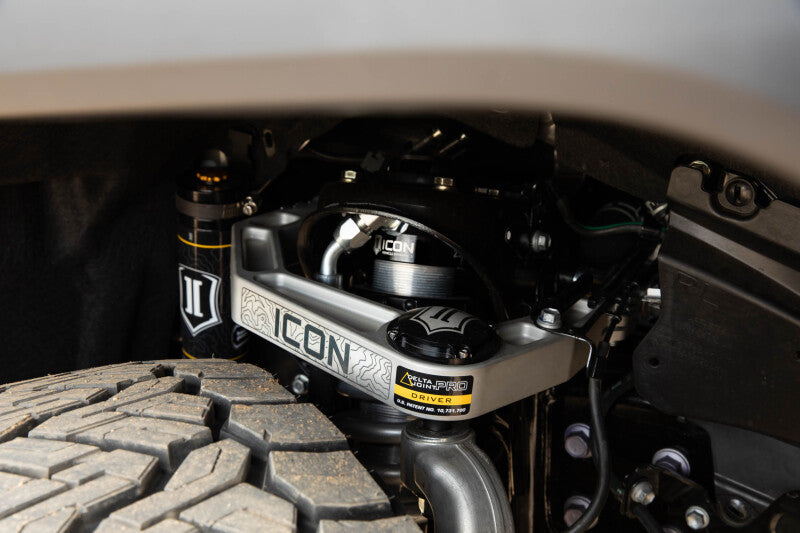

Remote reservoirs increase shock oil capacity and cooling surface area to help resist overheating, cavitation, and damping fade during demanding use. The 2.5 Aluminum Series rear shocks use 7/8-inch shafts and are matched to ICON-engineered triple-rate rear coil springs that provide approximately 0.5 inch of rear lift. Billet aluminum upper control arms add strength and provide on-vehicle caster and camber adjustment. Their patented Delta Joint Pro offers 90 degrees of total articulation for improved suspension movement and durability.
The included front differential drop brackets help improve CV joint operating angles and maximize available front suspension travel on 4WD models. Polyurethane differential mounting bushings help limit differential movement under load, while corrosion-resistant CAD-plated shock bodies, FK rod end bearings, and 6061 aircraft-grade aluminum components support long-term performance. For 2WD Tacoma installation, front differential drop kit part number 55160 is not required, and the remaining components may be purchased individually for full system functionality.

Features:

• ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces while adjusting compression damping

• CDEV technology enables in-vehicle and active compression damping adjustments

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling

• Adjustable front coilovers provide 1.25-3 inches of lift over stock

• 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts

• Triple-rate rear coil springs provide approximately 0.5 inch of rear lift

• Billet aluminum upper control arms add strength and provide caster and camber adjustment

• Patented Delta Joint Pro upper control arm joints provide 90 degrees of total articulation

• Front differential drop brackets improve CV operating angles on 4WD models

• Polyurethane differential bushings help reduce differential movement under load

• Corrosion-resistant CAD-plated shock bodies support durability

• FK rod end bearings provide extended longevity and reduced deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered front and rear coil springs

• Designed for 2024-2025 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
