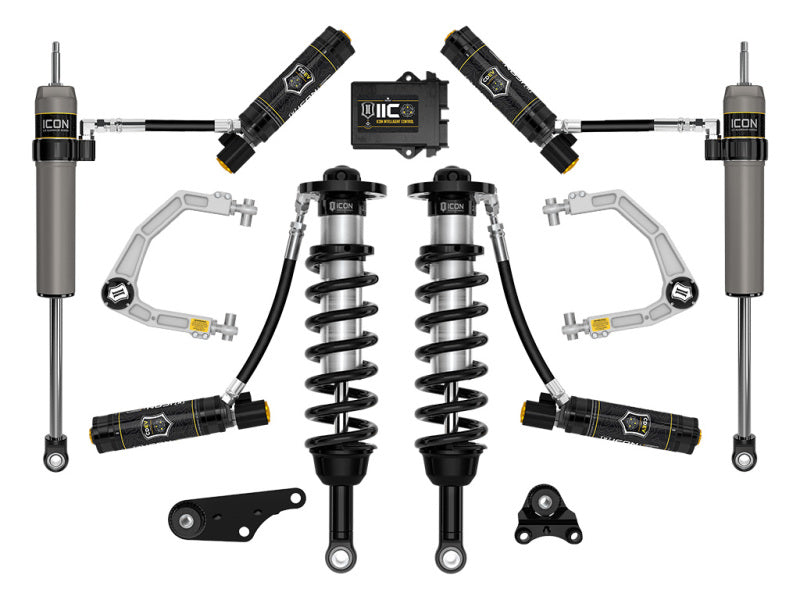

ICON K53296 Stage 6 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Lift

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Upgrade the off-road capability and driving control of your 2024-2025 Toyota Tacoma with the ICON K53296 Stage 6 Suspension System. Designed for serious on- and off-road performance, this system increases wheel travel, improves damping control, and delivers a balanced ride with superior vehicle feel. The height-adjustable front coilovers provide 1.25 to 3 inches of lift over stock, supporting larger and more aggressive wheel and tire combinations while maintaining a properly tuned suspension setup.
The system features ICON 2.5 Series front coilover shocks with vehicle-specific tuning, remote reservoirs, CDEV technology, and ICON-engineered coil springs. Remote reservoirs increase oil volume and cooling capacity to help resist overheating and damping fade during demanding use. ICON Intelligent Control uses onboard sensors to monitor vehicle movement and G-forces, while the ICON Intelligent Control app allows wireless configuration of compression damping settings. Once configured, the system can make near-instantaneous adjustments through the Compression Damping Electronic Valve at each shock without requiring constant driver input.
For 4WD Tacoma models, the included front differential drop brackets improve CV joint operating angles, maximize available suspension travel, and help prevent CV bind. Polyurethane differential mounting bushings reduce differential movement under load. Billet aluminum upper control arms add strength and durability while providing on-vehicle caster and camber adjustment for improved drivability. Their patented Delta Joint Pro delivers 90 degrees of total articulation, and FK rod end bearings help minimize deflection for consistent suspension performance. The rear suspension uses 2.5 Aluminum Series remote reservoir shocks with 7/8-inch shafts for a balanced match with the front coilovers. This kit is configured for 4WD applications; on 2WD models, differential drop kit part number 55160 is not required, and the remaining components may be purchased individually for full system functionality.

Features:

• ICON Intelligent Control uses onboard sensors and user-defined settings to make near-instantaneous compression damping adjustments

• CDEV technology enables in-vehicle and active compression damping adjustment

• Height-adjustable front coilovers provide 1.25 to 3 inches of lift over stock

• 2.5 Series front coilovers include remote reservoirs for improved damping control and shock cooling

• 2.5 Aluminum Series remote reservoir rear shocks feature 7/8-inch shafts and a balanced suspension tune

• Front differential drop brackets improve CV joint operating angles and maximize wheel travel on 4WD models

• Polyurethane differential bushings help limit differential movement under load

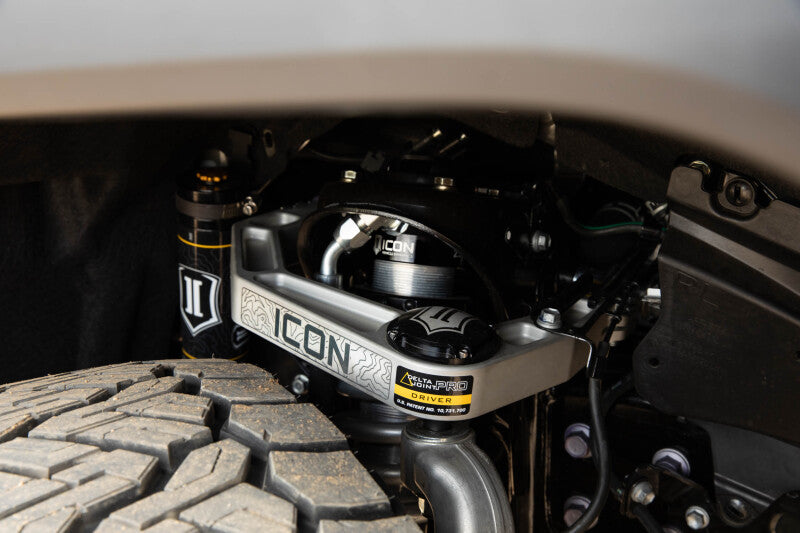

• Billet aluminum upper control arms provide strength, durability, and on-vehicle caster and camber adjustment

• Patented Delta Joint Pro offers 90 degrees of total articulation

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered coil springs improve suspension response and ride quality

• Designed for 2024-2025 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
