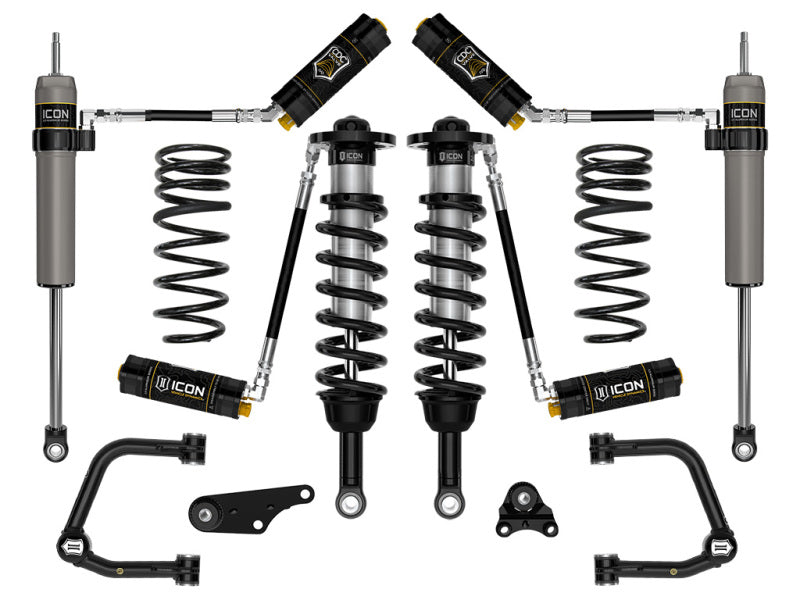

ICON K53295TS Stage 5 Suspension System for 2024-2025 Toyota Tacoma

$4,241.29

Skip to product information
1 of 5

Regular price $4,241.29
Sale price $4,241.29 Regular price $4,241.29
Shipping calculated at checkout.
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered front and rear coil springs

The ICON K53295TS Stage 5 suspension system is engineered for 2024-2025 Toyota Tacoma models and is designed to deliver greater wheel travel, improved damping, and confident vehicle control on and off the road. This complete system combines height-adjustable 2.5 Series front coilovers with CDC Valves, remote reservoirs, ICON-engineered coil springs, tubular upper control arms, rear remote reservoir shocks, and triple-rate rear coil springs. The result is a balanced suspension setup with improved ride quality and performance over stock.
The front coilovers provide 1.25 to 3 inches of front lift adjustment over stock, allowing fitment of larger, more aggressive wheel and tire combinations. Remote reservoirs increase shock oil capacity and cooling surface area to help resist overheating and cavitation during demanding use. ICON CDC Valves provide 10 externally adjustable compression damping settings, allowing the suspension feel to be tuned from softer to firmer. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod-end bearings, and 6061 aircraft-grade aluminum CNC-machined components support long-term durability.
Included tubular upper control arms feature ICON’s patented Delta Joint Pro with 90 degrees of total articulation, providing added strength, alignment correction, and improved drivability. The triple-rate rear coil springs provide approximately 0.5 inch of rear lift while maintaining a controlled, comfortable ride. On 4WD models, the front differential drop brackets improve the operating angle of the CV joints, maximize available suspension travel, and help prevent CV bind. Polyurethane differential mounting bushings also help limit differential movement under load. This system is configured for 4WD applications; on 2WD models, differential drop kit part number 55160 is not required. Fits 2024-2025 Toyota Tacoma models.

Features:

  • 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling
  • ICON CDC Valves provide 10 settings of externally adjustable compression damping
  • Height-adjustable front coilovers provide 1.25 to 3 inches of lift over stock
  • 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts
  • Tubular upper control arms add strength, durability, and alignment correction
  • Patented Delta Joint Pro provides 90 degrees of total articulation
  • Triple-rate rear coil springs provide approximately 0.5 inch of rear lift
  • Front differential drop brackets improve CV operating angles on 4WD models
  • Polyurethane differential bushings help limit differential movement under load
  • Corrosion-resistant CAD-plated shock bodies support long-term durability
  • FK rod-end bearings provide extended service life and minimal deflection
  • 6061 aircraft-grade aluminum CNC-machined components deliver strength and precision
  • ICON-engineered front and rear coil springs improve vehicle control and ride quality
  • Increased wheel travel and improved ride quality compared with the factory suspension

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
