ICON K53295S Stage 5 Suspension System for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

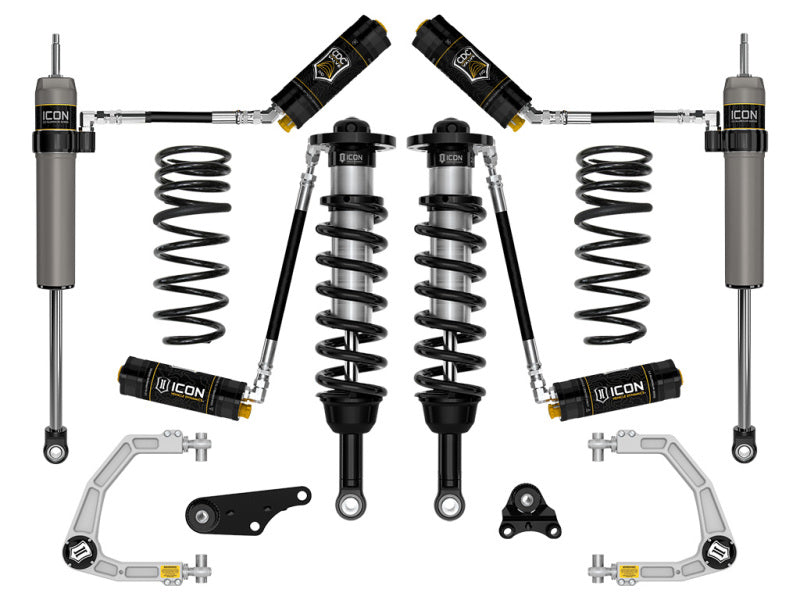

The ICON K53295S Stage 5 Suspension System is engineered for 2024-2025 Toyota Tacoma models and serious on- and off-road driving. Designed to increase wheel travel and damping capability, this system improves vehicle control, ride quality, and suspension performance over stock. It includes ICON 2.5 Series front coilovers with CDC Valve-equipped remote reservoirs, ICON-engineered coil springs, and 2.5 Aluminum Series rear remote reservoir shocks with 7/8-inch shafts for a balanced suspension tune.
The externally adjustable ICON CDC Valves provide 10 compression damping settings, allowing drivers to adjust the suspension from softer to firmer performance characteristics. Remote reservoirs increase shock oil capacity and cooling surface area to help resist overheating, cavitation, and damping fade during demanding use. Adjustable front coilovers provide 1.25 to 3 inches of front lift height over stock, while triple-rate rear coil springs provide approximately 0.5 inch of rear lift and improved ride quality. Corrosion-resistant CAD-plated shock bodies and 6061 aircraft-grade aluminum components support long-term durability.

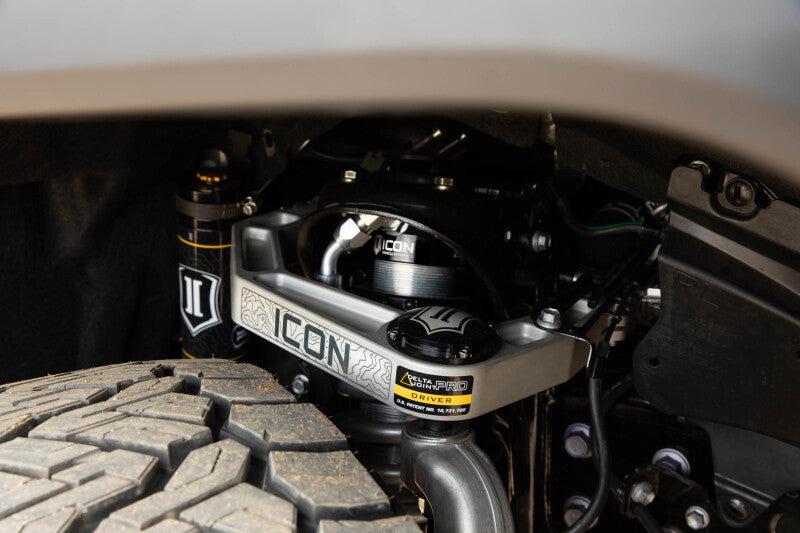

Billet aluminum upper control arms add strength, durability, and on-vehicle caster and camber adjustment for improved drivability. Each UCA uses ICON's patented Delta Joint Pro, providing 90 degrees of total articulation, along with FK rod end bearings designed for extended service life and minimal deflection. The included front differential drop brackets improve the operating angle of 4WD CV joints, help prevent CV bind, and maximize available front suspension travel. Polyurethane differential mounting bushings help limit differential movement under load. This system is configured for 4WD models; when installed on a 2WD Tacoma, front differential drop kit part number 55160 is not required.

Features:

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling

• Adjustable front coilovers provide 1.25 to 3 inches of front lift height over stock

• ICON CDC Valves provide 10 settings of externally adjustable compression damping

• 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts and a balanced tune

• Triple-rate rear coil springs provide approximately 0.5 inch of rear lift

• Billet aluminum upper control arms provide strength, durability, and on-vehicle caster and camber adjustment

• Patented Delta Joint Pro provides 90 degrees of total articulation

• Front differential drop brackets improve 4WD CV operating angles and help prevent CV bind

• Polyurethane differential mounting bushings help reduce differential movement under load

• Corrosion-resistant CAD-plated shock bodies support long-term durability

• FK rod end bearings provide extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components enhance strength and precision

• ICON-engineered front and rear coil springs improve suspension performance and ride quality

• Fits 2024-2025 Toyota Tacoma models

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
