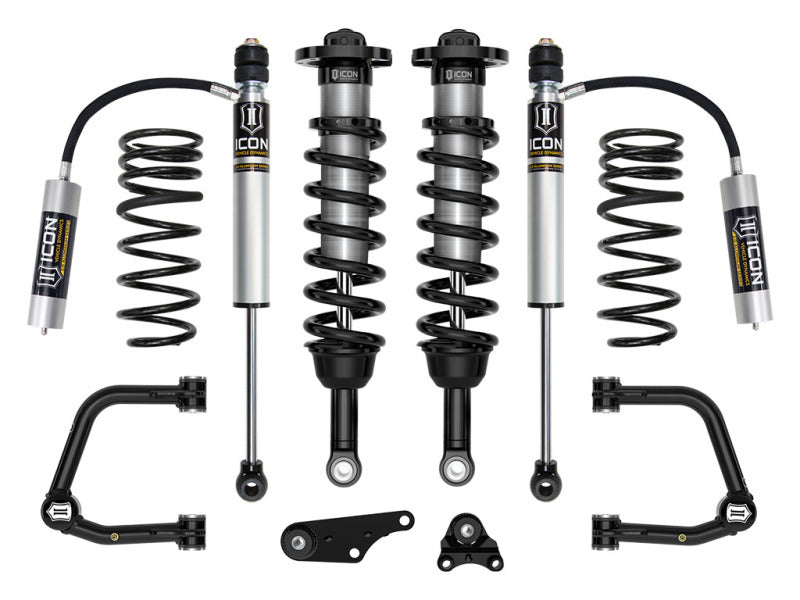

ICON K53293TS Stage 3 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 Inch Front Lift

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

The ICON K53293TS Stage 3 suspension system is engineered for the 2024-2025 Toyota Tacoma to improve suspension geometry, wheel travel, damping control, and overall ride quality on and off the road. Designed for serious drivers, this system combines tubular upper control arms, adjustable coilovers, triple-rate rear coil springs, and vehicle-specific shocks to provide balanced handling, increased clearance, and dependable performance in demanding terrain. The kit is configured for 4WD Toyota Tacoma models and includes components that work together as a complete suspension upgrade.
The tubular upper control arms feature the patented ICON Delta Joint PRO, which provides 90 degrees of total articulation and is serviceable and rebuildable for long-term use. The Delta Joint PRO helps eliminate binding through the suspension’s bump and droop travel, while the corrected geometry and added caster support improved drivability. FK rod end bearings reduce deflection and are designed for extended longevity. Adjustable front coilovers provide 1.25-3 inches of front lift over stock, while corrosion-resistant CAD-plated shock bodies and 7/8-inch shafts deliver durable performance. ICON-engineered front and rear coil springs and CNC-machined 6061 aircraft-grade aluminum components complete the system.
The triple-rate rear coil springs provide a softer droop rate, a comfortable ride rate, and a firmer overload rate for improved bottoming resistance and off-road control while adding 0.5 inch of rear lift. ICON 2.0 Aluminum Series remote reservoir rear shocks improve cooling capacity and use vehicle-specific valving to balance front-to-rear performance. The included front differential drop helps optimize CV joint operating angles and maximize available wheel travel on 4WD models. For 2WD Tacoma applications, differential drop kit part number 55160 is not required, and the remaining suspension components may be purchased individually for full system functionality. Professional installation and alignment are recommended after installation.

Features:

• Front differential drop improves CV joint operating angles and maximizes available wheel travel on 4WD models

• Patented ICON Delta Joint PRO upper control arm design provides 90 degrees of total articulation

• Triple-rate rear coil springs improve ride quality, off-road performance, and bottoming resistance while providing 0.5 inch of rear lift

• Tubular upper control arms add strength, durability, and alignment correction

• Vehicle-specific front and rear shock valving improves damping control and ride balance

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and minimal deflection

• ICON 2.0 Aluminum Series remote reservoir rear shocks feature 5/8-inch shafts and improved cooling

• Adjustable coilovers provide 1.25-3 inches of front lift over stock

• Increased wheel travel and improved ride quality compared with the original suspension

• 6061 aircraft-grade aluminum CNC-machined components

• ICON-engineered front and rear coil springs

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
