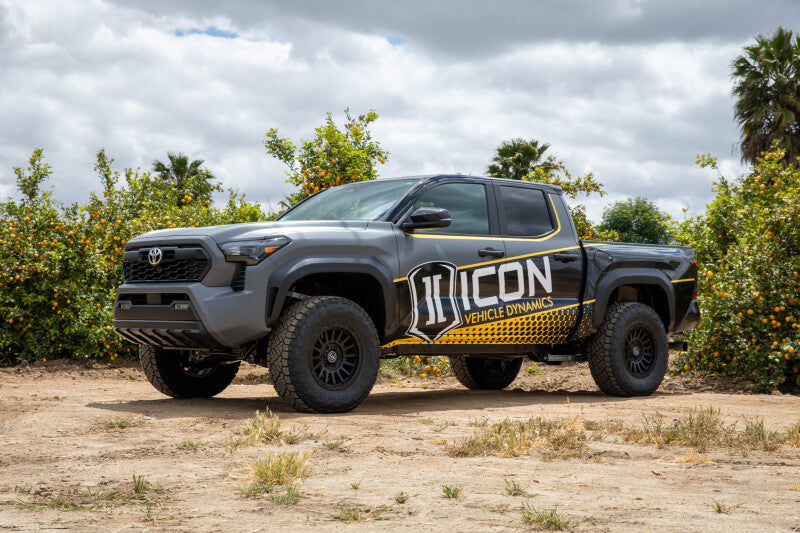

ICON K53293S Stage 3 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3 in. Front Lift

$3,416.75

Skip to product information
1 of 5

Regular price $3,416.75
Sale price $3,416.75 Regular price $3,416.75
Shipping calculated at checkout.
Low stock
The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Increased wheel travel and improved ride quality over stock
  • 6061 aircraft grade aluminum CNC machined components
  • ICON engineered front and rear coil springs

The ICON Vehicle Dynamics K53293S Stage 3 suspension system is engineered for 2024-2025 Toyota Tacoma models and delivers improved control, wheel travel, ride quality, and off-road capability. Designed for 4WD applications, this system combines billet aluminum upper control arms, adjustable coilovers, triple-rate rear coil springs, and vehicle-specific shocks for a balanced suspension setup on the street and in demanding terrain. ICON components are engineered for drivers seeking enhanced performance without sacrificing everyday drivability.
The billet aluminum upper control arms correct front suspension geometry while providing on-vehicle caster and camber adjustment for improved alignment and handling. Each control arm uses the patented ICON Delta Joint PRO, which offers 90 degrees of total articulation and is serviceable and rebuildable. This design helps maintain smooth suspension movement through full bump and droop travel while reducing binding. FK rod end bearings provide extended service life and minimal deflection, while CNC-machined 6061 aircraft-grade aluminum components deliver strength and durability.
Adjustable ICON coilovers provide 1.25-3 inches of front lift over stock and use corrosion-resistant CAD-plated bodies with 7/8-inch shafts. The rear triple-rate coil springs add approximately 0.5 inch of rear lift and combine softer droop and ride rates with a firmer overload rate for improved comfort, traction, and bottoming resistance. ICON 2.0 Aluminum Series remote reservoir rear shocks use 5/8-inch shafts, increased cooling capacity, and vehicle-specific valving to provide consistent damping from the front of the truck to the rear. A front differential drop is included for improved CV joint operating angles on 4WD models. For 2WD installation, the differential drop is not required and the remaining components can be used for full system functionality.

Features:

  • Application: Fits 2024-2025 Toyota Tacoma models; configured for 4WD applications
  • Front Lift: Adjustable coilovers provide 1.25-3 inches of lift over stock
  • Upper Control Arms: Billet aluminum construction improves strength, durability, caster adjustment, camber adjustment, and suspension clearance
  • Delta Joint PRO: Patented serviceable and rebuildable joint provides 90 degrees of total articulation
  • Rear Springs: Triple-rate coil springs improve ride quality, traction, bottoming resistance, and add approximately 0.5 inch of rear lift
  • Shock Valving: Vehicle-specific front and rear tuning improves damping, control, and ride balance
  • Front Shocks: Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts
  • Rear Shocks: ICON 2.0 Aluminum Series remote reservoir shocks with 5/8-inch shafts
  • Differential Drop: Included for improved maximum CV joint operating angles on 4WD models
  • Bearings: FK rod end bearings provide extended longevity and minimal deflection
  • Construction: CNC-machined 6061 aircraft-grade aluminum components
  • Performance: Increases wheel travel and improves ride quality compared with stock suspension

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
