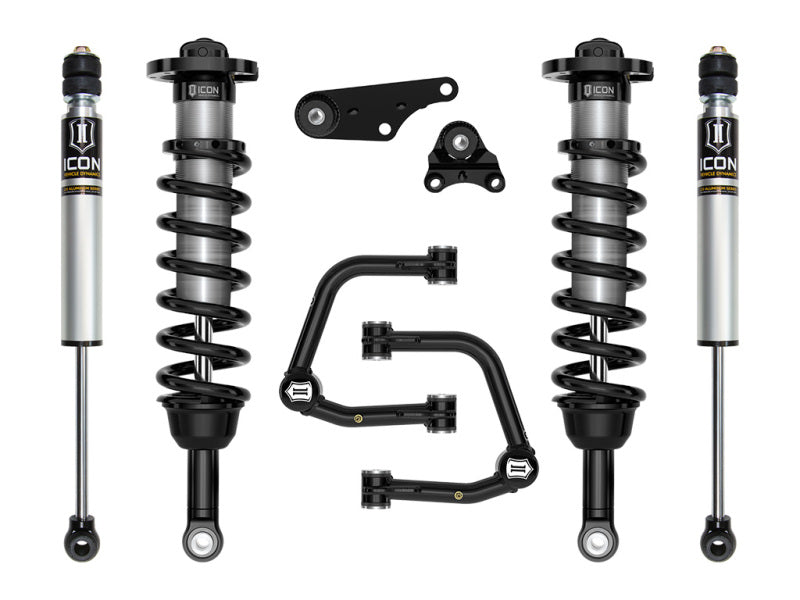

ICON K53292T Stage 2 Suspension System with Tubular Upper Control Arms for 2024-2025 Toyota Tacoma

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

The ICON Vehicle Dynamics K53292T Stage 2 suspension system is engineered for 2024-2025 Toyota Tacoma models driven on both the road and off-road. Designed to increase wheel travel, damping performance, and vehicle control, this system delivers improved ride quality and handling over stock. It includes vehicle-specific tuned 2.5 Series front coilover shocks with internal reservoirs, ICON-engineered coil springs, tubular upper control arms, front differential drop brackets, differential mounting bushings, and 2.0 Aluminum Series rear shocks with internal reservoirs. The adjustable front coilovers provide 1.25 to 3 inches of front lift over stock, supporting larger and more aggressive wheel and tire combinations.
The tubular upper control arms improve front suspension geometry, add caster for enhanced drivability, and provide increased clearance for suspension components. Each control arm uses the serviceable and rebuildable ICON Delta Joint PRO, which offers 90 degrees of total articulation to support full bump and droop travel while minimizing bind. FK rod end bearings help provide extended service life and reduced deflection, while 6061 aircraft-grade aluminum CNC-machined components add strength and durability. Corrosion-resistant CAD-plated coilover bodies and 7/8-inch shafts are designed for demanding use.
The front differential drop brackets help improve the operating angle of CV joints and maximize available suspension travel on 4WD models. Polyurethane differential mounting bushings help limit differential movement under load. Vehicle-specific valving in the front and rear shocks balances suspension performance from end to end, while the rear 2.0 Aluminum Series shocks use 5/8-inch shafts and internal reservoirs for consistent damping control. This ICON K53292T system is configured for 4WD Toyota Tacoma models. For 2WD applications, the front differential drop kit is not required, and the remaining components may be purchased individually for full system functionality.

Features:

• Vehicle-specific Stage 2 suspension system for 2024-2025 Toyota Tacoma models

• Adjustable front coilovers provide 1.25 to 3 inches of front lift over stock

• 2.5 Series front coilover shocks with internal reservoirs and 7/8-inch shafts

• 2.0 Aluminum Series rear shocks with internal reservoirs and 5/8-inch shafts

• Tubular upper control arms improve strength, clearance, alignment, and front-end geometry

• ICON Delta Joint PRO provides 90 degrees of total articulation and is serviceable and rebuildable

• Front differential drop brackets improve CV joint operating angles on 4WD models

• Polyurethane differential bushings help reduce differential movement under load

• Vehicle-specific shock valving improves damping, control, and ride quality

• FK rod end bearings help reduce deflection and extend service life

• 6061 aircraft-grade aluminum CNC-machined components provide strength and durability

• ICON-engineered coil springs improve suspension feel throughout the range of travel

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
