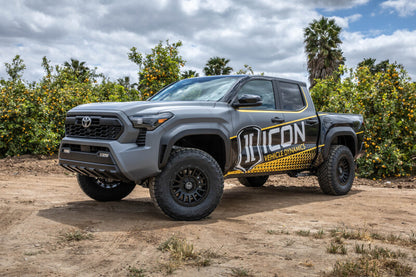

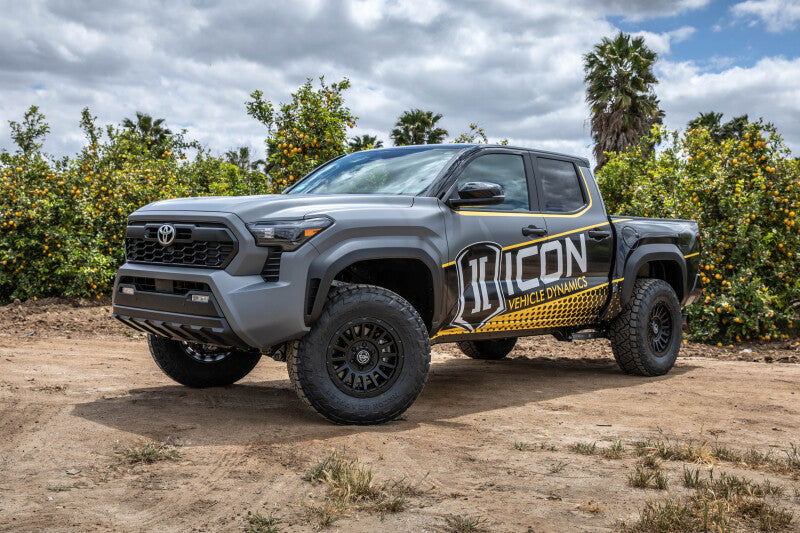

ICON K53292 Stage 2 Suspension System for 2024-2025 Toyota Tacoma, 1.25-3-Inch Lift

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Upgrade the performance and control of your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics K53292 Stage 2 Suspension System. Designed for serious on-road and off-road driving, this system increases wheel travel and improves damping ability for enhanced ride quality, handling, and vehicle control. The kit is configured for 4WD models and includes vehicle-specific components engineered to work together as a complete suspension solution.

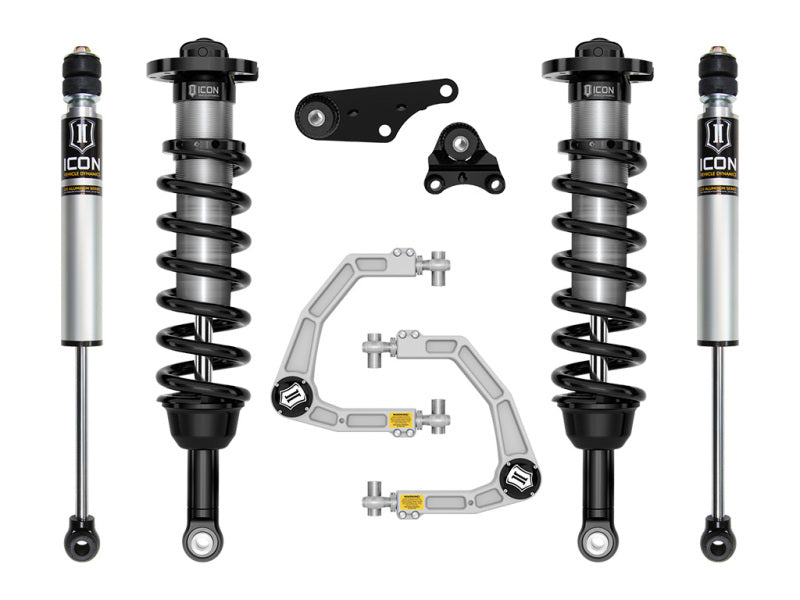

The front suspension features ICON 2.5 Series coilover shocks with internal reservoirs, corrosion-resistant CAD-plated bodies, 7/8-inch shafts, and ICON-engineered coil springs. Adjustable front lift height from 1.25 to 3 inches over stock allows fitment of larger, more aggressive wheel and tire combinations. Front differential drop brackets improve CV joint operating angles and help maximize suspension travel, while polyurethane differential mounting bushings limit differential movement under load.
Included billet aluminum upper control arms improve front-end geometry, provide on-vehicle caster and camber adjustment, and increase suspension component clearance. Each control arm uses the patented ICON Delta Joint PRO with 90 degrees of total articulation, allowing full bump and droop travel while reducing joint bind. FK rod end bearings provide extended service life and minimal deflection. At the rear, vehicle-specific ICON 2.0 Aluminum Series internal reservoir shocks provide balanced damping and improved control from front to rear.
This ICON K53292 system is built from 6061 aircraft-grade aluminum CNC-machined components and is engineered specifically for the 2024-2025 Toyota Tacoma. The supplied front differential drop kit is required for 4WD applications. For 2WD Tacomas, ICON notes that the differential drop kit is not needed and the other system components may be purchased individually for full functionality. Professional installation and alignment are recommended after installation.

Features:

• Front differential drop brackets improve CV joint operating angles and maximize available wheel travel on 4WD models

• Billet aluminum upper control arms provide increased strength, durability, and on-vehicle caster and camber adjustment

• Patented ICON Delta Joint PRO delivers 90 degrees of total articulation for improved suspension travel

• Vehicle-specific tuned front and rear shocks provide balanced damping and enhanced control

• 2.5 Series front coilover shocks feature internal reservoirs, corrosion-resistant CAD-plated bodies, and 7/8-inch shafts

• 2.0 Aluminum Series rear shocks feature internal reservoirs and 5/8-inch shafts

• Adjustable coilovers provide 1.25 to 3 inches of front lift height over stock

• ICON-engineered coil springs improve suspension feel throughout the range of travel

• FK rod end bearings provide extended longevity and minimal deflection

• 6061 aircraft-grade aluminum CNC-machined components improve strength and durability

• Increased wheel travel and improved ride quality over stock

• Application: Fits 2024-2025 Toyota Tacoma models; configured for 4WD applications

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
