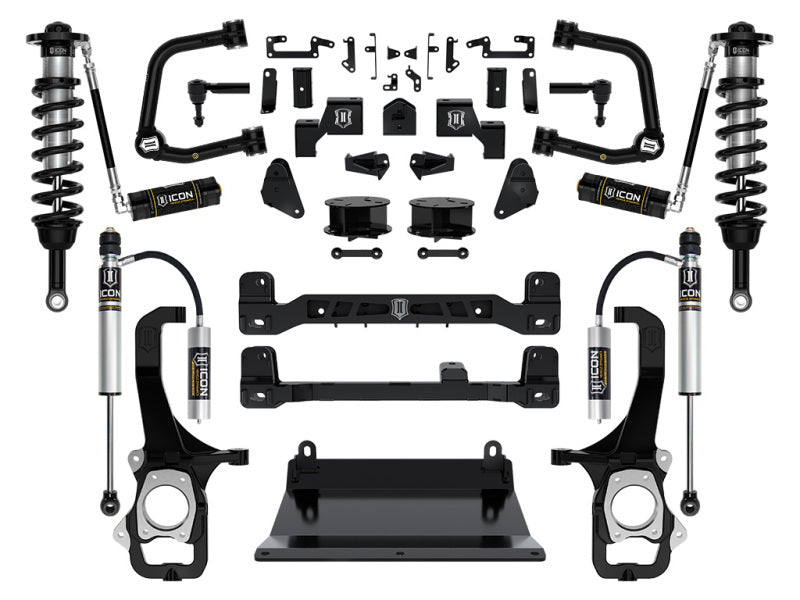

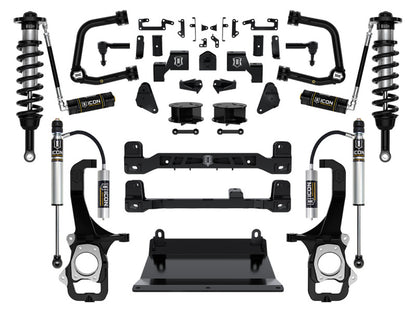

ICON K53273T Stage 3 Suspension System for 2022-2023 Toyota Tundra, 6-Inch Lift

APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• Maintains factory track width

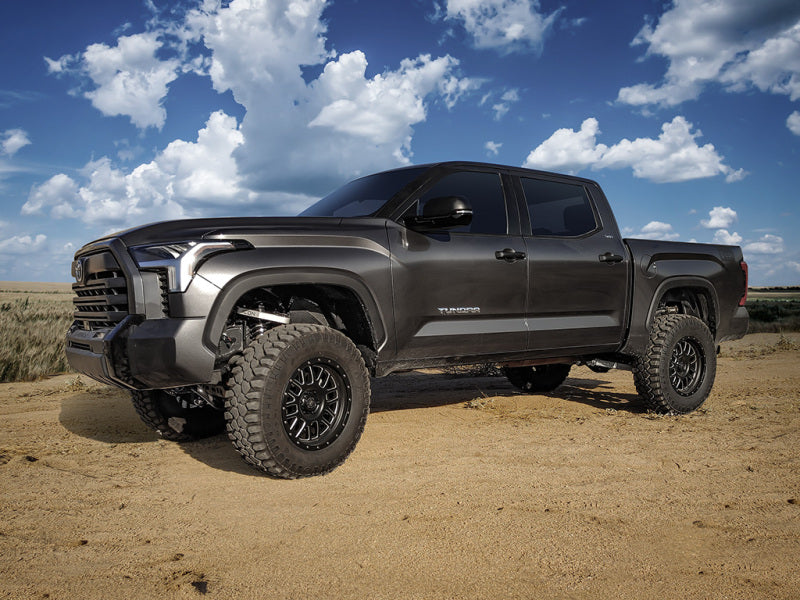

The ICON K53273T Stage 3 Suspension System is engineered for 2022-2023 Toyota Tundra models seeking increased ground clearance, improved suspension control, and enhanced off-road capability. The system combines 2.5 Series front coilovers with remote reservoirs and 2.0 Aluminum Series rear shocks with remote reservoirs to provide balanced damping, greater heat dissipation, and consistent performance during demanding driving conditions. Adjustable front ride height delivers approximately 5 to 6 inches of lift over stock, with up to 6 inches of lift using only a 4-inch crossmember drop. Advertised lift ranges apply to a stock-equipped vehicle; additional accessories and vehicle weight may affect the final lift height.
The system is optimized for 37-inch tires with full suspension articulation. Larger tires may require fender trimming or additional vehicle modifications. High-clearance front crossmembers and a front skid plate are CNC laser cut and brake formed from 1/4-inch steel plate for durable underbody protection. Tubular upper control arms with patented Delta Joint Pro technology improve strength, serviceability, and caster correction while allowing up to 90 degrees of total articulation. The patented Delta Joint Pro is protected by U.S. Patent No. 10,731,700.
ICON K53273T components are designed to improve suspension geometry and nearly eliminate the bump steer commonly found in the factory Tundra suspension. High-angle outer tie rods use durable, greaseable metal-on-metal tie rod ends, while single-piece high-strength ductile iron steering knuckles provide a built-in 4-inch drop. Rear coil spring spacers retain the factory rear coil springs, and upgraded sway bar links, mounts, drop brackets, rear track bar brackets, and heavy-duty bump stop brackets help reduce suspension bind. The system maintains factory track width and can increase front wheel travel by up to 40% without overstressing original equipment components. Professional installation and alignment are recommended.

Features:

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced damping and improved heat dissipation

• 2.5 Series front coilovers with remote reservoirs improve damping, vehicle control, and shock cooling

• Adjustable front ride height provides approximately 5 to 6 inches of lift over stock

• Optimized for 37-inch tires with full suspension articulation

• Patented Delta Joint Pro provides improved durability, serviceability, and 90 degrees of total articulation

• Tubular upper control arms improve strength, durability, caster correction, and drivability

• High-clearance front crossmembers and front skid plate are formed from 1/4-inch steel plate

• System increases front wheel travel by up to 40% without overstressing factory components

• Rear coil spring spacer kit retains the factory rear coil springs

• Optimized suspension geometry helps reduce factory bump steer

• High-angle outer tie rods feature greaseable metal-on-metal tie rod ends

• High-strength ductile iron steering knuckles include a built-in 4-inch drop

• Improved rear sway bar links, mounts, and track bar bracket reduce suspension bind

• Included sway bar drop brackets help reduce bind in factory sway bar links

• Heavy-duty front and rear bump stop brackets included

• Maintains factory track width

• Fits 2022-2023 Toyota Tundra models

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
