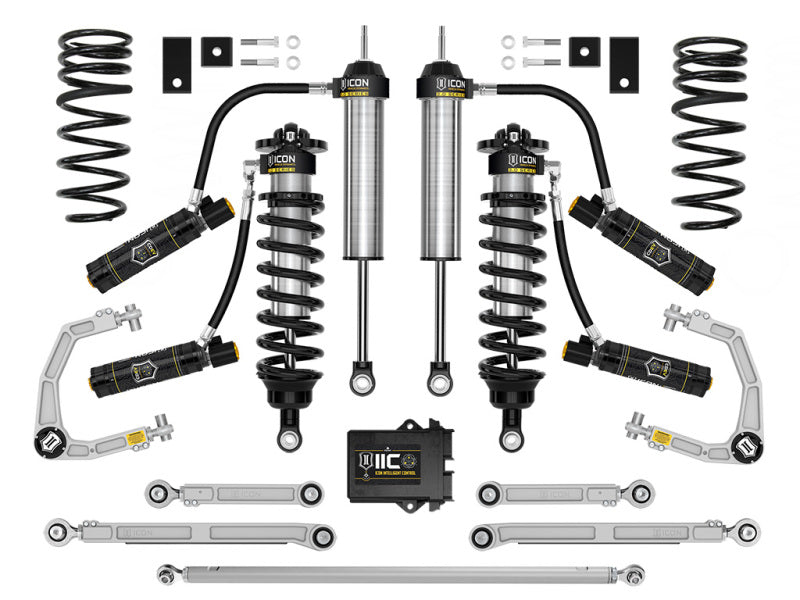

ICON K53216S Stage 6 3.0 Suspension System for 2022-2025 Toyota Tundra, 1.25-3.25-Inch Lift

This Stage 6 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Stage 6 includes 3.0 remote res coilovers for 1.25-3.25” of lift, max performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar and 3.0 Series remote res shocks for balanced tuning. CDEV for active damping adjustment. TECH NOTE: Included rear springs net .75" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages and TRD Pro. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 1.25" of rear lift. If lower rear ride heights are desired, consider ICON part # K53216.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

Upgrade your 2022-2025 Toyota Tundra with the ICON K53216S Stage 6 3.0 Suspension System, engineered for maximum off-road performance, improved stability, and fitment for up to 35-inch tires. This vehicle-specific system combines 3.0 Series remote reservoir front coilovers, rear remote reservoir shocks, billet aluminum upper control arms, rear coil springs, suspension links, and an adjustable rear track bar for balanced handling and suspension tuning. The front coilovers provide adjustable lift from 1.25 to 3.25 inches over stock when used with the included ICON billet upper control arms, while the rear springs provide approximately 0.75 inch of lift on Tundra models equipped with TRD Off-Road, TRD Sport, or TRD Pro suspension packages.
The ICON Intelligent Control (IIC) system uses onboard sensors to monitor chassis movement and G-forces, automatically adjusting compression damping through the CDE Valves for near-instant terrain response. Wireless control through the ICON Intelligent Control app allows drivers to configure system settings, after which the suspension operates automatically without additional driver input. The 3.0 Series shocks provide increased piston surface area compared with 2.5 Series shocks, while the multi-stage hydraulic Bump Zone increases bottom-out resistance during the final portion of shock travel for improved control over hard impacts and unexpected obstacles.
The included billet aluminum upper control arms improve strength, durability, and alignment adjustment while incorporating ICON’s patented Delta Joint Pro with 90 degrees of total articulation. Vehicle-specific shock lengths allow up to a 40 percent increase in front wheel travel without overstressing original equipment components. Billet rear upper and lower links improve articulation and permit on-vehicle pinion angle adjustment, while the adjustable rear track bar helps center the axle and improve suspension performance. Sway bar drop brackets reduce bind in the factory links, and all ICON shock absorbers are fully rebuildable and re-tunable. This ICON K53216S system is designed specifically for the 2022-2025 Toyota Tundra and is intended for drivers seeking comprehensive suspension performance for demanding off-road use with refined on-road drivability.

Features:

• ICON Intelligent Control uses onboard sensors and user-defined settings to make near-instant compression damping adjustments

• CDE Valve technology provides in-vehicle and active compression damping adjustment

• 3.0 Series remote reservoir front coilovers with adjustable 1.25-3.25-inch lift height

• 3.0 Series rear remote reservoir shocks provide increased wheel travel and balanced tuning

• Billet aluminum upper control arms improve strength, durability, caster, and camber adjustment

• Triple-rate rear coil springs provide approximately 0.75 inch of rear lift on TRD suspension models

• Billet rear upper and lower links improve articulation and allow pinion angle adjustment

• Adjustable rear track bar helps center the rear axle and improve suspension performance

• Patented Delta Joint Pro provides 90 degrees of total articulation

• Allows up to a 40 percent increase in front wheel travel over stock

• Multi-stage tunable hydraulic Bump Zone improves bottom-out resistance

• Sway bar drop brackets help reduce bind in the original equipment sway bar links

• Fully rebuildable and re-tunable ICON shock absorbers

• Vehicle-specific design for 2022-2025 Toyota Tundra

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
