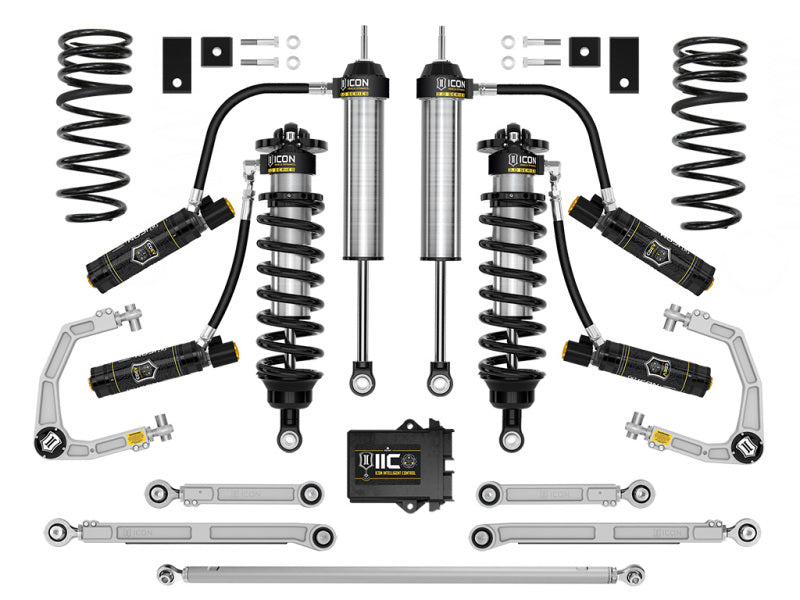

ICON K53216 Stage 6 3.0 Suspension System with Billet Components for 2022-2025 Toyota Tundra

This Stage 6 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Stage 6 includes 3.0 remote res coilovers for 1.25-3.25” of lift, max performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar and 3.0 Series remote res shocks for balanced tuning. CDEV for active damping adjustment. TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53216S.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

The ICON K53216 Stage 6 suspension system is engineered for the 2022-2025 Toyota Tundra and delivers increased suspension travel, adjustable ride height, and advanced damping control for demanding off-road use. The system includes 3.0 Series front coilovers with remote reservoirs and CDE Valves, allowing 1.25-3.25 inches of front lift over stock when installed with the included billet aluminum upper control arms. This configuration supports larger wheel and tire combinations, including up to 35-inch tires, while maintaining improved vehicle stability and control.
ICON Intelligent Control (IIC) uses onboard sensors to monitor chassis movement and g-forces, then makes near-instant compression damping adjustments through the Compression Damping Electronic Valve at each shock. Drivers can configure and control the system wirelessly through the ICON Intelligent Control app, while the system continues adjusting damping automatically once configured. The 3.0 Series shocks provide 50% more piston surface area in the ride zone and 100% more in the bump zone compared with 2.5 Series shocks. Their multi-stage hydraulic Bump Zone increases bottom-out resistance during the final portion of shock travel, helping manage hard impacts and unexpected obstacles.
Stage 6 components are selected for balanced front and rear performance. Included 3.0 Series rear remote reservoir shocks provide increased wheel travel and a matched suspension tune, while triple-rate rear coil springs improve ride quality and provide approximately 0.5 inches of rear lift on Tundra models without TRD Off-Road or TRD Sport suspension packages. Models equipped with TRD Off-Road, TRD Sport, or TRD Pro suspension remain at stock rear height. Billet rear upper and lower links allow pinion angle adjustment, and the adjustable rear track bar helps center the rear axle. Billet upper control arms include the patented Delta Joint Pro with 90 degrees of total articulation, along with on-vehicle caster and camber adjustment.
Vehicle-specific shock lengths allow up to 40% more front wheel travel than stock without overstressing original equipment components. Sway bar drop brackets help reduce bind in the factory sway bar links, and all ICON shock absorbers are fully rebuildable and re-tunable. This ICON K53216 system is designed for drivers seeking enhanced off-road capability with controlled on-road manners for their 2022-2025 Toyota Tundra.

Features:

• ICON Intelligent Control monitors vehicle movement and actively adjusts compression damping.

• CDE Valve technology enables in-vehicle and automatic compression damping adjustment.

• 3.0 Series front coilovers provide adjustable 1.25-3.25-inch front lift with included billet upper control arms.

• 3.0 Series rear remote reservoir shocks provide increased wheel travel and balanced suspension tuning.

• Triple-rate rear coil springs improve performance and ride quality while providing approximately 0.5 inches of rear lift on non-TRD models.

• Billet aluminum upper control arms improve strength, durability, caster adjustment, and camber adjustment.

• Delta Joint Pro upper control arm joints provide 90 degrees of total articulation.

• Billet rear upper and lower links improve articulation and provide pinion angle adjustment.

• Adjustable rear track bar helps center the rear axle and improve suspension performance.

• Vehicle-specific design allows up to 40% more front wheel travel than stock.

• 3.0 Series front coilovers feature a multi-stage, tunable hydraulic Bump Zone.

• Included sway bar drop brackets help reduce bind in factory sway bar links.

• ICON shock absorbers are fully rebuildable and re-tunable.

• Designed for 2022-2025 Toyota Tundra models.

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
