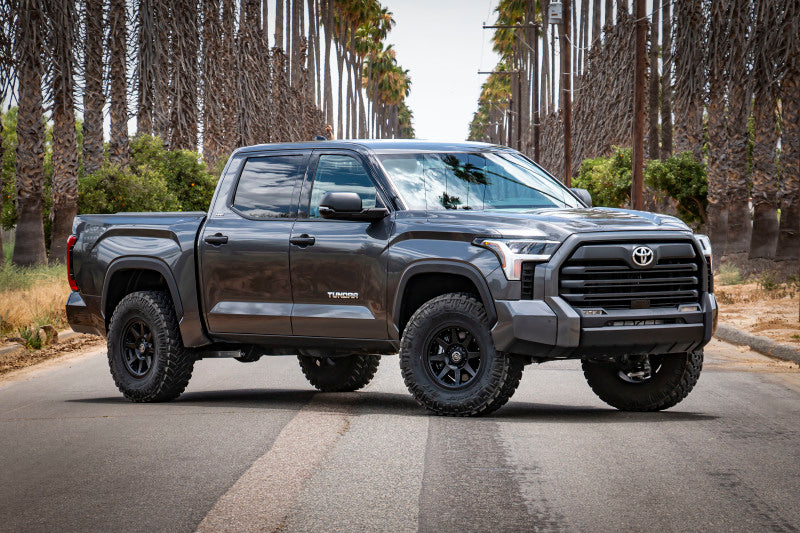

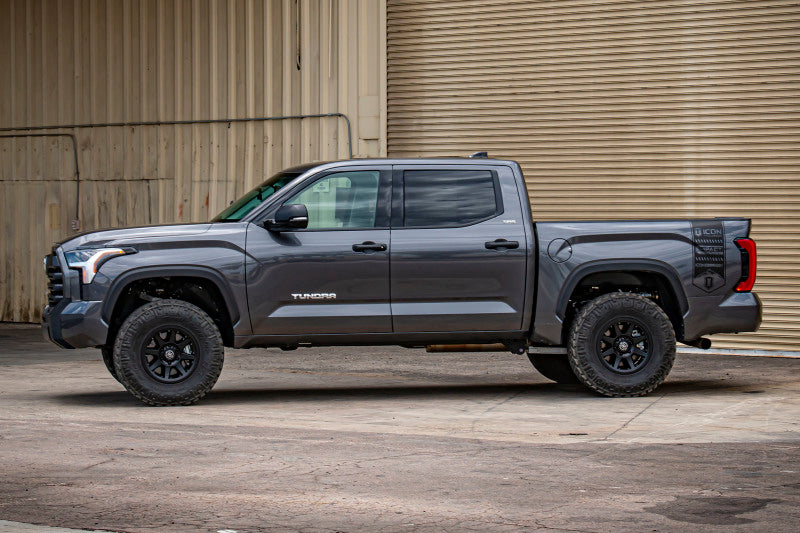

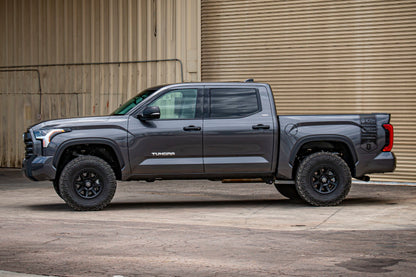

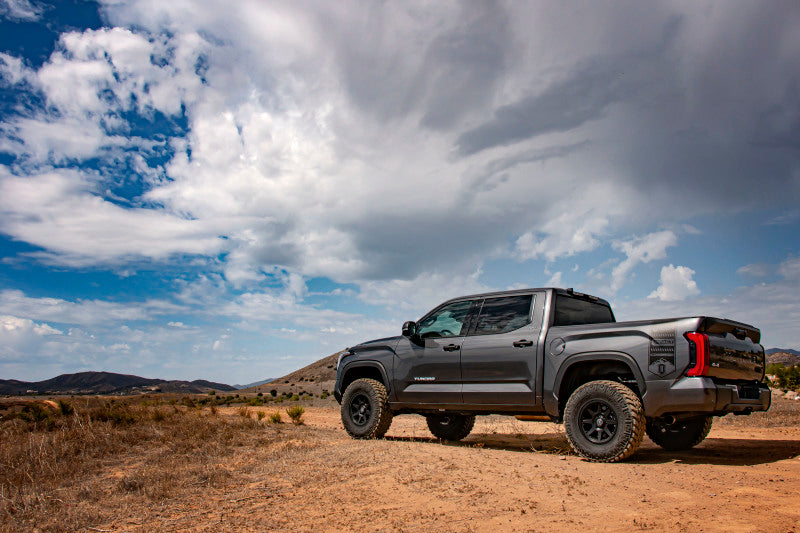

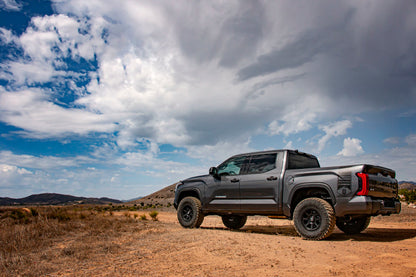

ICON K53213 Stage 3 Suspension System with CDC Valves for 2022-2025 Toyota Tundra

This Stage 3 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Stage 3 includes 3.0 remote res coilovers for 1.25-3.25” of lift, max performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar and 3.0 Series remote res shocks balance shock damping. CDCV for damping adjustment. TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53213S.

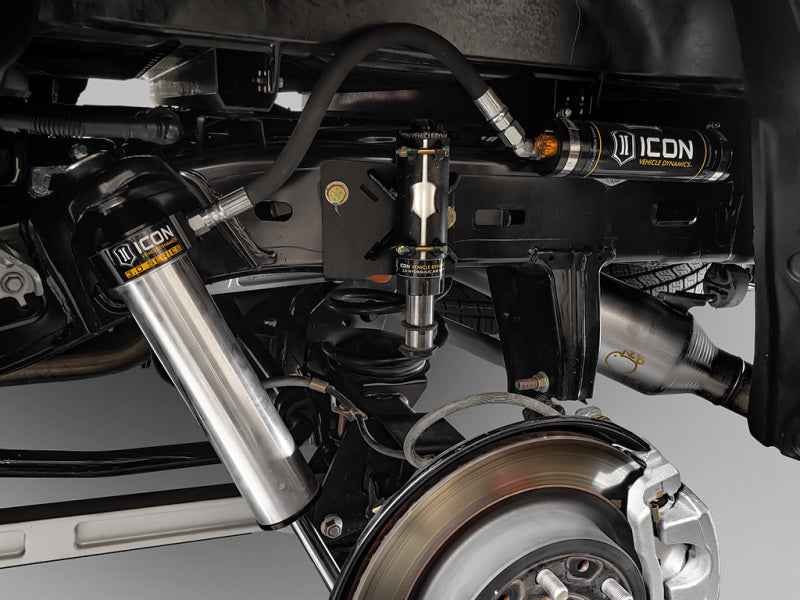

• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

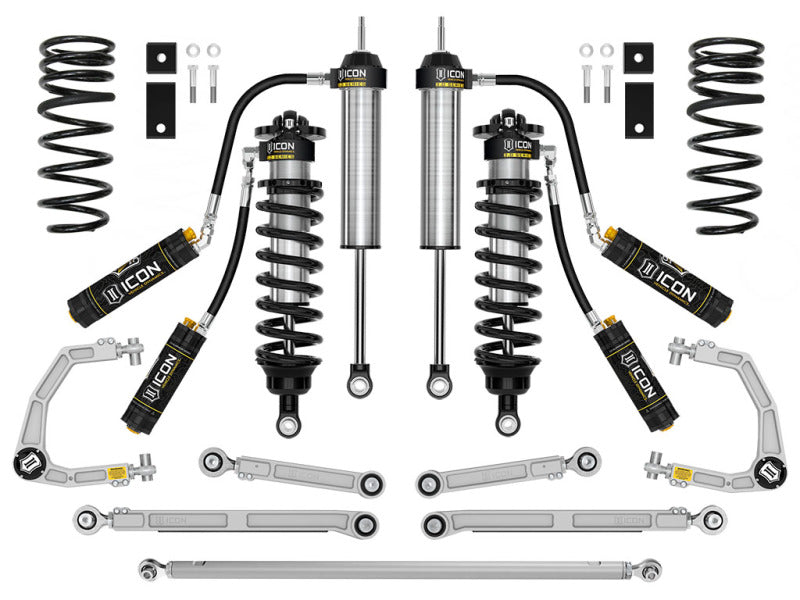

Upgrade your 2022-2025 Toyota Tundra with the ICON K53213 Stage 3 suspension system, engineered for increased off-road capability, improved vehicle control, and enhanced on-road ride quality. This complete system includes 3.0 Series remote reservoir front coilovers with CDC Valves, rear remote reservoir shocks, triple-rate rear coil springs, billet aluminum upper control arms, adjustable suspension links, and an adjustable rear track bar. The front coilovers provide 1.25-3.25 inches of lift adjustment over stock when installed with the included ICON billet upper control arms, supporting larger and more aggressive wheel and tire combinations up to 35 inches.

ICON 3.0 Series shocks provide increased piston surface area compared with 2.5 Series shocks, along with a multi-stage hydraulic Bump Zone that increases bottom-out resistance during the final portion of shock travel. Vehicle-specific shock lengths allow up to a 40% increase in front wheel travel over stock without overstressing original equipment components. Externally adjustable CDC Valves provide 10 compression damping settings, allowing the suspension to be tuned from softer comfort-oriented performance to firmer control for demanding terrain.

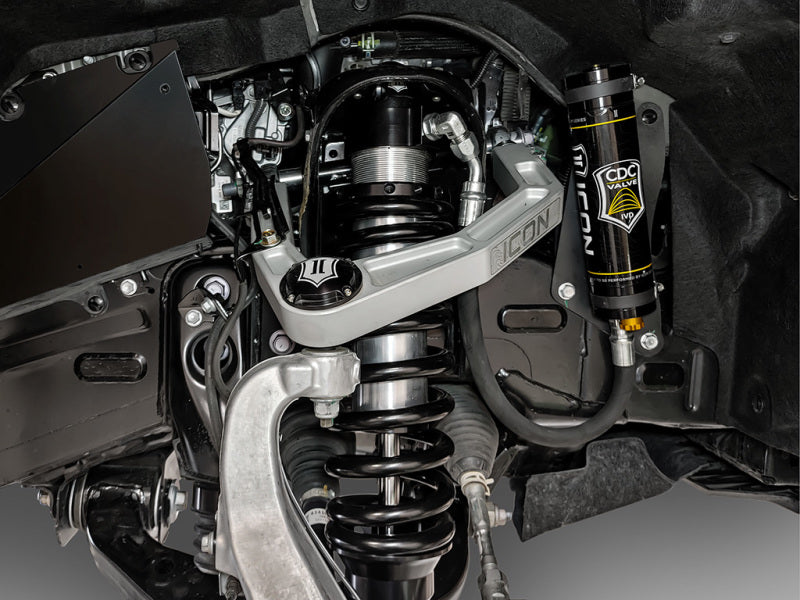

The included billet aluminum upper control arms improve strength and durability while providing on-vehicle caster and camber adjustment. Their patented Delta Joint Pro offers 90 degrees of total articulation for improved suspension movement. Billet rear upper and lower links improve articulation and enable pinion angle adjustment, while the adjustable rear track bar helps center the rear axle and optimize suspension performance. Sway bar drop brackets reduce binding in the original equipment sway bar links, and all ICON shock absorbers are fully rebuildable and re-tunable.

Included rear springs provide approximately 0.5 inch of rear lift on Tundra models without TRD Off-Road or TRD Sport suspension packages. Tundras equipped with TRD Off-Road, TRD Sport, or TRD Pro packages generally remain at stock rear height with these springs. For additional rear lift, ICON recommends considering part number K53213S. This vehicle-specific suspension system is designed for 2022-2025 Toyota Tundra applications.

Features:

• 3.0 Series front and rear remote reservoir shocks deliver increased performance and balanced damping.
• Front ride height adjusts from 1.25-3.25 inches of lift over stock with the included billet aluminum upper control arms.
• Multi-stage hydraulic Bump Zone improves bottom-out resistance during hard impacts.
• CDC Valves provide 10 externally adjustable compression damping settings.
• Triple-rate rear coil springs improve ride quality and provide approximately 0.5 inch of rear lift on non-TRD models.
• Billet aluminum upper control arms improve strength, durability, and on-vehicle caster and camber adjustment.
• Patented Delta Joint Pro provides 90 degrees of total articulation.
• Billet rear upper and lower links improve articulation and allow pinion angle adjustment.
• Adjustable rear track bar helps center the rear axle and improve suspension performance.
• Provides up to a 40% increase in front wheel travel over stock without overstressing original equipment components.
• Sway bar drop brackets reduce binding in the original equipment sway bar links.
• Fully rebuildable and re-tunable ICON shock absorbers.
• Vehicle-specific design for the 2022-2025 Toyota Tundra.

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
