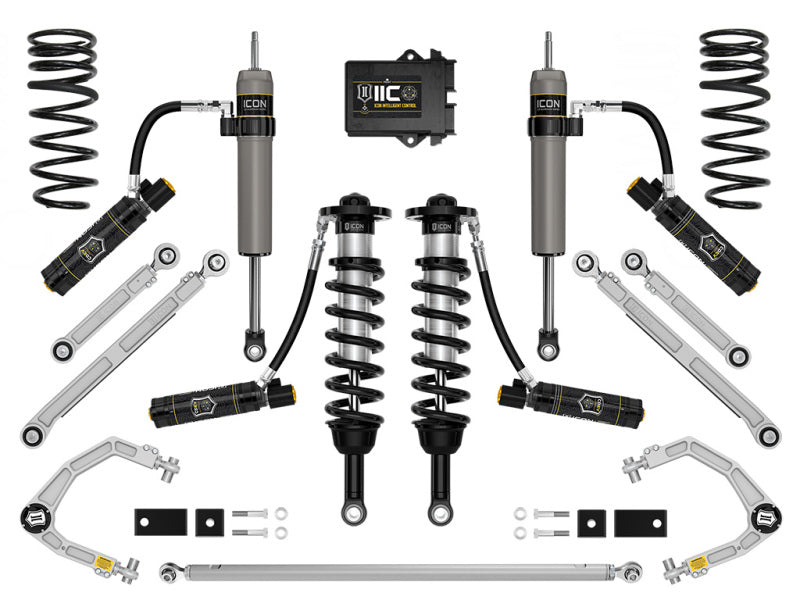

ICON K53204S Stage 14 Suspension System for 2022-2025 Toyota Tundra, 1.25-3.5-Inch Lift

This Stage 14 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Stage 14 includes remote res coilovers for 1.25-3.5” of lift, performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar, and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment. APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

Upgrade the suspension performance of your 2022-2025 Toyota Tundra with the ICON K53204S Stage 14 Suspension System. Designed for TRD models, this vehicle-specific system combines 2.5 Series remote reservoir front coilovers, rear remote reservoir shocks, billet aluminum upper control arms, rear links, rear coil springs, and an adjustable rear track bar for improved control, articulation, and ride quality on and off the road. The front coilovers provide adjustable lift from 1.25 to 3.5 inches over stock when used with the included billet upper control arms, supporting larger wheel and tire combinations, including tires up to 35 inches depending on vehicle configuration and wheel fitment.
The ICON Intelligent Control system uses onboard sensors to monitor chassis movement and G-forces while applying near-instant compression damping adjustments through the Compression Damping Electronic Valve at each shock. Drivers can configure and control the system wirelessly through the ICON Intelligent Control app, while the system continues to operate automatically once configured. Remote reservoirs increase oil capacity and cooling surface area, helping resist heat-related damping fade during demanding off-road use. Vehicle-specific shock lengths, valving, and larger piston areas provide up to a 40 percent increase in front wheel travel over stock without overstressing original equipment components.
The Stage 14 system includes triple-rate rear coil springs, billet rear upper and lower links, an on-vehicle adjustable rear track bar, sway bar drop brackets, and 2.5 Aluminum Series rear remote reservoir shocks for balanced tuning with the front coilovers. ICON upper control arms feature the patented Delta Joint Pro with 90 degrees of total articulation and on-vehicle caster and camber adjustment for improved drivability. All ICON shock absorbers are rebuildable and re-tunable for long-term serviceability. For 4WD models without the TRD Off-Road package, ICON recommends using the ICON Diff Drop, Part 55156, or Toyota TRD axles to help prevent front axle damage; this recommendation does not apply to TRD Pro models.

Features:

• ICON Intelligent Control actively adjusts compression damping using onboard chassis movement and G-force sensors

• CDE Valve technology provides in-vehicle and automatic compression damping adjustment

• 2.5 Series front coilovers with remote reservoirs improve damping control and shock cooling

• Adjustable front lift from 1.25 to 3.5 inches over stock with the included billet upper control arms

• Billet aluminum upper control arms provide strength, durability, and on-vehicle caster and camber adjustment

• Triple-rate rear coil springs provide approximately 0.75 inch of rear lift on TRD models

• Billet rear upper and lower links improve articulation and allow on-vehicle pinion angle adjustment

• 2.5 Aluminum Series rear remote reservoir shocks provide balanced performance with the front coilovers

• Adjustable rear track bar helps center the rear axle and improve suspension performance

• Delta Joint Pro upper control arm design provides 90 degrees of total articulation

• Provides up to 40 percent more front wheel travel than stock

• Included sway bar drop brackets help reduce bind in the original equipment sway bar links

• All ICON shock absorbers are fully rebuildable and re-tunable

• Vehicle-specific suspension system designed for the 2022-2025 Toyota Tundra

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
