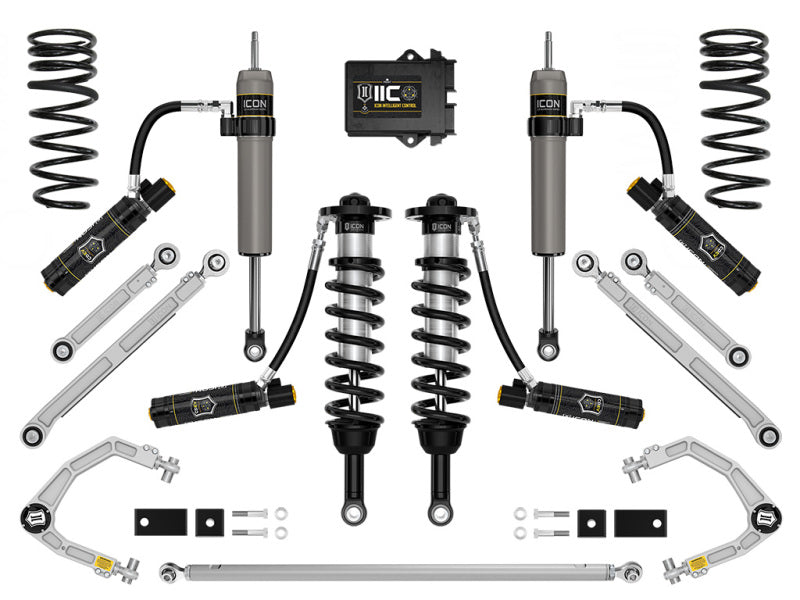

ICON K53204 Stage 14 Suspension System for 2022-2025 Toyota Tundra, 1.25-3.5-Inch Lift

This Stage 14 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. Stage 14 includes remote res coilovers for 1.25-3.5” of lift, performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar, and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment. TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without a TRD suspension package. A Tundra equipped with a TRD suspension package and TRD Pro will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part number K53204S.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

Upgrade your 2022-2025 Toyota Tundra with the ICON K53204 Stage 14 suspension system, engineered for improved control, ride quality, wheel travel, and off-road capability. The system combines 2.5 Series front coilovers with remote reservoirs, CDE Valves, billet aluminum upper control arms, triple-rate rear springs, adjustable links, an adjustable rear track bar, and 2.5 Series rear remote reservoir shocks for a balanced, vehicle-specific suspension setup.

Front ride height is adjustable from 1.25 to 3.5 inches over stock when the included ICON billet upper control arms are used, helping accommodate larger wheel and tire combinations, including tires up to 35 inches. Vehicle-specific shock lengths and valving, along with larger shock bodies and increased piston area, provide up to 40% more front wheel travel than stock without overstressing original equipment components. Remote reservoirs increase oil capacity and cooling surface area to help resist heat buildup, cavitation, and damping fade during demanding use.

ICON Intelligent Control uses onboard sensors to monitor chassis movement and G-forces, while the included Compression Damping Electronic Valves make near-instantaneous damping adjustments at each shock. The system can be configured wirelessly through the ICON Intelligent Control app and then operates automatically without continuous driver input. The billet Delta Joint Pro upper control arms provide up to 90 degrees of total articulation, while adjustable rear links, rear track bar, and sway bar drop brackets improve suspension geometry, articulation, and drivability.

The included rear springs provide approximately 0.5 inch of rear lift on Tundra models without the TRD suspension package. Tundras equipped with a TRD suspension package and TRD Pro models remain at stock rear height. All ICON shock absorbers are fully rebuildable and re-tunable. Professional installation and alignment are recommended after installation. This ICON Stage 14 system is designed specifically for 2022-2025 Toyota Tundra applications.

Features:

• ICON Intelligent Control monitors chassis movement and G-forces to provide active compression damping adjustments
• CDE Valve technology enables in-vehicle and automatic compression damping control
• 2.5 Series front coilovers with remote reservoirs improve damping, cooling, and vehicle control
• Adjustable front ride height from 1.25 to 3.5 inches over stock with the included billet upper control arms
• Supports performance-oriented wheel and tire combinations up to 35 inches
• Triple-rate rear coil springs improve ride quality and provide approximately 0.5 inch of rear lift on non-TRD models
• Billet aluminum upper control arms add strength and provide on-vehicle caster and camber adjustment
• Patented Delta Joint Pro upper control arms provide up to 90 degrees of total articulation
• Billet rear upper and lower links improve articulation and allow on-vehicle pinion angle adjustment
• 2.5 Series rear remote reservoir shocks provide balanced damping with the front coilovers
• Adjustable rear track bar helps center the rear axle and improve suspension performance
• Provides up to 40% more front wheel travel than stock without overstressing original equipment components
• Sway bar drop brackets help reduce bind in the original equipment sway bar links
• ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle-specific design for 2022-2025 Toyota Tundra

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
