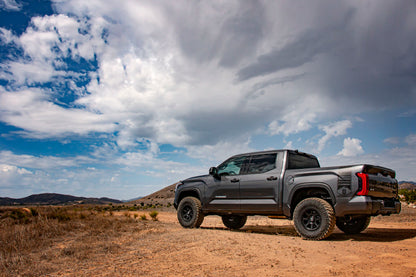

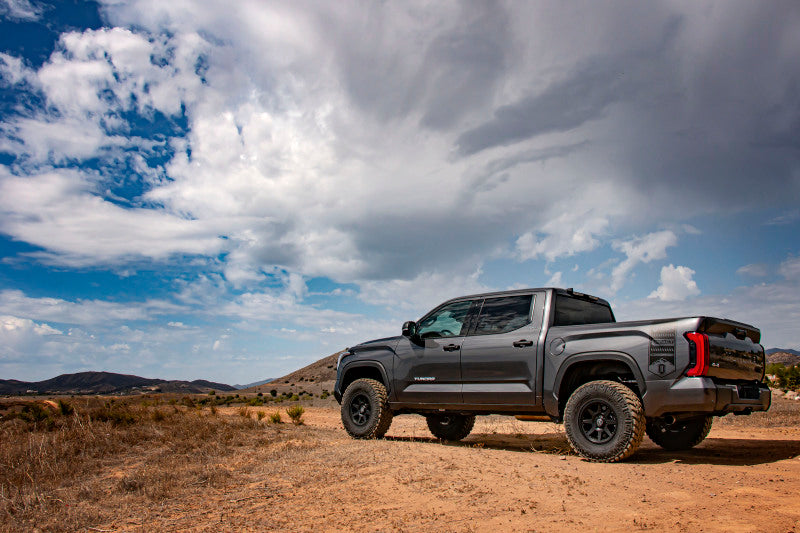

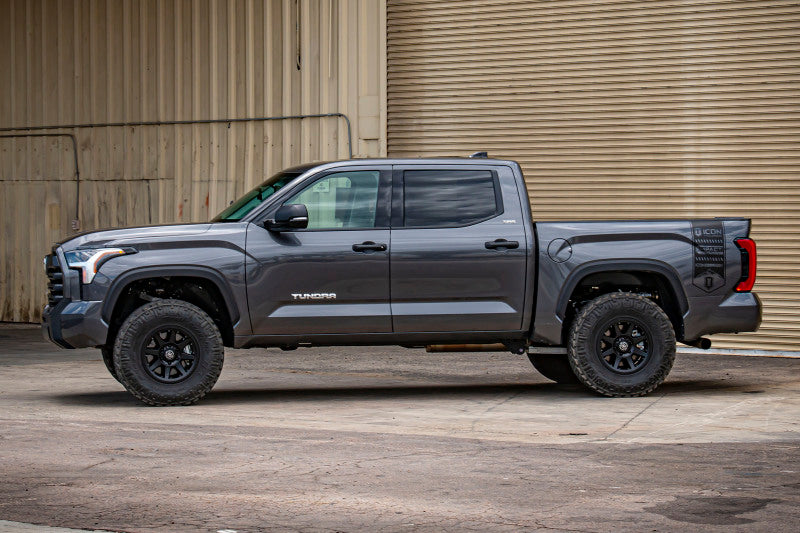

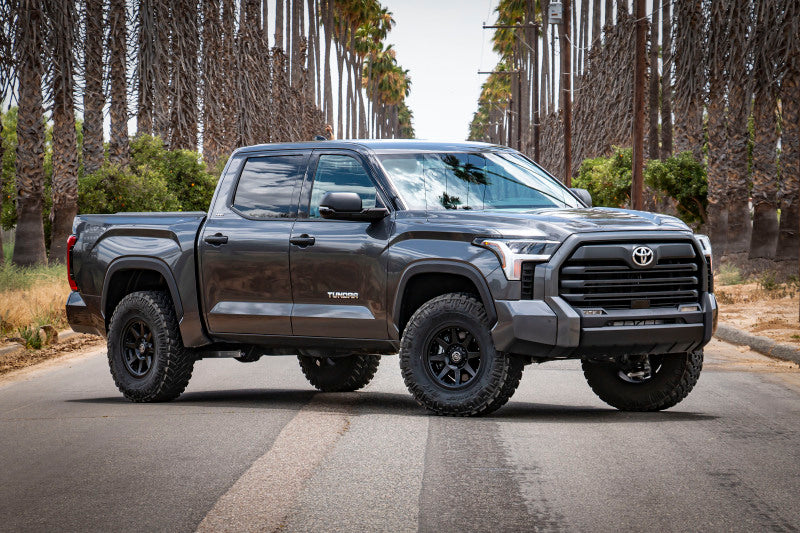

ICON K53197T Stage 7 Suspension System for 2022-2025 Toyota Tundra, 2-3.5-Inch Lift

This Stage 7 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 7 includes remote reservoir coilovers for 2-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs for alignment correction and 2.5 Series remote reservoir rear shocks for balanced shock tuning. TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

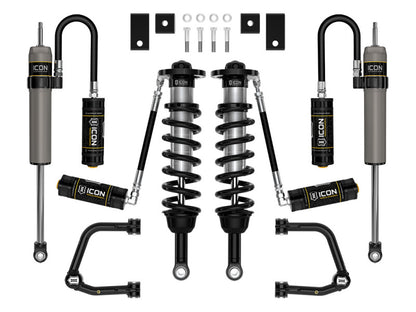

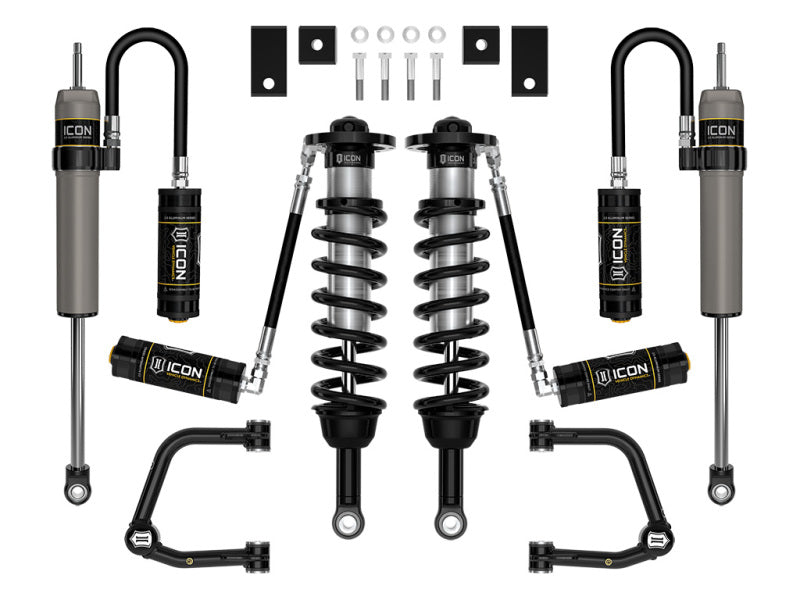

Upgrade the suspension performance of your 2022-2025 Toyota Tundra with the ICON K53197T Stage 7 Tubular Suspension System. Designed for demanding on-road and off-road use, this vehicle-specific system combines 2.5 Series remote reservoir front coilovers, tubular front upper control arms, and 2.5 Aluminum Series remote reservoir rear shocks. The front coilovers provide adjustable ride height from 2 to 3.5 inches over stock when used with the included upper control arms, helping accommodate larger wheel and tire combinations, including tires up to 35 inches in suitable applications.
ICON’s vehicle-specific shock lengths and valving are engineered to maximize suspension travel and deliver controlled, predictable performance. The larger 2.5-inch shock bodies and increased piston area improve damping capability compared with stock components, while remote reservoirs increase oil volume and cooling surface area. This helps reduce overheating, cavitation, and damper fade during extended or aggressive driving. The system can provide up to a 40 percent increase in front wheel travel over stock without overstressing original equipment components.
The included tubular upper control arms provide added strength, durability, and alignment correction after lifting the vehicle. Each control arm uses ICON’s patented Delta Joint Pro, offering 90 degrees of total articulation for improved suspension movement and off-road capability. Sway bar drop brackets help reduce binding in the original equipment sway bar links, while the rear remote reservoir shocks provide a balanced tune with the front coilovers. All ICON shock absorbers are fully rebuildable and re-tunable for long-term serviceability and performance customization.
This ICON Stage 7 system is engineered for the 2022-2025 Toyota Tundra and select 2023 Toyota Sequoia applications. The included rear shocks fit vehicles with rear coil springs and provide compatibility with up to 1.5 inches of rear lift on models without the TRD suspension package, or up to 1 inch of rear lift on models equipped with the TRD suspension package or TRD Pro configuration. Verify vehicle configuration and suspension compatibility before installation.

Features:

• 2.5 Series front coilovers with remote reservoirs provide improved damping, vehicle control, and shock cooling

• 2.5 Aluminum Series rear remote reservoir shocks deliver balanced tuning with the front coilovers

• Adjustable front ride height from 2 to 3.5 inches over stock when used with the included tubular upper control arms

• Patented ICON Delta Joint Pro provides 90 degrees of total articulation

• Allows up to a 40 percent increase in front wheel travel over stock without overstressing original equipment components

• Tubular upper control arms add strength, durability, and alignment correction for improved drivability

• Included sway bar drop brackets help reduce binding in the original equipment sway bar links

• Fully rebuildable and re-tunable ICON shock absorbers support long-term serviceability

• Vehicle-specific design for 2022-2025 Toyota Tundra and select 2023 Toyota Sequoia applications

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
