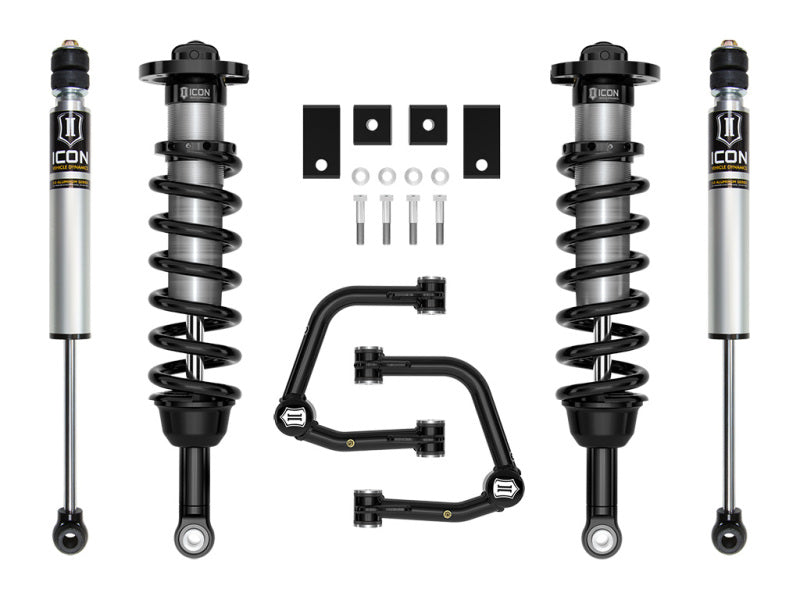

ICON K53194T Stage 4 Suspension System for 2022-2026 Toyota Tundra, 2-3.5-Inch Lift

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2022-2026 Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and a taller front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear. Stage 4 includes a pair of 2.5 Series coilovers for 1.25-3.5” of front lift, greater performance, and 35” tire fitment. Tubular UCAs provide alignment correction and 2.0 Series rear shocks balance the tuning from front to rear. APPLICATION NOTE #415: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2026 Toyota Tundra

Upgrade the handling, ride quality, and off-road capability of your 2022-2026 Toyota Tundra with the ICON K53194T Vehicle Dynamics Stage 4 complete suspension system. Designed for improved on- and off-road performance, this system combines ICON 2.5 Series front coilovers with internal reservoirs, tubular front upper control arms, a front sway bar drop kit, and 2.0 Aluminum Series rear shocks. The result is a balanced suspension setup with improved alignment, greater wheel travel, and fitment for tires up to 35 inches.
The adjustable front coilovers provide 2 to 3.5 inches of front lift when used with the included tubular upper control arms, helping achieve a properly leveled stance while preserving suspension geometry. The upper control arms feature ICON's patented Delta Joint Pro with 90 degrees of total articulation, along with alignment correction for improved drivability. The system can deliver up to 40% more front wheel travel than stock without overstressing original equipment components.
ICON 2.0 Aluminum Series rear shocks provide a complementary tune to the front coilovers and enhanced damping performance. The included sway bar drop brackets help reduce bind in the original equipment sway bar links, while fully rebuildable and re-tunable ICON shock absorbers allow future service and performance adjustments. Rear shock compatibility varies by configuration: models without the TRD suspension package support 0 to 1.5 inches of rear lift, while models with the TRD suspension package or TRD Pro support 0 to 1 inch of rear lift.
The ICON K53194T is a vehicle-specific, 100% bolt-on suspension system for the 2022-2026 Toyota Tundra. Installation requires no drilling, cutting, or welding. Professional installation is recommended, followed by a complete alignment. This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm.

Features:

• Adjustable front ride height from 2 to 3.5 inches of lift over stock when used with the included tubular upper control arms

• ICON patented Delta Joint Pro provides 90 degrees of total articulation

• Up to 40% increase in front wheel travel over stock without overstressing original equipment components

• ICON 2.0 Aluminum Series rear shocks provide balanced damping with the front coilovers

• ICON 2.5 Series front coilovers with internal reservoirs deliver improved damping and vehicle control

• Tubular front upper control arms provide added strength, durability, and alignment correction

• 100% bolt-on installation with no drilling, cutting, or welding required

• Included sway bar drop brackets help reduce bind in the original equipment sway bar links

• ICON shock absorbers are fully rebuildable and re-tunable

• Vehicle-specific suspension system for the 2022-2026 Toyota Tundra

• Designed to accommodate tires up to 35 inches

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
