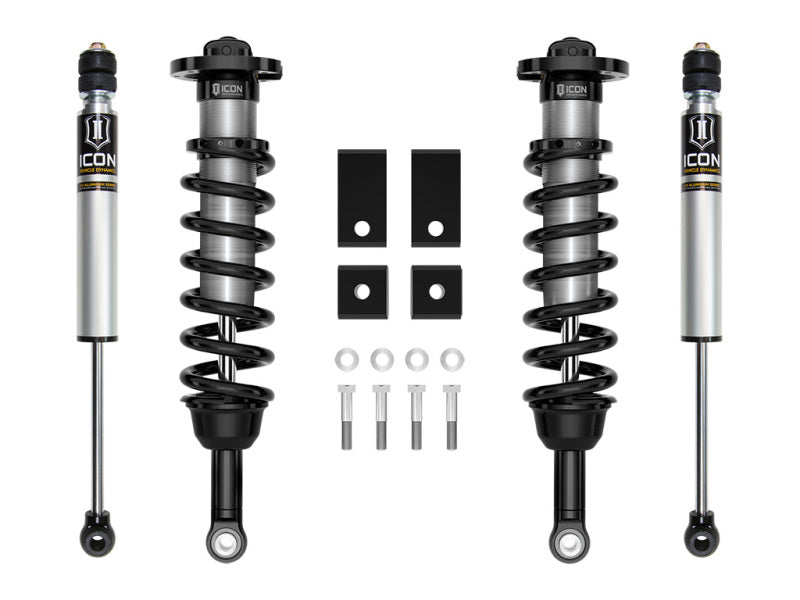

ICON K53193 Stage 3 Suspension System for 2022-2025 Toyota Tundra

This Stage 3 system features the 2022-2025 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Stage 3 includes a pair of 2.5 Series coilovers for 1.25-2.25” of front lift, greater performance, and 35” tire fitment. Front sway bar brackets are also included and 2.0 Series rear shocks to balance the tuning from front to rear. TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

• Adjustable front ride heights from 1.25-2.25” of front lift over stock when used with stock UCAs
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

Upgrade your 2022-2025 Toyota Tundra with the ICON K53193 Stage 3 Suspension System, engineered to improve ride quality, suspension control, and off-road capability. This vehicle-specific system includes 2.5 Series internal reservoir front coilovers with adjustable ride height from 1.25 to 2.25 inches over stock when used with the factory upper control arms. The increased shock body size and piston area, combined with ICON-specific shock length and valving, provide up to 40% more front wheel travel than stock while maintaining compatibility with original equipment components.
The Stage 3 system includes a matched pair of front coilovers, 2.0 Series aluminum rear shocks, and front sway bar drop brackets. The rear shocks are tuned to balance the performance of the front coilovers and are compatible with 0 to 1.5 inches of rear lift on models with rear coil springs without the TRD suspension package. On models equipped with the TRD suspension package or TRD Pro suspension, the rear shocks support 0 to 1 inch of rear lift. This setup is designed to accommodate larger, more aggressive wheel and tire combinations, including tires up to 35 inches, depending on vehicle configuration and clearance.
Installation is straightforward with a fully bolt-on design that requires no drilling, cutting, or welding. Included sway bar brackets help reduce bind in the factory sway bar links when the front suspension is lifted. ICON shock absorbers are fully rebuildable and re-tunable, supporting long-term serviceability and suspension performance. The ICON K53193 is a complete suspension upgrade for Tundra owners seeking increased travel, improved damping, and enhanced control on both paved roads and demanding trails.

Features:

• Adjustable front ride height from 1.25 to 2.25 inches of lift over stock with factory upper control arms

• Up to 40% more front wheel travel than stock without overstressing original equipment components

• 2.5 Series front coilovers with internal reservoirs for improved damping and vehicle control

• 2.0 Series aluminum rear shocks provide balanced tuning and enhanced suspension performance

• Designed to support tire fitment up to 35 inches, depending on vehicle configuration and clearance

• Fully bolt-on installation requires no drilling, cutting, or welding

• Included front sway bar drop brackets help reduce bind in factory sway bar links

• Fully rebuildable and re-tunable ICON shock absorbers

• Vehicle-specific suspension system for 2022-2025 Toyota Tundra

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
