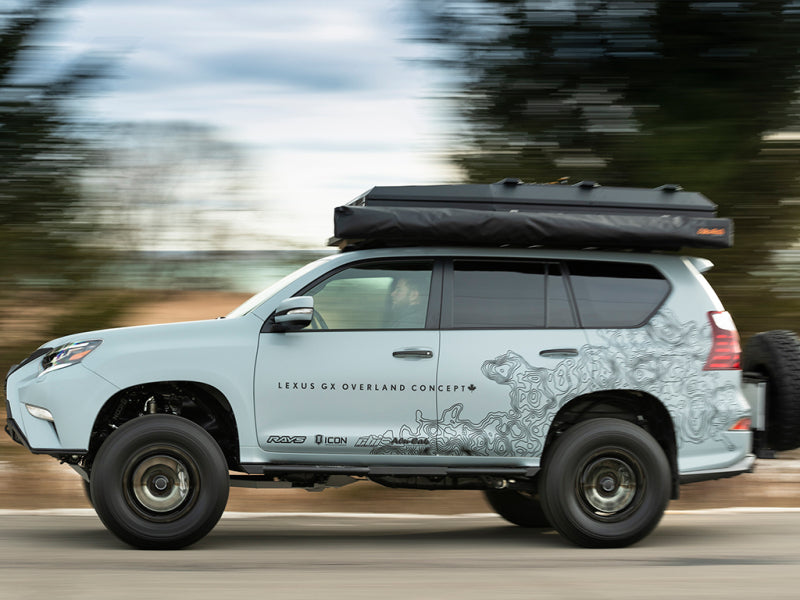

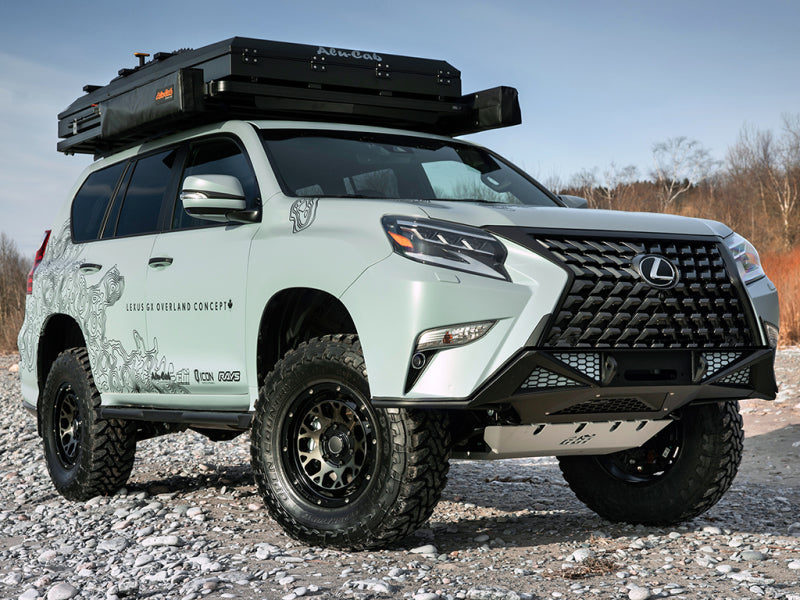

ICON K53187T Stage 7 Suspension System with Tubular UCA for 2010+ Lexus GX460, 0-3.5 in. Lift

The Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. CDC Valves are installed in front and rear shocks and allow for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature low maintenance multi-durometer bushings, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 7 SUSPENSION SYSTEM WITH TUBULAR UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular rear upper and lower links offer increased strength, improved geometry, and pinion angle adjustment
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

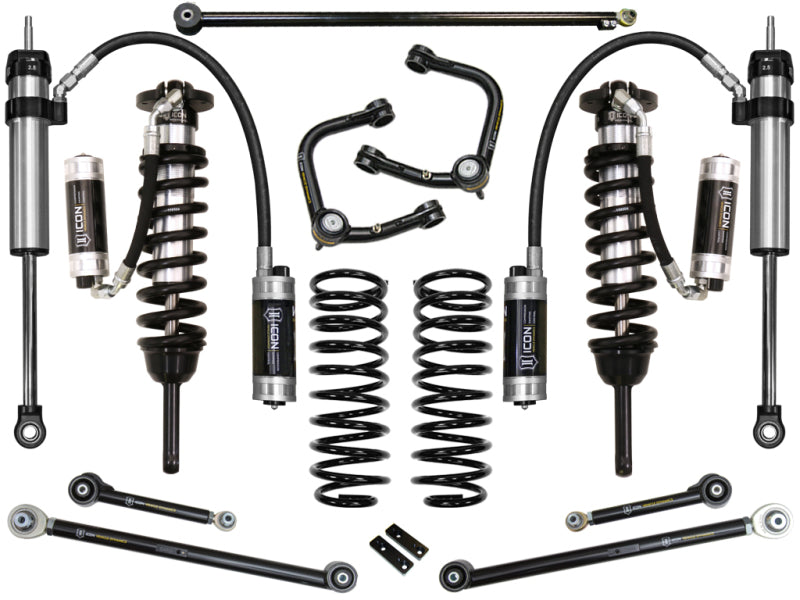

Upgrade the off-road capability, handling, and ride control of your 2010 and newer Lexus GX460 with the ICON Vehicle Dynamics K53187T Stage 7 suspension system. This vehicle-specific package combines extended-travel 2.5-inch coilover shocks with remote reservoirs, tubular steel Delta Joint upper control arms, ICON rear coil springs, and 2.5 Aluminum Series rear remote-reservoir shocks. The adjustable front coilovers provide 0-3.5 inches of lift over stock, supporting larger wheel and tire combinations while helping maintain improved suspension geometry and wheel alignment.
The front and rear shocks feature vehicle-specific valving and CDC Valve technology, allowing quick, tool-free compression adjustments for changing terrain, driving conditions, and vehicle cargo loads. Remote reservoirs help manage shock heat during demanding off-road use, while corrosion-resistant CAD-plated shock bodies and 7/8-inch shafts deliver durable performance. The 2.5 Aluminum Series rear shocks use one-piece impact-extruded aluminum cylinders for corrosion resistance and a consistent finish. FK rod-end bearings and 6061 aircraft-grade aluminum CNC-machined components further support long-term strength and precise suspension control.
Tubular steel rear upper and lower links provide greater strength than the original equipment components, along with low-maintenance multi-durometer bushings and pinion angle adjustment. The lower links are engineered to improve roll-steer geometry for more predictable handling on pavement and uneven terrain. An adjustable rear track bar helps correct rear-end alignment and maintains compatibility with vehicles equipped with KDSS. This bolt-on suspension system is designed for installation without cutting or welding. For KDSS-equipped vehicles, the front sway bar relocation brackets are not used, and certain model years may require trimming for front reservoir bracket clearance. Professional installation and alignment are recommended.

Features:

• Vehicle-specific Stage 7 suspension system for 2010 and newer Lexus GX460 models

• Adjustable front coilovers provide 0-3.5 inches of lift over stock

• Extended-travel 2.5-inch coilover shocks with remote reservoirs improve heat control and off-road performance

• Tubular steel upper control arms improve wheel travel and suspension geometry

• Patented Delta Joint combines ball-joint durability with uniball performance characteristics

• 2.5 Aluminum Series rear remote-reservoir shocks feature vehicle-specific valving

• CDC Valve technology enables quick, tool-free compression damping adjustments

• ICON rear coil springs provide approximately 2 inches of lift

• Tubular rear upper and lower links improve strength, geometry, and pinion angle adjustment

• Adjustable rear track bar supports rear alignment correction and KDSS compatibility

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• FK rod-end bearings provide durability and reduced deflection

• Bolt-on installation requires no cutting or welding

• 6061 aircraft-grade aluminum CNC-machined components

• Improves wheel travel, ride quality, and handling over stock suspension

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
