ICON K53186T Stage 6 Suspension System with Tubular UCA for 2010–Up Lexus GX460

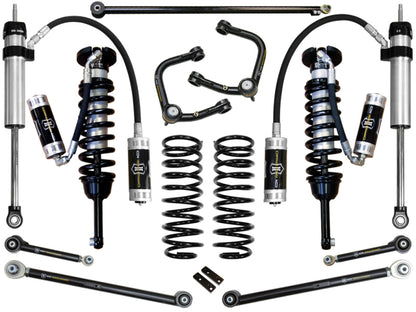

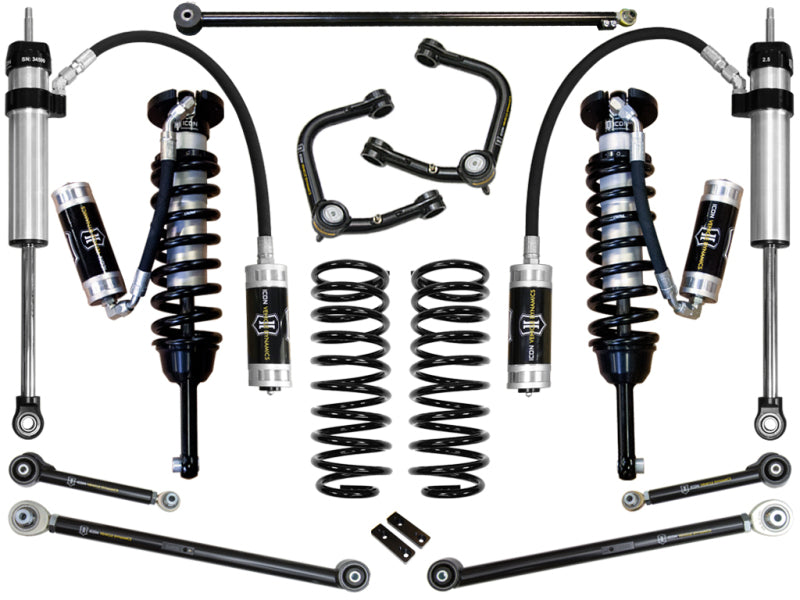

The Stage 6 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushings, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 6 SUSPENSION SYSTEM WITH TUBULAR UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Tubular rear upper and lower links offer increased strength, improved geometry, and pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade the on-road control and off-road capability of your 2010 and newer Lexus GX460 with the ICON Vehicle Dynamics K53186T Stage 6 suspension system. Designed for drivers who want increased wheel travel, improved suspension geometry, and more precise handling, this complete system combines vehicle-specific tuned shocks, adjustable coilovers, tubular steel upper control arms, rear suspension links, and an adjustable rear track bar. The system is engineered to provide up to 3.5 inches of lift over stock while supporting larger wheel and tire combinations.
The front suspension features extended-travel 2.5-inch coilover shocks with remote reservoirs for improved heat management and consistent performance during demanding off-road use. Height-adjustable coilovers allow the lift setting to be tailored to the vehicle and preferred setup. ICON tubular steel upper control arms use patented Delta Joint technology, combining the durability and weather resistance of a ball joint with the performance characteristics of a uniball. These arms improve alignment range and suspension geometry while allowing additional wheel travel. The corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components are built for long-term durability.
At the rear, ICON 2-inch lift coil springs work with 2.5 Aluminum Series remote reservoir shocks and vehicle-specific valving to balance damping from front to rear. Tubular steel upper and lower links provide greater strength than factory components, support pinion angle adjustment, and help establish proper roll steer geometry for confident handling. The adjustable rear track bar helps correct rear-end alignment and provides compatibility with KDSS-equipped vehicles. This bolt-on system requires no cutting or welding, although certain applications may require trimming for front reservoir bracket clearance. For KDSS-equipped vehicles, front sway bar relocation brackets are not used. Professional installation and alignment are recommended.

Features:

• Vehicle-specific tuned front and rear shocks improve damping, ride control, and off-road performance

• Adjustable 2.5-inch front coilovers with remote reservoirs provide 0–3.5 inches of lift over stock

• Tubular steel ICON upper control arms improve wheel travel and suspension geometry

• Patented Delta Joint combines ball-joint durability with uniball-style performance

• Tubular rear upper and lower links provide increased strength, geometry improvement, and pinion angle adjustment

• 2.5 Aluminum Series rear remote reservoir shocks feature 7/8-inch shafts and vehicle-specific valving

• Adjustable rear track bar supports KDSS compatibility and helps correct rear-end alignment

• Corrosion-resistant CAD-plated coilover bodies and FK rod end bearings enhance durability

• CNC-machined 6061 aircraft-grade aluminum components provide strength with reduced weight

• Bolt-on installation requires no cutting or welding

• Increased wheel travel and ride quality compared with stock suspension

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
