ICON K53185T Stage 5 Suspension System for 2010+ Lexus GX460, 0-3.5-Inch Lift with Tubular UCA

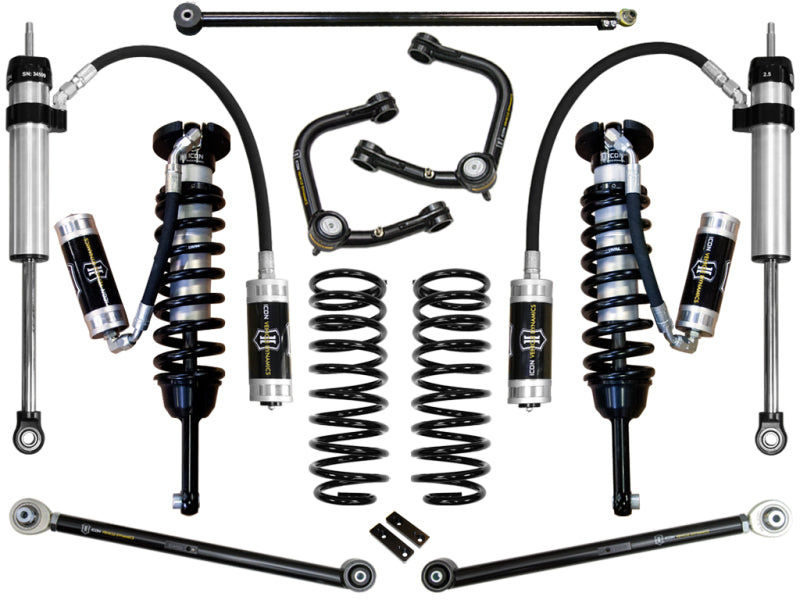

The Stage 5 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's tubular steel rear lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

The ICON Vehicle Dynamics K53185T Stage 5 suspension system is designed for 2010 and newer Lexus GX460 models seeking improved on-road control, increased wheel travel, and enhanced off-road capability. The system combines vehicle-specific tuned 2.5-inch extended-travel front coilovers with remote reservoirs and tubular steel upper control arms featuring ICON’s patented Delta Joint. Adjustable front coilovers provide 0 to 3.5 inches of lift over stock, supporting larger wheel and tire combinations while helping correct suspension geometry for more precise alignment and predictable handling.
At the rear, ICON 2-inch lift coil springs work with 2.5 Aluminum Series remote reservoir shocks and vehicle-specific valving to balance damping performance from front to rear. Tubular steel rear lower links provide greater strength than the original equipment components, while their adjustable design allows pinion angle optimization. Low-maintenance multi-durometer bushings and corrected roll steer geometry help improve handling on and off the road. An adjustable rear track bar is included to help maintain rear-end alignment and support compatibility with vehicles equipped with KDSS.
The ICON K53185T is engineered as a bolt-on suspension system, so cutting and welding are not required for installation. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide durable performance in demanding environments. The system is compatible with KDSS; front sway bar relocation brackets are not used on KDSS-equipped vehicles, and certain model years may require trimming for front reservoir bracket clearance. Verify vehicle application and installation requirements before ordering.

Features:

• Vehicle-specific tuned front and rear shocks provide controlled damping and improved ride quality

• Adjustable remote-reservoir front coilovers provide 0 to 3.5 inches of lift over stock

• Tubular steel upper control arms with patented Delta Joint improve wheel travel and suspension geometry

• Tubular rear lower links increase strength, correct roll steer geometry, and allow pinion angle adjustment

• ICON 2-inch lift rear coil springs help provide balanced suspension performance

• 2.5 Aluminum Series rear remote-reservoir shocks feature 7/8-inch shafts

• Adjustable rear track bar supports KDSS compatibility and helps correct rear-end alignment

• Corrosion-resistant CAD-plated coilover bodies and FK rod end bearings provide long-term durability

• CNC-machined 6061 aircraft-grade aluminum components resist demanding off-road use

• Bolt-on design requires no cutting or welding for installation

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
