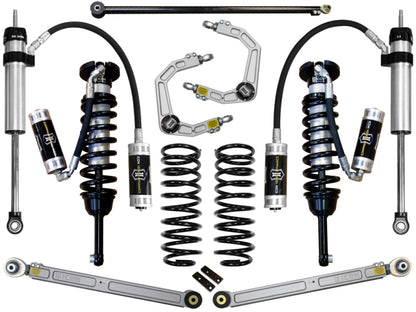

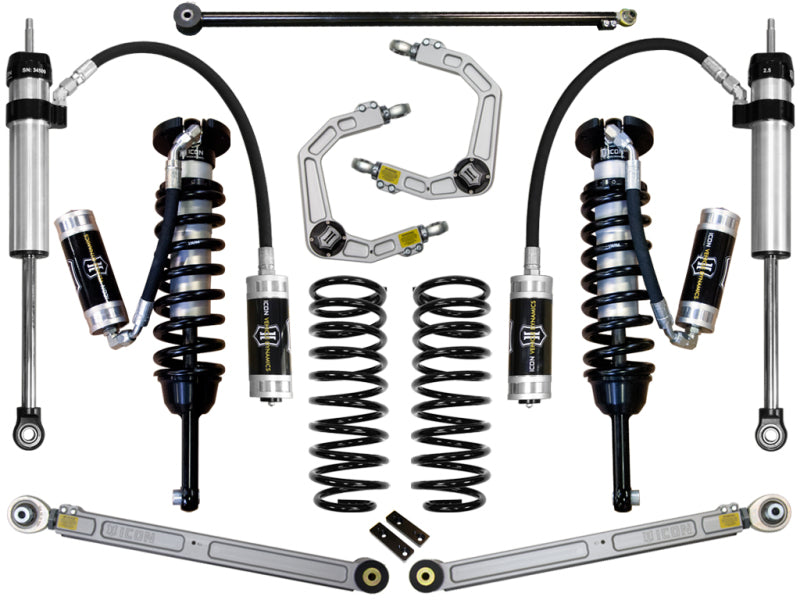

ICON K53185 Stage 5 Suspension System with Billet UCA for 2010+ Toyota 4Runner and FJ Cruiser

The Stage 5 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

Upgrade your 2010 and newer Toyota 4Runner or FJ Cruiser with the ICON Vehicle Dynamics K53185 Stage 5 suspension system. Designed for drivers who want improved on-road control and greater off-road capability, this system combines vehicle-specific tuned 2.5-inch coilover shocks with remote reservoirs, billet aluminum Delta Joint upper control arms, rear coil springs, and 2.5 Aluminum Series remote reservoir shocks. Adjustable front coilovers provide up to 3.5 inches of lift over stock, helping accommodate larger and more aggressive wheel and tire combinations while increasing suspension travel and ride quality.

The billet aluminum upper control arms improve suspension geometry and allow on-vehicle adjustment for precise front-end alignment. ICON’s patented Delta Joint combines the durability and weather resistance of a ball joint with performance characteristics similar to a uniball. Billet aluminum rear lower links provide increased strength, improved articulation, and on-vehicle pinion angle adjustment. The included adjustable rear track bar helps correct rear-end alignment and maintains compatibility with vehicles equipped with KDSS.

Vehicle-specific shock valving balances damping performance from front to rear, while remote reservoirs improve heat management during demanding driving conditions. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components provide dependable performance and long-term durability. The bolt-on design requires no cutting or welding for installation. Refer to the application notes before installation, as certain model years may require trimming for front reservoir bracket fitment. Front sway bar relocation brackets are not used on KDSS-equipped vehicles.

Features:

• Vehicle-specific tuned front and rear shocks improve damping, control, and ride quality
• Adjustable remote-reservoir coilovers provide 0 to 3.5 inches of lift over stock
• Billet aluminum Delta Joint upper control arms increase wheel travel and improve suspension geometry
• Patented Delta Joint combines ball-joint durability with uniball-style performance characteristics
• Billet rear lower links provide increased strength, improved articulation, and on-vehicle pinion angle adjustment
• Adjustable rear track bar helps correct rear-end alignment and supports KDSS compatibility
• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts
• 2.5 Aluminum Series rear remote-reservoir shocks with 7/8-inch shafts
• FK rod end bearings provide extended service life and minimal deflection
• CNC-machined 6061 aircraft-grade aluminum components
• Bolt-on installation requires no cutting or welding
• Increased wheel travel and improved ride quality compared with stock suspension

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
