ICON K53182 Stage 2 Suspension System for 2010+ Lexus GX460, 0-3.5 in. Lift

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. 2010-UP LEXUS GX460 0-3.5" LIFT STAGE 2 SUSPENSION SYSTEM WITH BILLET UCA APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Included adjustable rear track bar ensures KDSS compatibility
• 6061 aircraft grade aluminum CNC machined components
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• Increased wheel travel and ride quality over stock
• Adjustable coilovers provide 0-3.5" of lift height

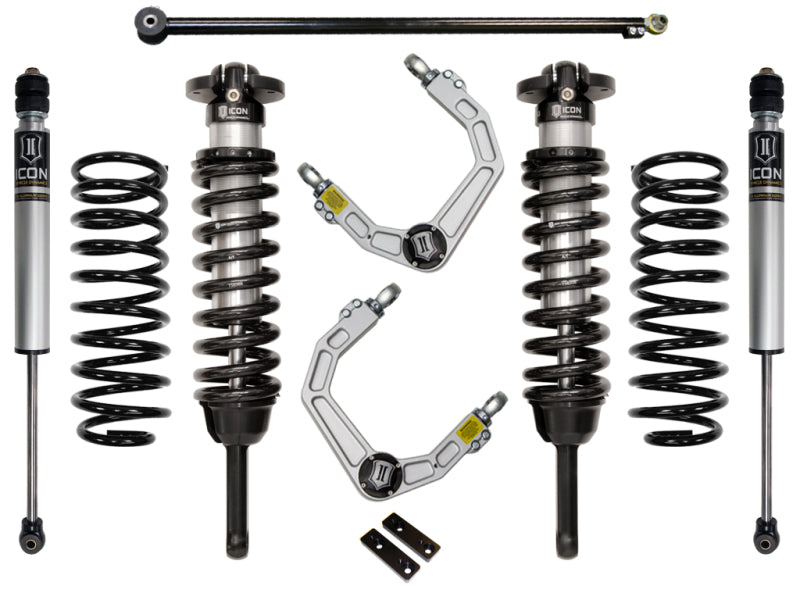

Upgrade the suspension performance of your 2010 and newer Lexus GX460 with the ICON K53182 Stage 2 Suspension System. Designed for vehicles with 0-3.5 inches of lift, this bolt-on system improves wheel travel, ride quality, suspension geometry, and overall handling without requiring cutting or welding. The system is compatible with KDSS and includes an adjustable rear track bar for proper fitment and suspension control.
The included ICON upper control arms feature the patented Delta Joint, which combines the durability and weather resistance of a traditional ball joint with the articulation and performance characteristics of a uniball. A zinc-plated housing provides corrosion resistance, while the grease seal helps protect the joint from harmful contaminants. Its metal-on-metal construction and greaseable design promote long service life and quiet operation, making it well suited for daily-driven and off-road applications.
Vehicle-specific tuned front and rear shocks provide controlled damping and improved suspension response. The front coilover shocks use corrosion-resistant CAD-plated bodies, 7/8-inch shafts, and adjustable lift settings from 0 to 3.5 inches. Rear 2.0 Aluminum Series shocks use an internal floating piston design with 5/8-inch shafts. CNC-machined 6061 aircraft-grade aluminum components and FK rod end bearings further support strength, durability, and precise suspension movement.
Application Note #46: This suspension system is compatible with KDSS. Front sway bar relocation brackets are not used on KDSS-equipped vehicles. Certain model years may require trimming for proper front reservoir bracket fitment. Verify vehicle application and installation requirements before purchase.

Features:

• ICON upper control arms provide additional wheel travel when paired with extended-travel coilovers while improving suspension geometry

• Patented Delta Joint combines ball joint durability and weather resistance with uniball-style articulation

• Vehicle-specific tuned front and rear shocks deliver improved damping and suspension control

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• FK rod end bearings provide extended service life and minimal deflection

• Bolt-on installation requires no cutting or welding

• Adjustable rear track bar supports compatibility with KDSS-equipped vehicles

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• 2.0 Aluminum Series rear IFP shocks feature 5/8-inch shafts

• Improves wheel travel and ride quality over the factory suspension

• Adjustable coilovers provide 0-3.5 inches of lift

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
