ICON K53163 RXT Stage 3 Rear Suspension System for 2005-2023 Toyota Tacoma

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups. The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON RXT Rear Shock: 2.5 Aluminum Series RXT shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel

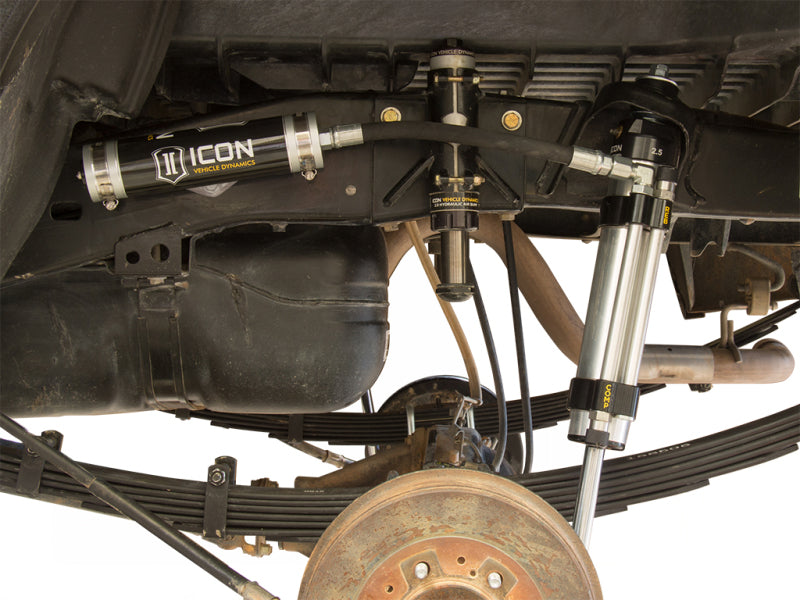

• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location

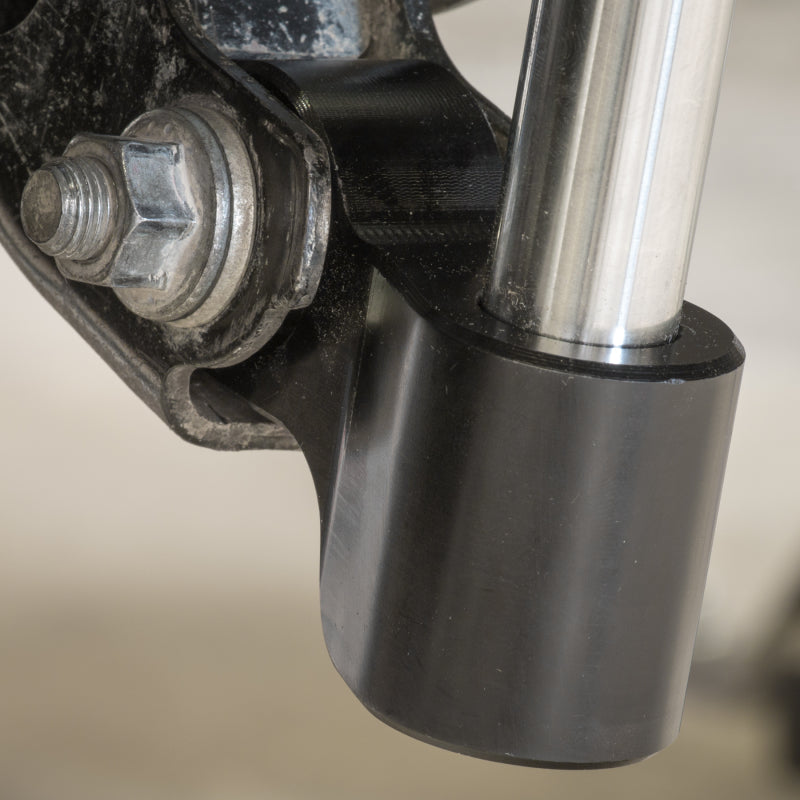

• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON RXT Rear Shock: Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustment
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

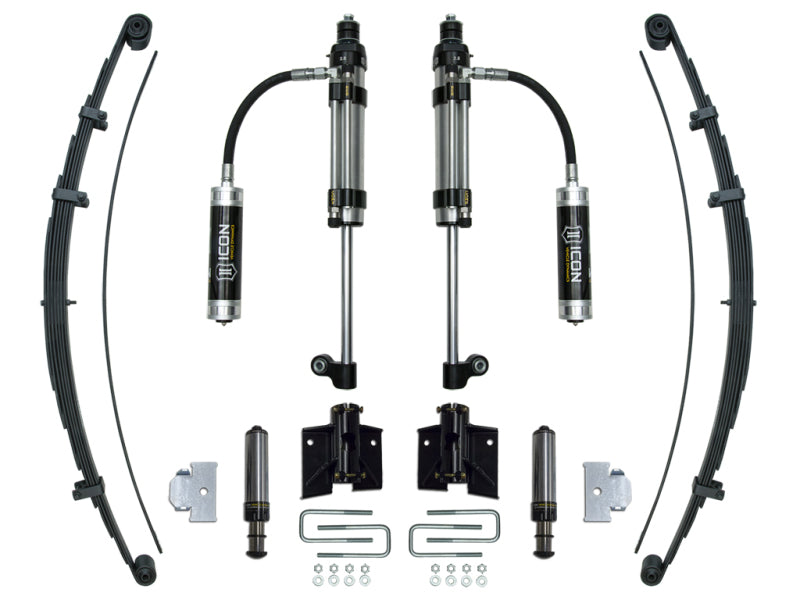

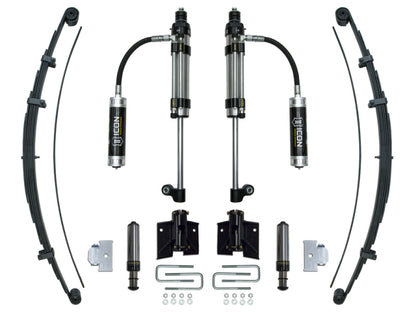

The ICON K53163 RXT Stage 3 Rear Suspension System is engineered for 2005-2023 Toyota Tacoma applications requiring improved off-road capability, control, and suspension travel. Developed through extensive accelerated testing, this complete system addresses common limitations in original equipment components and is designed for demanding use ranging from high-speed desert driving to remote overland expeditions. The package combines ICON 2.5 Aluminum Series rear shocks, a multi-rate leaf spring system, and hydraulic rear bump stops for a balanced combination of performance, durability, and adjustability.
The RXT rear shocks feature one-piece impact-extruded aluminum cylinders for corrosion resistance and consistent appearance, along with 10-inch aluminum reservoirs that provide increased oil and nitrogen volume for stable damping as temperatures rise. Omega Series two-tube bypass technology offers 28 compression and rebound adjustment settings, while vehicle-specific tuning, a side-mounted lower eyelet, and fully rebuildable and revalvable construction help optimize performance. The included multi-rate leaf springs provide three user-adjustable spring rates to accommodate different vehicle configurations and use galvanized separators, leaf-tip inserts, and a military-wrap front eyelet for reduced friction, quieter operation, improved comfort, and enhanced durability.
The ICON hydraulic rear bump stop kit mounts directly to the factory bump stop location for a straightforward installation. Its position-sensitive design improves bottom-out resistance and reduces rear-end kick, while the vehicle-specific tune promotes smooth engagement and controlled ride quality. Additional features include a heavy-duty CNC-machined nitro steel shaft, replaceable noise-reducing striker pad, corrosion-resistant multi-stage plated body, double-sealed high-pressure Schrader valve, and fully serviceable construction. The bump stops provide 2.5 inches of travel and operate across a 50-250 PSI range.
This ICON RXT system is designed to provide up to a 20% increase in wheel travel when the complete system is installed as intended. Installation of the complete ICON system is required to achieve the advertised wheel travel; combining these components with parts from other manufacturers may prevent the stated performance and could cause damage. Direct bolt-in mounting at the original equipment locations helps simplify installation while retaining a vehicle-specific fit and function.

Features:

• Designed for 2005-2023 Toyota Tacoma applications

• Complete RXT Stage 3 rear suspension system with rear shocks, multi-rate leaf springs, and hydraulic bump stops

• Up to 20% increased wheel travel when the complete ICON system is installed

• 2.5 Aluminum Series rear shocks with impact-extruded aluminum cylinders

• 10-inch aluminum reservoirs provide increased oil and nitrogen volume for consistent damping

• Omega Series two-tube bypass provides 28 compression and rebound adjustment settings

• Vehicle-specific shock tuning improves damping control and ride quality

• Fully rebuildable and revalvable rear shocks

• Three user-adjustable leaf spring rates accommodate varied vehicle configurations

• Galvanized leaf separators improve corrosion resistance and reduce friction

• Leaf-tip inserts help reduce noise and improve ride comfort

• Military-wrap front eyelet improves leaf spring durability

• Hydraulic bump stops feature position-sensitive bottom-out resistance

• 2.5-inch travel hydraulic bump stops reduce rear-end kick

• Direct bolt-in installation at factory suspension locations

• Vehicle-specific bump stop tuning promotes smooth engagement

• Double-sealed Schrader valve operates from 50 to 250 PSI

• Corrosion-resistant multi-stage plated bump stop body

• Heavy-duty 1.25-inch CNC-machined nitro steel shaft

• Replaceable noise-reducing striker pad

• Fully serviceable hydraulic bump stops
