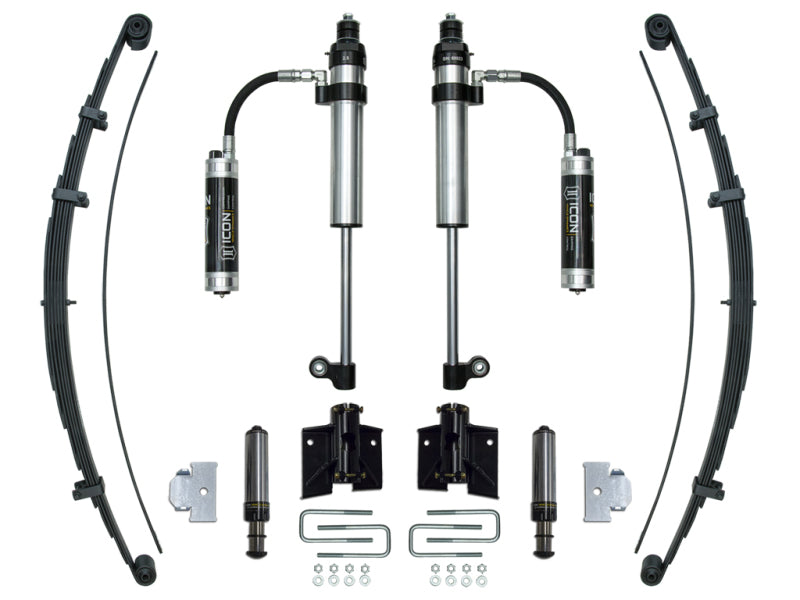

ICON K53162 RXT Stage 2 Rear Suspension System for 2005-2023 Toyota Tacoma

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups. The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON RXT Rear Shock: CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability

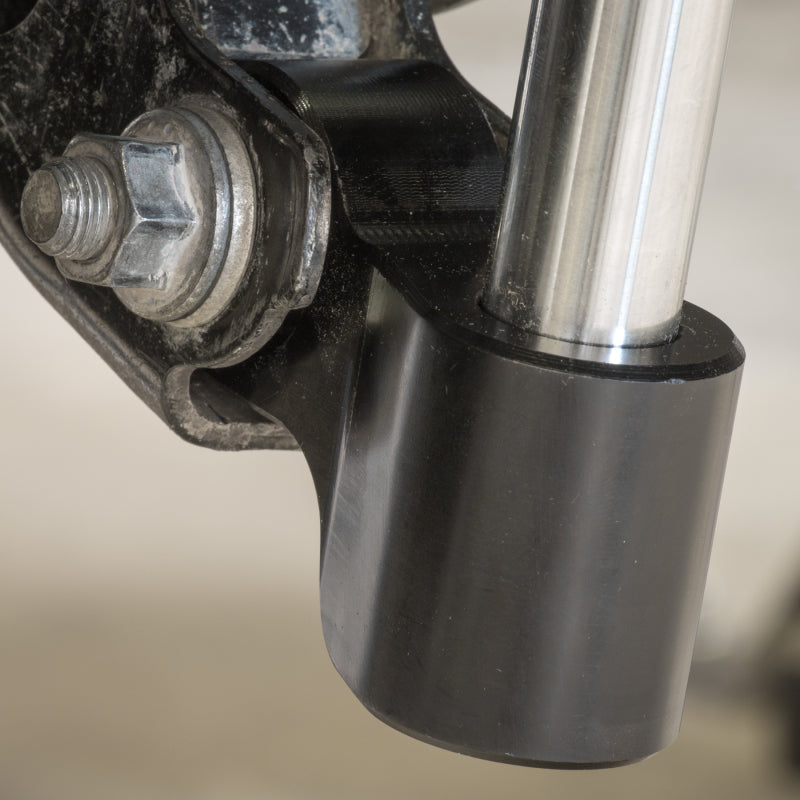

• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

The ICON K53162 RXT Stage 2 Rear Suspension System is engineered for 2005-2023 Toyota Tacoma applications and designed to improve performance in high-speed desert terrain, technical trails, and off-grid travel. Developed through extensive accelerated testing, this complete rear suspension system addresses key limitations in the original equipment components while providing a 20% increase in wheel travel when installed as a complete ICON system. The package combines ICON 2.5 Aluminum Series rear shocks, RXT multi-rate leaf springs, and an ICON hydraulic rear bump stop kit for improved control, ride quality, and bottom-out resistance.

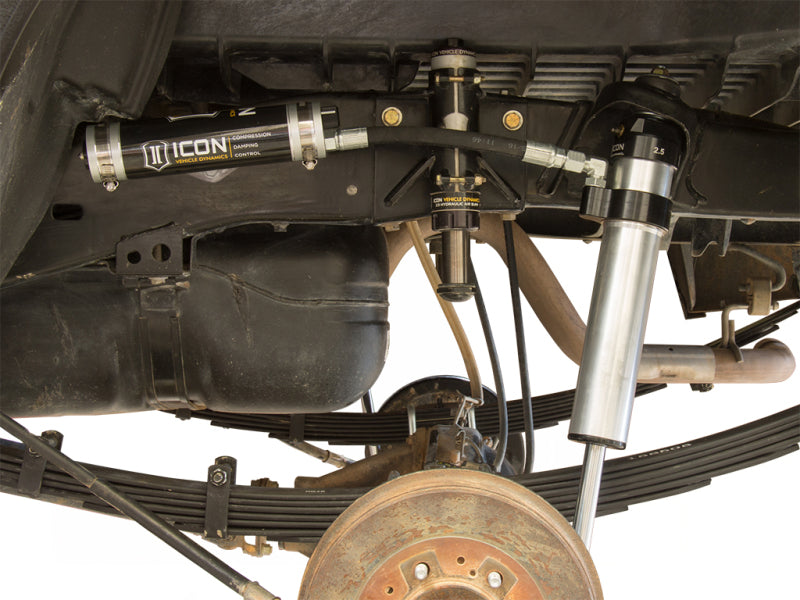

The vehicle-specific RXT rear shocks feature 10-inch aluminum reservoirs that provide increased oil and nitrogen volume for consistent damping as temperatures rise. Their CDC Valve technology offers 10 compression damping settings for quick adjustments, while the side-mounted lower eyelets increase suspension travel using the factory mounting locations. Corrosion-resistant, impact-extruded aluminum bodies and 7/8-inch shafts support demanding off-road use, and the shocks are fully rebuildable and revalveable. The RXT multi-rate leaf springs provide three user-adjustable spring rates to accommodate different vehicle configurations, with galvanized leaf separators, leaf tip inserts, and military-wrap front eyelets for reduced friction, improved comfort, and added durability.
The ICON hydraulic rear bump stop kit bolts directly into the original equipment locations for a straightforward installation. Its 2.5-inch travel bump stops use position-sensitive technology to increase bottom-out resistance, reduce rear-end kick, and support a smoother ride. Vehicle-specific tuning, a multi-stage CAD-plated body, a heavy-duty 1 1/4-inch CNC-machined nitro steel shaft, and a replaceable noise-reducing striker pad enhance performance and serviceability. Application Note #87: Installation of the complete ICON system is required to achieve the advertised wheel travel. Use of components from other manufacturers may prevent the system from delivering its intended performance and could result in unknown damage.

Features:

• Complete ICON RXT Stage 2 rear suspension system for 2005-2023 Toyota Tacoma applications

• Increases wheel travel by up to 20% when the complete ICON system is installed

• Includes 2.5 Aluminum Series RXT rear shocks, multi-rate leaf springs, and hydraulic rear bump stops

• Vehicle-specific tuned shocks provide increased damping and oil volume for demanding off-road use

• CDC Valve technology provides 10 settings of quick and easy compression damping adjustment

• 10-inch aluminum reservoirs support consistent damping as shock temperatures increase

• Side-mounted lower eyelets increase suspension travel while using factory mounting locations

• Fully rebuildable and revalveable shocks with corrosion-resistant aluminum bodies and 7/8-inch shafts

• Three user-adjustable leaf spring rates accommodate varied vehicle configurations

• Galvanized leaf separators reduce friction and help resist corrosion

• Leaf tip inserts reduce noise and improve ride comfort

• Military-wrap front eyelets enhance leaf spring durability

• Direct bolt-in installation at original equipment spring and bump stop locations

• Hydraulic bump stops provide 2.5 inches of travel and reduce rear-end kick

• Position-sensitive bump stop technology increases bottom-out resistance

• Vehicle-specific bump stop tuning supports smooth engagement and improved ride quality

• Double-sealed high-pressure Schrader valve operates from 50 to 250 PSI

• Multi-stage CAD-plated bump stop body provides corrosion resistance

• Heavy-duty 1 1/4-inch CNC-machined nitro steel shaft

• Replaceable noise-reducing striker pad and fully serviceable bump stops

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
