ICON K53161 RXT Stage 1 Rear Suspension System for 2005-2017 Toyota Tacoma

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-UP Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups. The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate. APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.

• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

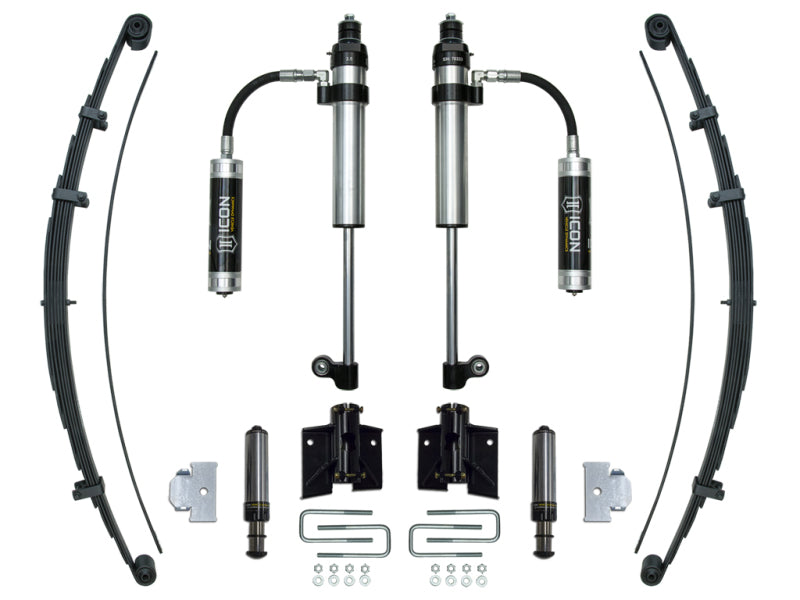

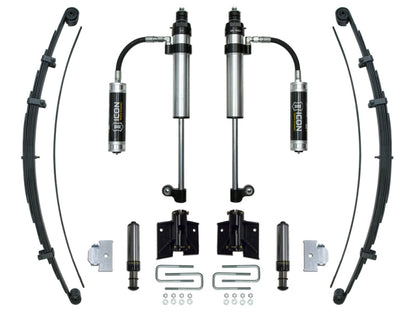

The ICON K53161 RXT Stage 1 Rear Suspension System is engineered for 2005-2017 Toyota Tacoma models seeking improved off-road performance, increased wheel travel, and adjustable suspension tuning. Developed through extensive accelerated testing, this complete rear suspension system addresses limitations in original equipment components and is designed for demanding use ranging from high-speed desert driving to remote overland travel. The system combines ICON 2.5 Aluminum Series rear shocks, RXT multi-rate leaf springs, and an ICON hydraulic rear bump stop kit for a balanced, vehicle-specific suspension upgrade.
The RXT multi-rate leaf springs provide three user-adjustable spring rates to accommodate different vehicle configurations and cargo loads. When installed with the matching RXT rear shocks, the system can increase rear wheel travel by up to 20% without sacrificing up-travel. Galvanized leaf separators, leaf tip inserts, and a military-wrap front eyelet help reduce friction and noise while supporting durability. The leaf springs install directly into the original equipment spring locations for a straightforward installation.
ICON RXT rear shocks feature corrosion-resistant anodized aluminum bodies, 7/8-inch shafts, and 10-inch aluminum reservoirs that provide increased oil and nitrogen volume for consistent damping as temperatures rise. A side-mounted lower eyelet allows additional travel while retaining the factory mounting location. The shocks are vehicle-specific, fully rebuildable, and revalveable. The hydraulic rear bump stops use position-sensitive technology to increase bottom-out resistance, reduce rear-end kick, and provide smooth engagement with a vehicle-specific tune. They also include a 2.5-inch travel design, serviceable construction, a replaceable noise-reducing striker pad, and a double-sealed Schrader valve with an operating range of 50-250 PSI.
Application Note: Installation of the complete ICON system is required to achieve the advertised wheel travel. Using components from other manufacturers may prevent the stated performance and could cause unknown damage.

Features:

• Complete rear suspension system designed for 2005-2017 Toyota Tacoma models

• Up to 20% increase in rear wheel travel when the complete ICON system is installed

• Three user-adjustable spring rates accommodate different vehicle configurations

• ICON 2.5 Aluminum Series rear shocks feature 10-inch aluminum reservoirs for consistent damping

• Vehicle-specific shock tuning provides increased damping and oil volume

• Side-mounted lower shock eyelet increases travel while retaining the factory mounting location

• Fully rebuildable and revalveable rear shocks with corrosion-resistant anodized aluminum bodies

• RXT multi-rate leaf springs install directly into the original equipment spring locations

• Galvanized leaf separators reduce friction and support corrosion resistance

• Leaf tip inserts reduce noise and improve ride comfort

• Military-wrap front eyelet increases leaf spring durability

• Hydraulic rear bump stops use position-sensitive technology to improve bottom-out resistance

• Vehicle-specific bump stop tuning promotes smooth engagement and improved ride quality

• Direct bolt-in bump stop design simplifies installation at the original equipment location

• Double-sealed Schrader valve operates from 50-250 PSI

• Multi-stage corrosion-resistant bump stop body supports long-term durability

• Heavy-duty CNC-machined nitro steel shaft and replaceable noise-reducing striker pad

• Fully serviceable hydraulic rear bump stop kit
