ICON K53156 RXT Stage 2 Rear Suspension System for 2007-2021 Toyota Tundra

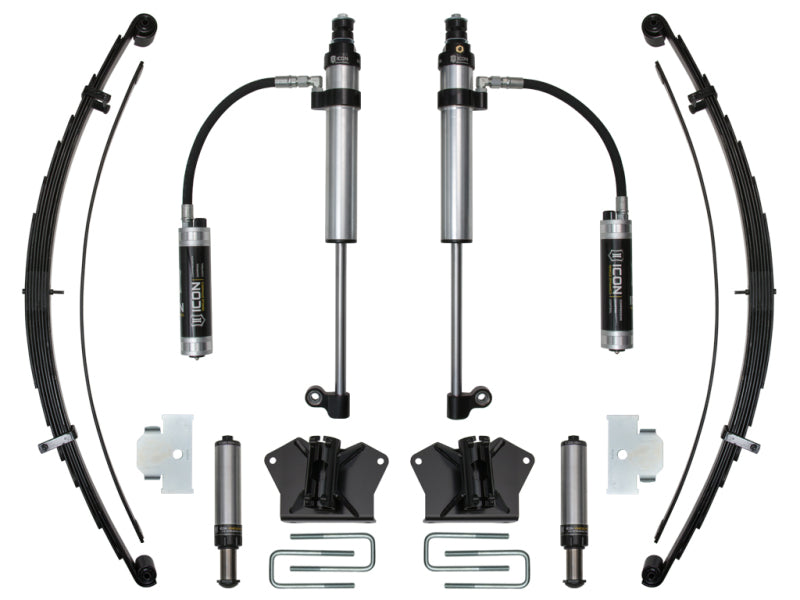

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups. 2007-2021 TUNDRA RXT STAGE 2 SYSTEM Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON RXT Rear Shock: CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts

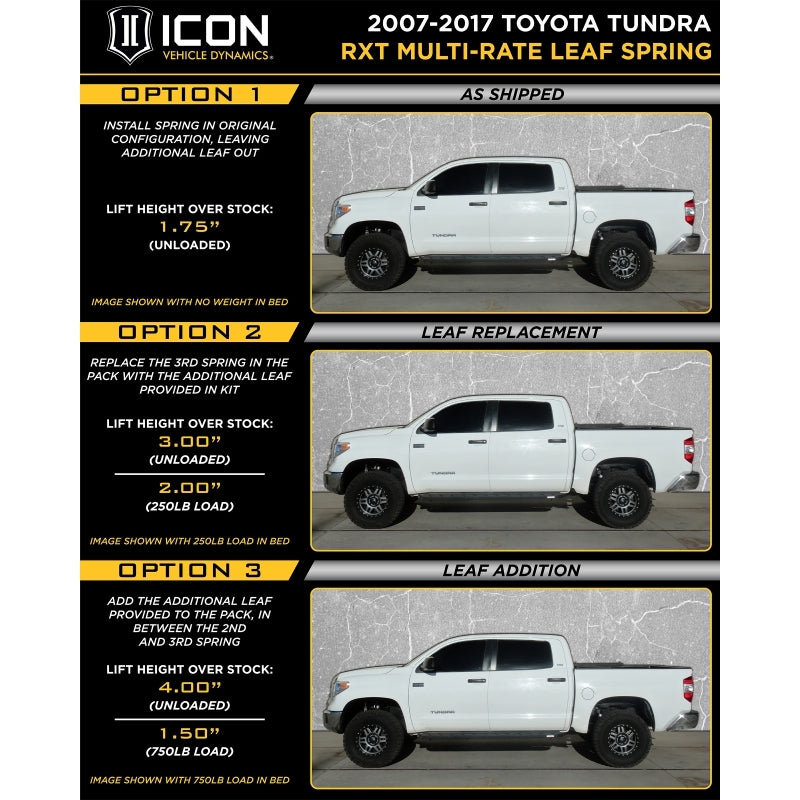

• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

The ICON K53156 RXT Stage 2 Rear Suspension System is engineered for 2007-2021 Toyota Tundra trucks seeking improved ride quality, suspension travel, and off-road performance. Developed through ICON’s “ICON1K” accelerated research and development program, this system was tested under demanding desert and expedition conditions to identify and address the limitations of original equipment components. The complete package combines ICON RXT multi-rate leaf springs, hydraulic rear bump stops, and vehicle-specific RXT 2.5 Aluminum Series rear shocks for a balanced suspension upgrade.
The RXT multi-rate leaf springs provide three user-adjustable spring rates to accommodate different vehicle configurations, cargo loads, and aftermarket equipment. When paired with the RXT shocks, the system can increase wheel travel by up to 20 percent without sacrificing available up-travel. Galvanized leaf separators help reduce friction and corrosion, while leaf tip inserts improve ride comfort and reduce operating noise. Military-wrap front eyelets add durability, and the leaf springs install directly in the original equipment mounting locations.
The hydraulic rear bump stop kit bolts directly into the factory bump stop locations for a straightforward installation. Its position-sensitive design improves bottom-out resistance and reduces rear-end kick, while vehicle-specific tuning promotes smooth engagement and controlled performance. The fully serviceable bump stops feature a heavy-duty 1.25-inch CNC-machined nitro steel shaft, corrosion-resistant plated body, replaceable noise-reducing striker pad, and an operating range of 50-250 PSI.
The RXT rear shocks use 10-inch aluminum reservoirs to increase oil and nitrogen volume for consistent damping as temperatures rise. CDC Valve technology provides 10 compression damping settings for quick adjustment, and the unique side-mounted lower eyelet increases travel while retaining the factory mounting location. Corrosion-resistant aluminum bodies, 7/8-inch shafts, and fully rebuildable, revalveable construction support long-term serviceability. This system is recommended for use with 35-inch by 12.50-inch tires; larger tires may require fender trimming or additional modifications.

Features:

• ICON RXT multi-rate leaf springs with three user-adjustable spring rates

• Up to 20 percent more wheel travel when used with RXT shocks

• Hydraulic rear bump stops with position-sensitive bottom-out resistance

• Direct bolt-in installation using original equipment mounting locations

• Vehicle-specific RXT 2.5 Aluminum Series rear shocks

• 10-inch aluminum shock reservoirs for consistent damping performance

• CDC Valve technology with 10 compression damping settings

• Side-mounted lower shock eyelets for increased suspension travel

• Galvanized leaf separators for reduced friction and improved corrosion resistance

• Leaf tip inserts for reduced noise and improved ride comfort

• Military-wrap front leaf spring eyelets for added durability

• Heavy-duty 1.25-inch CNC-machined nitro steel bump stop shafts

• Corrosion-resistant plated bump stop bodies

• Replaceable noise-reducing striker pads

• Bump stop operating range of 50-250 PSI

• Fully serviceable hydraulic bump stops

• Fully rebuildable and revalveable rear shocks

• Recommended for 35-inch by 12.50-inch tires
