ICON K53155 RXT Stage 1 Rear Suspension System for 2007-2021 Toyota Tundra

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all-new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups. 2007-2021 TOYOTA TUNDRA RXT STAGE 1 SYSTEM Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance

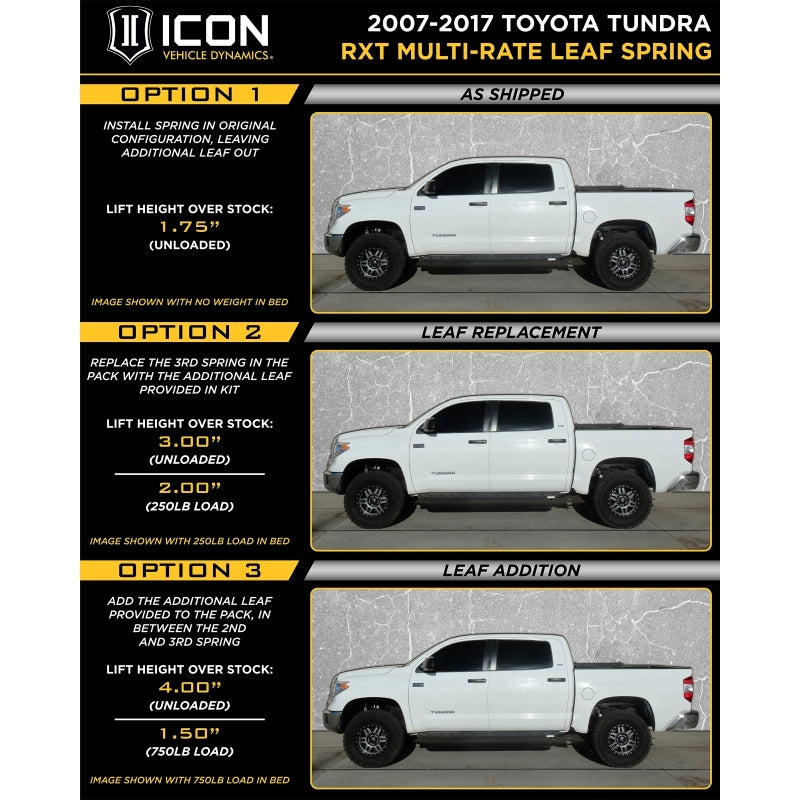

• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
• ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

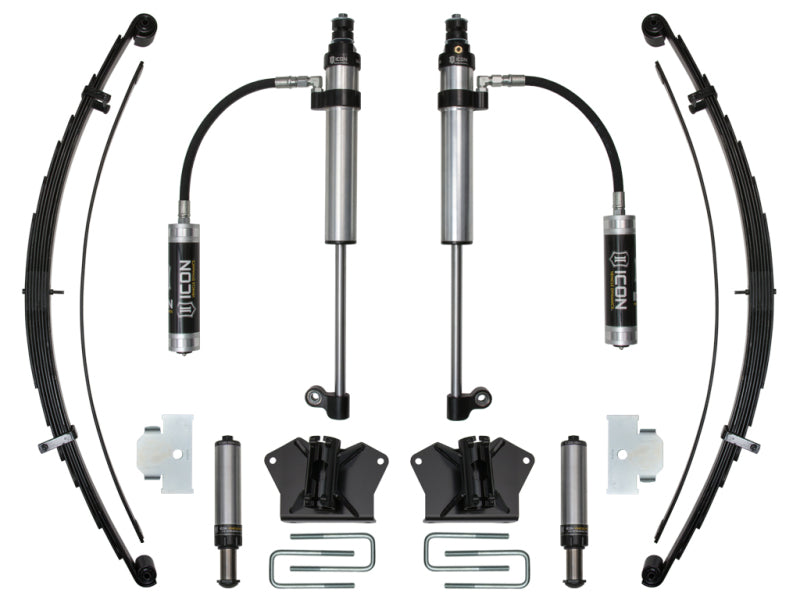

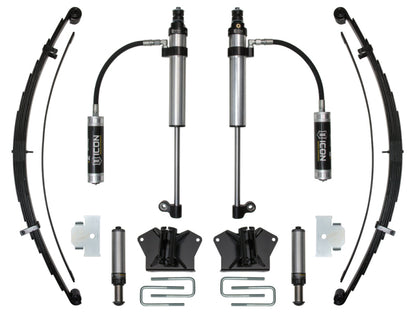

The ICON K53155 RXT Stage 1 Rear Suspension System is engineered for 2007-2021 Toyota Tundra models seeking improved ride quality, suspension control, and off-road capability. Developed through ICON’s ICON1K accelerated testing program, this system was evaluated in demanding desert and expedition environments to address limitations in factory rear suspension components. The complete package combines ICON RXT multi-rate leaf springs, hydraulic rear bump stops, and vehicle-specific RXT 2.5 Aluminum Series rear shocks for a balanced setup designed to handle high-speed off-road driving and varying vehicle configurations.
The RXT multi-rate leaf springs can provide up to 20% more wheel travel than stock when paired with the RXT shocks, while preserving useful up-travel. Three user-adjustable spring rates allow the suspension to be tailored for different vehicle builds, cargo loads, and equipment. Galvanized leaf separators help reduce friction and resist corrosion, while leaf tip inserts improve ride comfort and reduce operating noise. Military-wrap front eyelets enhance durability, and the direct bolt-in design uses the factory spring locations for a straightforward installation.
ICON’s hydraulic rear bump stop kit adds position-sensitive bottom-out resistance and is tuned specifically for the Toyota Tundra. The 2.5-inch travel bump stops help reduce rear-end kick and improve suspension control during harsh compression events. A heavy-duty 1.25-inch CNC-machined nitro steel shaft, corrosion-resistant CAD-plated body, replaceable striker pad, and double-sealed high-pressure Schrader valve support long-term serviceability. The bump stops operate from 50 to 250 PSI and bolt directly into the factory bump stop locations.
The included RXT rear shocks use 10-inch aluminum reservoirs to provide increased oil and nitrogen volume for consistent damping as temperatures rise. Their side-mounted lower eyelets help maximize suspension travel while retaining the factory mounting location, and the fully rebuildable, revalveable design supports future tuning and servicing. The system is recommended for use with 35-inch by 12.50-inch tires; larger tires may require fender trimming or additional vehicle modifications.

Features:

• Designed for 2007-2021 Toyota Tundra applications

• Provides up to 20% increased wheel travel when used with RXT shocks

• Includes ICON RXT multi-rate leaf springs with three user-adjustable spring rates

• Includes vehicle-specific hydraulic rear bump stops with 2.5 inches of travel

• Includes RXT 2.5 Aluminum Series rear shocks with 10-inch aluminum reservoirs

• ICON1K tested for off-road performance, strength, durability, and tuning

• Direct bolt-in installation at factory spring and bump stop locations

• Side-mounted shock lower eyelets increase travel while using factory mounting locations

• Position-sensitive bump stops improve bottom-out resistance and reduce rear-end kick

• Galvanized leaf separators reduce friction and help resist corrosion

• Leaf tip inserts reduce noise and improve ride comfort

• Military-wrap front eyelets improve leaf spring durability

• Heavy-duty 1.25-inch CNC-machined nitro steel bump stop shafts

• CAD-plated bump stop bodies provide corrosion resistance

• Double-sealed high-pressure Schrader valves

• Replaceable noise-reducing striker pads

• Fully serviceable hydraulic bump stops

• Bump stop operating range of 50-250 PSI

• Fully rebuildable and revalveable rear shocks

• Recommended for 35-inch by 12.50-inch tires
