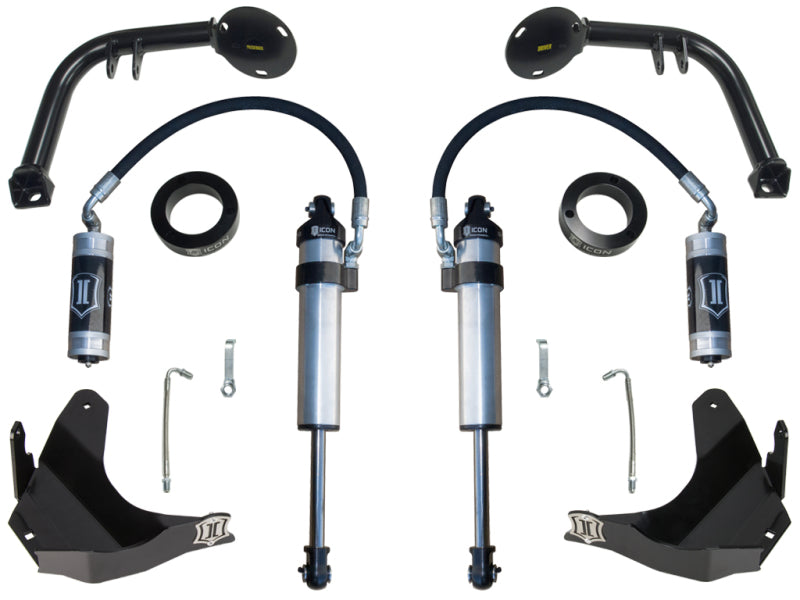

ICON K53125 S2 Stage 1 Secondary Shock System for 2016+ Toyota Tacoma

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road. The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup, effectively doubling shock damping ability. TECH NOTE: Compatible with 0-2.75" of froint lift on most Tacoma submodels. Compatible with 0-1.25" of front lift on TRD Pro.

• 2.5 Aluminum Series Secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• Mostly bolt-on design makes for straightforward install
• Drastically improves vehicle damping ability off-road
• Shocks are fully rebuildable and revalveable
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width

The ICON Vehicle Dynamics K53125 S2 Stage 1 Secondary Shock System is designed for 2016 and newer Toyota Tacoma models equipped with an ICON coilover setup. By adding a secondary shock to the existing front suspension, this system increases damping capability, oil volume, and off-road control without changing the vehicle’s factory track width. It uses the factory lower control arms and is engineered to improve stability both on the trail and on the street.
The system combines billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates with integrated shock mounts for a durable, vehicle-specific installation. Its mostly bolt-on design avoids major modifications to the frame or factory suspension components, while the fully removable construction allows the system to be transferred to another compatible vehicle. The skid plates may also be installed independently to help protect the factory lower control arms from trail hazards.
The included ICON 2.5 Aluminum Series secondary shocks feature one-piece impact-extruded aluminum cylinders for corrosion resistance and a consistent finish. These shocks are fully rebuildable and revalveable, allowing for long-term serviceability and tuning flexibility. The vehicle-specific damping calibration is intended to provide improved suspension performance during demanding off-road use. Compatibility includes most Tacoma submodels with 0 to 2.75 inches of front lift and TRD Pro models with 0 to 1.25 inches of front lift. Professional installation and verification of vehicle configuration are recommended before purchase.

Features:

• Vehicle-specific secondary shock system for 2016 and newer Toyota Tacoma models

• Compatible with most Tacoma submodels using 0 to 2.75 inches of front lift

• Compatible with TRD Pro models using 0 to 1.25 inches of front lift

• Adds secondary shocks to an existing ICON coilover setup

• ICON 2.5 Aluminum Series shocks feature one-piece impact-extruded aluminum cylinders

• Vehicle-specific shock tuning increases damping capability and oil volume

• Mostly bolt-on design supports a straightforward installation

• Fully rebuildable and revalveable shocks provide long-term serviceability

• Uses factory lower control arms

• Maintains original equipment track width

• Improves off-road damping and on-road vehicle stability

• Steel skid plates with integrated shock mounts help protect factory lower control arms

• Modular and removable design does not require major frame or factory suspension alterations

Compatible With
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
